- Leviton Industrial Pin & Sleeve Splashproof 2P3W Receptacle 16A 200-250V SP316R6
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

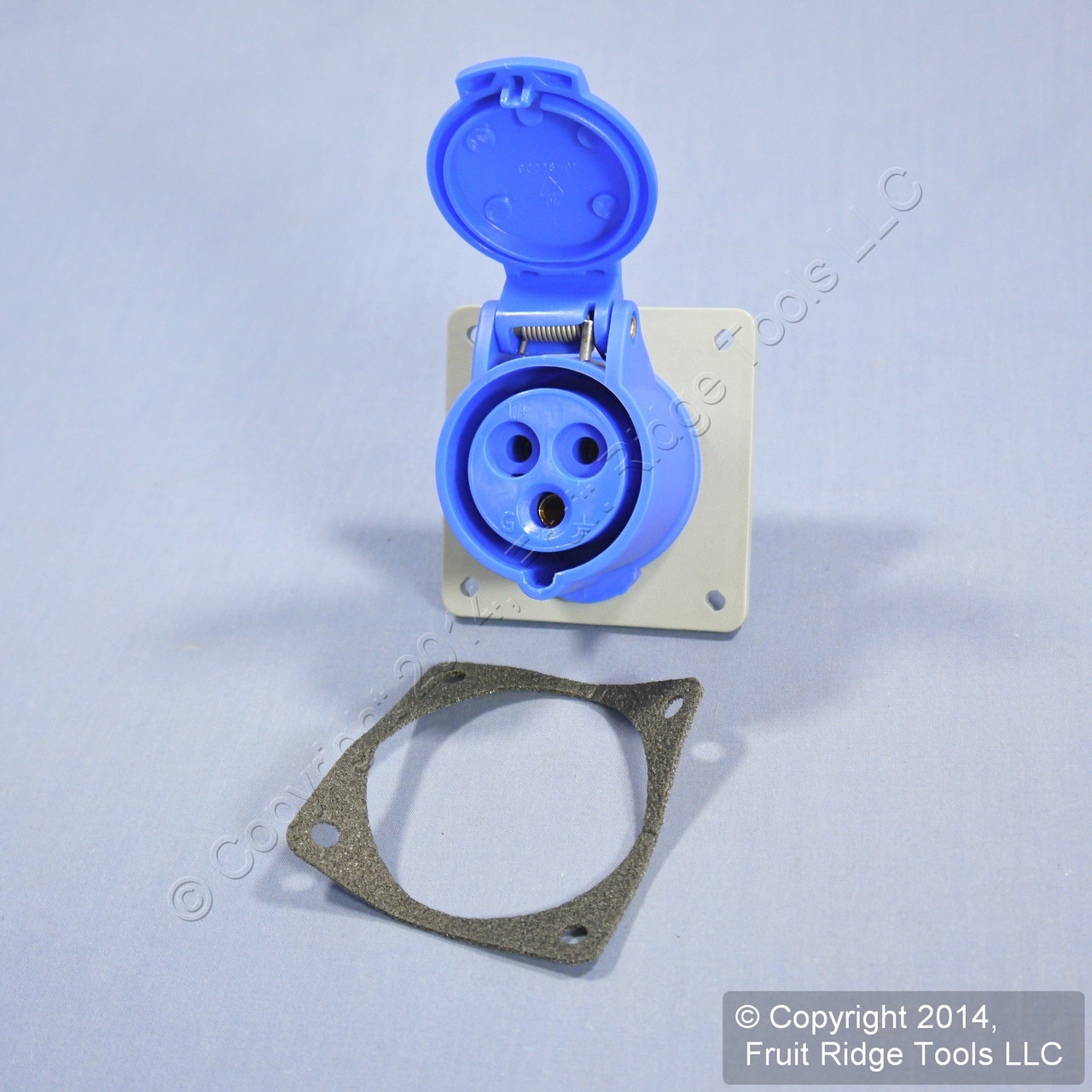

Leviton SP316R6 splashproof pin and sleeve receptacle. Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 16A 250VAC. Each is individually packaged; packaging may differ from photo. Features include:
- Rugged nylon housing
- Contact carrier resists arcing and internal heat build-up
- Multiple contact points assure a continuously reliable electrical connection
- Clean brass pin construction resists corrosion, provides superior contact and low electrical resistance
- Pins are designed for manageable insertion/withdrawal force
- Rounded pin tips reduce insertion force and decrease wear on the contact surface area
- Solid brass terminal screws provide maximum clamping pressure
- Locking ring secures plug to connector or receptacle
- EPDM rubber grommet provides a precise, reliable seal at the cable entry point
- Large diameter combination head terminal screws are aligned on a single plane for easier access
- Internal hinged cord clamp adds strain relief and swings aside when wiring terminals
- Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front & back side
- Rated for both 50 and 60 Hz applications
MPN:
SP316R6
Cross Reference:
Not Available
Color:
Purple
Amperage:
16A
Condition:
New
UPC:
60078477060270
Weight:
0.40 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
