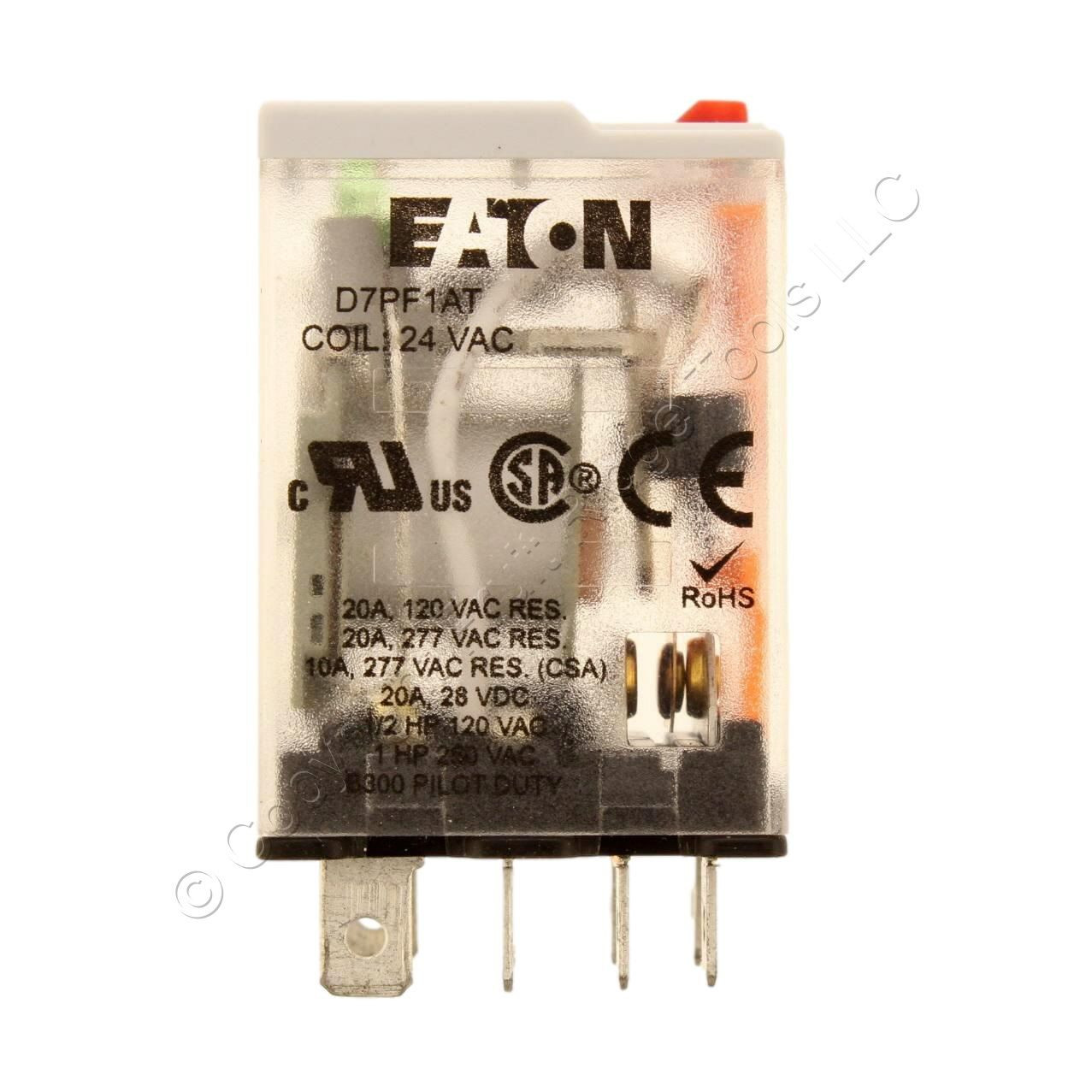

Eaton D7 Plug-In Power Relay SPDT 24VAC Coil 20A 650 Ohm Full Featured D7PF1AT

Your Price: $26.99

QTY Available to Ship:
1

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Eaton D7PF1AT full-featured relay. Features include:
  • Arc barrier equipped relay with high dielectric strength
  • Full featured version: LED test button, flag indicator, lock-down door, finger-grip cover, ID tag
  • Flag indicator shows relay status in manual or powered condition
  • LED status lamp shows coil ON or OFF status - ideal in low light conditions
  • Color-coded pushbutton identifies AC coils with red or DC coils with blue pushbuttons; allows for manual operation of relay without the need for coil power - ideal for field service personnel to test control circuits
  • Lock-down door, when activated, holds pushbutton and contacts in the operate position - excellent for analyzing circuit problems
  • Finger-grip cover allows operator to remove relays from sockets more easily than conventional relays
  • White plastic ID tag/write label used for identification of relays in multi-relay circuits
  • Coil voltage: 24VAC
  • Contact configuration: SPDT
  • Contact material: silver alloy
  • Contact rating: 20A
  • Enclosure: IP40
  • Maximum voltage: 300V switching
  • Resistance: 650 Ohms
  • Series: D7 Series
  • Terminals: plug-in

MPN:
D7PF1AT
Cross Reference:
Not Available
Color:
N/A
Amperage:
20A

Condition:
New
UPC:
782116484706
Weight:
0.10 LBS
