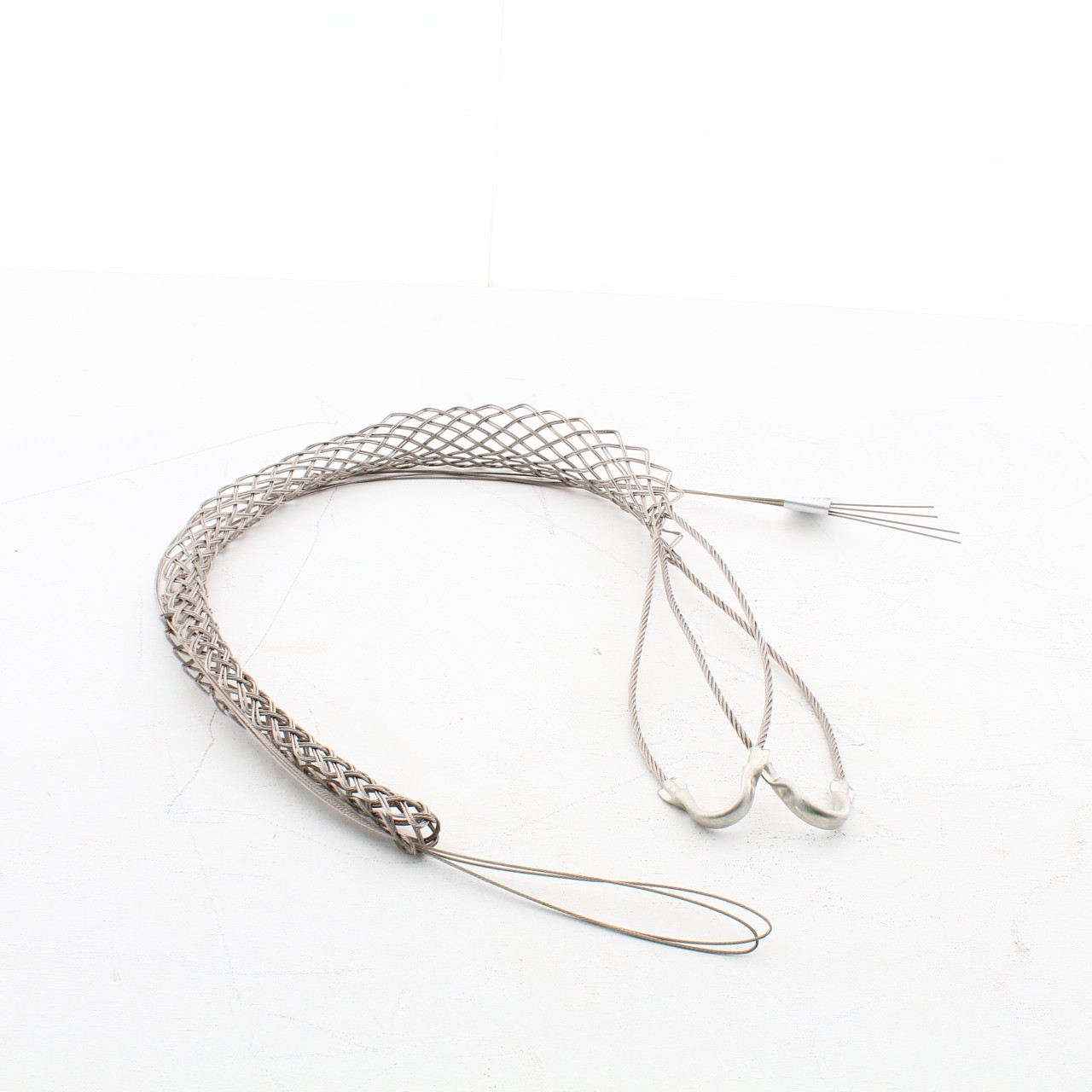

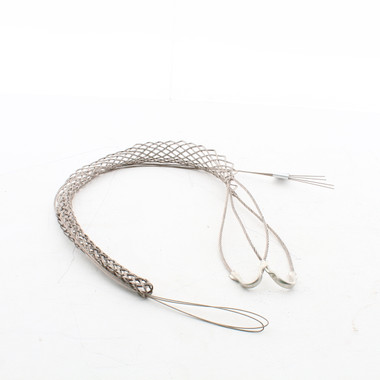

Bryant/Hubbell Cable Support Grip .75-.99" Laced Split Mesh Double U Eye SHS075

Your Price: $59.99
QTY Available to Ship:

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Bryant/Hubbell SHS075 heavy duty, double U eye, lace closing split mesh cable support grip (Bryant is a division of Hubbell). Used to hold the weight of electrical cable as it hangs in a vertical, sloping, or horizontal position. Electrical cable must be supported, or its dead weight can cause excessive strain or pullout at the connections resulting in power failure. Support grips also absorb additional strain from flexure, vibration, expansion, and contraction. Features include:
  • Cable diameter range:0.75-0.99"
  • Approximate breaking strength: 2,820 lbs.
  • Working load: unknown.
  • Eye length: 10"
  • Wire mesh length: 25"
  • Tin-coated bronze grips are non-magnetic minimizing hysteresis and resultant heat build-up which can lead to cable degradation and reduced life
  • Closed grip fits over cable end
  • For permanent support when cable end is available to be installed through grip
  • Positive action mesh grip
  • Strand equalizer positions wires for equal loading throughout the entire grip length
  • Never use grip to approximate breaking strength. Refer to manufacturer specifications for safety and working load factors

Cross Reference:

0.85 LBS
