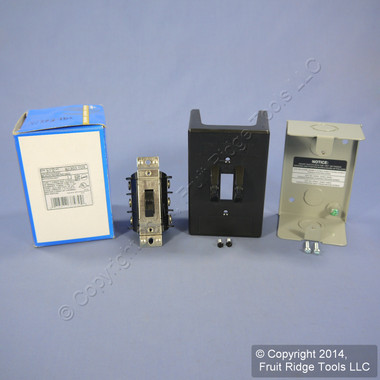

Leviton Motor Starter Switch TPST Triple Pole Single Throw w/Lockout 30A N1303-TDS

Your Price: $49.99

QTY Available to Ship:
1

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Leviton N1303-TDS enclosed manual motor starting switch without overload protection. It is Industrial Specification Grade, back & side wired, 3-pole, single throw, grounding, 30A 3-phase 600V Max. It is rated: 3HP@120VAC; 7.5HP@240VAC; 15HP@480VAC; and 20HP@600VAC. Each is individually packaged. Features include:
  • NEMA Type 1 enclosure - metal back and plastic front with lockout tabs
  • Positive-contact design enhances fast-make/slow-break
  • Silver-alloy contacts for maximum conductivity and service life
  • Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal
  • Oversized #10 triple-combination terminal screws are vibration resistant
  • All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
  • Insulating barrier between terminals provide isolation from each phase
  • Nickel-plated brass mounting yoke for superior corrosion resistance
  • Large toggle provides positive actuation, even with gloved hand

MPN:
LN1303-TDS
Cross Reference:
HBL1389D
Color:
Black
Amperage:
30A

Condition:
New
UPC:
078477374399
Weight:
1.20 LBS
