10-Pack Hubbell Bryant HBL5262I Ivory 15A Industrial Receptacle Duplex Outlets 5-15R 125V

Your Price: $84.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

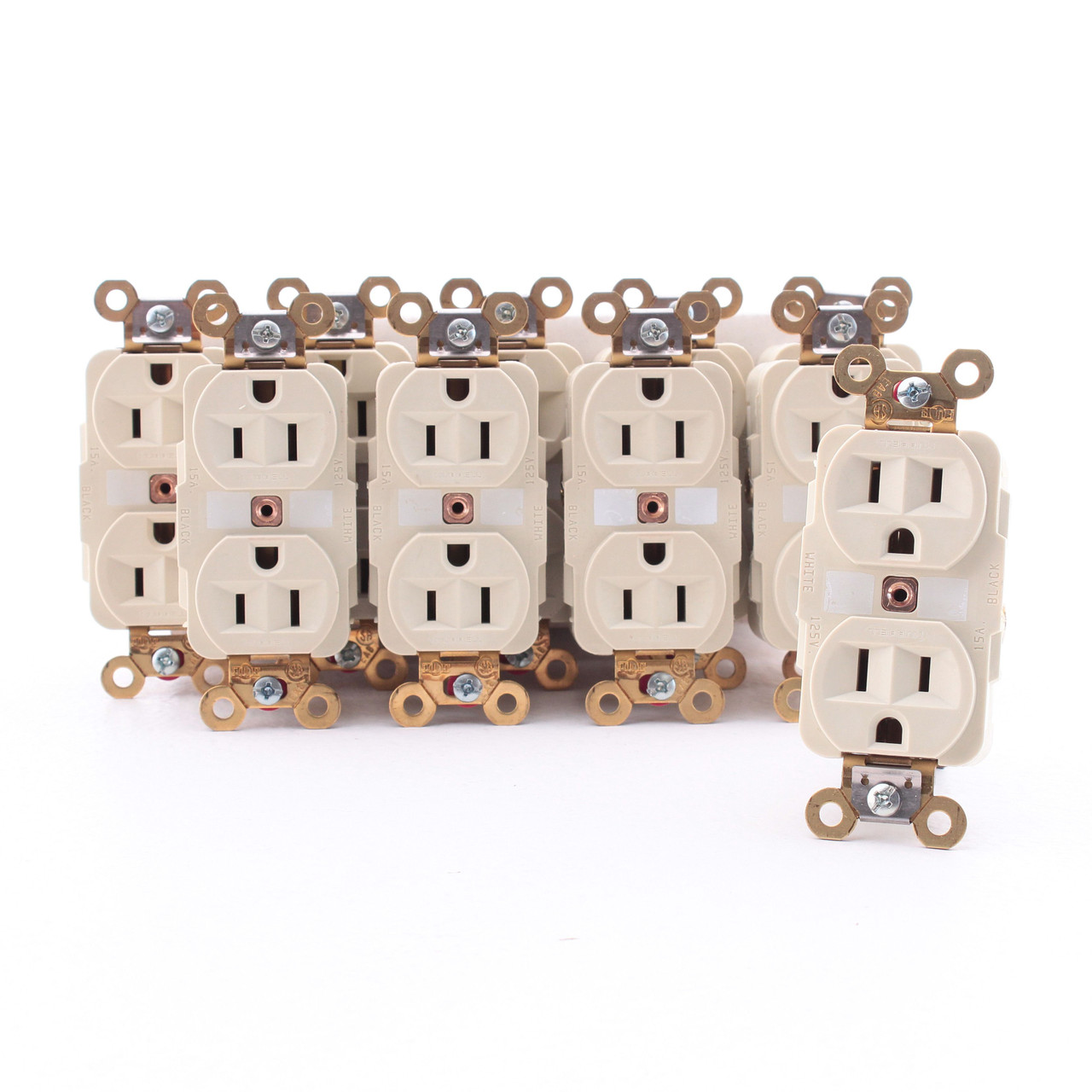

10-pack of Hubbell Bryant HBL5262I ivory straight blade receptacles (Bryant is a division of Hubbell). Tech-Spec Industrial Specification Grade, NEMA 5-15R, 2-pole, 3-wire, grounding, rated 15A 125V. Each is individually packaged; packaging may differ from photo. Features include:

One-piece grounding system including integral self-grounding strap. True one-piece ground system. The rivetless construction of this unique system provides a more reliable continuity to ground than riveted designs. The brass, one-piece system includes grounding contacts, self-grounding strap and grounding screws
Full-face, wraparound design is molded of high-impact, chemical-resistant nylon. Wraparound, full-face design will not come off under stress. Overlapping, thick walled nylon face and base construction is virtually unbreakable. Interior walls isolate and support contacts while overlapping design provides excellent arc and tracking resistance
Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors
Heavy-duty 0.050" steel yoke is wrapped around receptacle and locked in place for maximum mechanical strength and security
Double-plated yoke (nickel & brass) for superior corrosion resistance
Back wiring: eight wiring pockets for convenient feed thru wiring, clamp-type terminals accept up to #10 wire
Terminal screws: brass combination Phillips/slotted/Robertson binding head accepts up to #10 wire
Approved for CU wire only
Large green, combination Phillips/slotted/Robertson hex head grounding screw
Back wire ground clamp for quick and convenient wiring
Center splined bushing interlocks with receptacle body to prevent rotation when fastening wall plates
Easily accessible break-off tab for two-circuit wiring
High-performance brass line contacts deliver excellent conductivity for low resistance, low heat rise. Triple-wipe design assures contact at three points on the plug blades. Superior spring properties and the rivetless, one-piece construction provide reliable, long-life blade retention
Double-wipe brass grounding contacts
Strip gauge for accurate wiring
Washer-type, break-off plaster ears
Thread cleaning captive mounting screws

MPN:

HBL5262I

Cross Reference:

Not Available

Color:

N/A

Amperage:

15A

Condition:

New

UPC:

30783585435160

Weight:

2.50 LBS
