- Bryant Hubbell Blue INDUSTRIAL Receptacle Duplex Outlet 5-15R 15A 125V 5262BU
QTY Available to Ship:
218
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

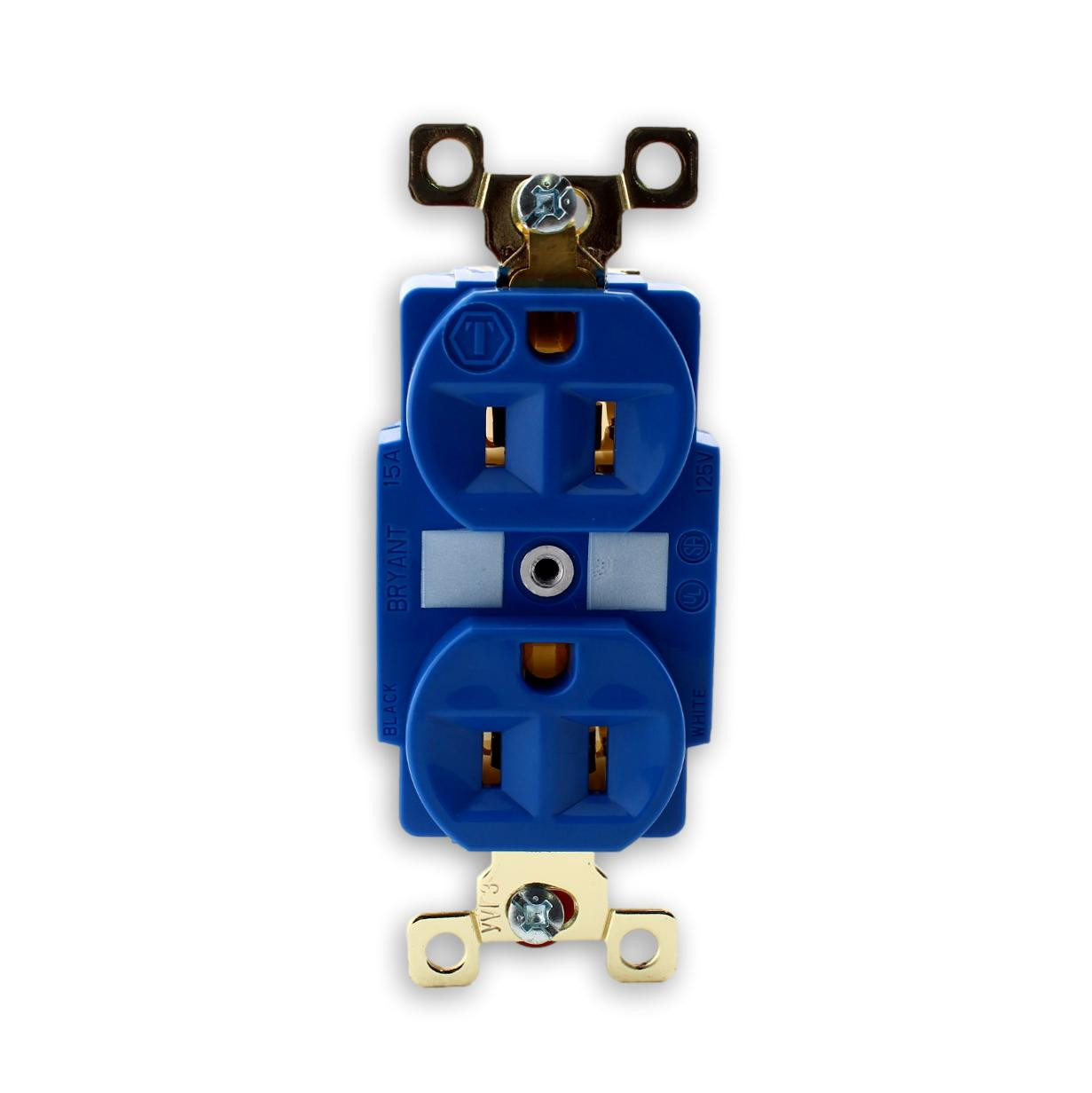

Hubbell/Bryant 5262BU blue straight blade receptacle (Bryant is a division of Hubbell). The bright blue color is great for locations where you want to call attention to your outlets: workshops, garages, offices, etc. Tech-Spec Industrial Specification Grade, NEMA 5-15R, 2-pole, 3-wire, grounding, rated 15A 125V. Each is individually packaged; packaging may differ from photo. Features include:
- One-piece grounding system including integral self-grounding strap. True one-piece ground system. The rivetless construction of this unique system provides a more reliable continuity to ground than riveted designs. The brass, one-piece system includes grounding contacts, self-grounding strap and grounding screws
- Full-face, wraparound design is molded of high-impact, chemical-resistant nylon. Wraparound, full-face design will not come off under stress. Overlapping, thick walled nylon face and base construction is virtually unbreakable. Interior walls isolate and support contacts while overlapping design provides excellent arc and tracking resistance
- Extended barrier (shroud) on sides of cover surround wire terminals for added insulation and isolation of conductors
- Heavy-duty 0.050" steel yoke is wrapped around receptacle and locked in place for maximum mechanical strength and security
- Double-plated yoke (nickel & brass) for superior corrosion resistance
- Back wiring: eight wiring pockets for convenient feed thru wiring, clamp-type terminals accept up to #10 wire
- Terminal screws: brass combination Phillips/slotted/Robertson binding head accepts up to #10 wire
- Approved for CU wire only
- Large green, combination Phillips/slotted/Robertson hex head grounding screw
- Back wire ground clamp for quick and convenient wiring
- Center splined bushing interlocks with receptacle body to prevent rotation when fastening wall plates
- Easily accessible break-off tab for two-circuit wiring
- High-performance brass line contacts deliver excellent conductivity for low resistance, low heat rise. Triple-wipe design assures contact at three points on the plug blades. Superior spring properties and the rivetless, one-piece construction provide reliable, long-life blade retention
- Double-wipe brass grounding contacts
- Strip gauge for accurate wiring
- Washer-type, break-off plaster ears
- Thread cleaning captive mounting screws
MPN:
5262BU
Cross Reference:
Not Available
Color:
N/A
Amperage:
15A
Condition:
New
UPC:
781786005068
Weight:
0.15 LBS
