Product Description

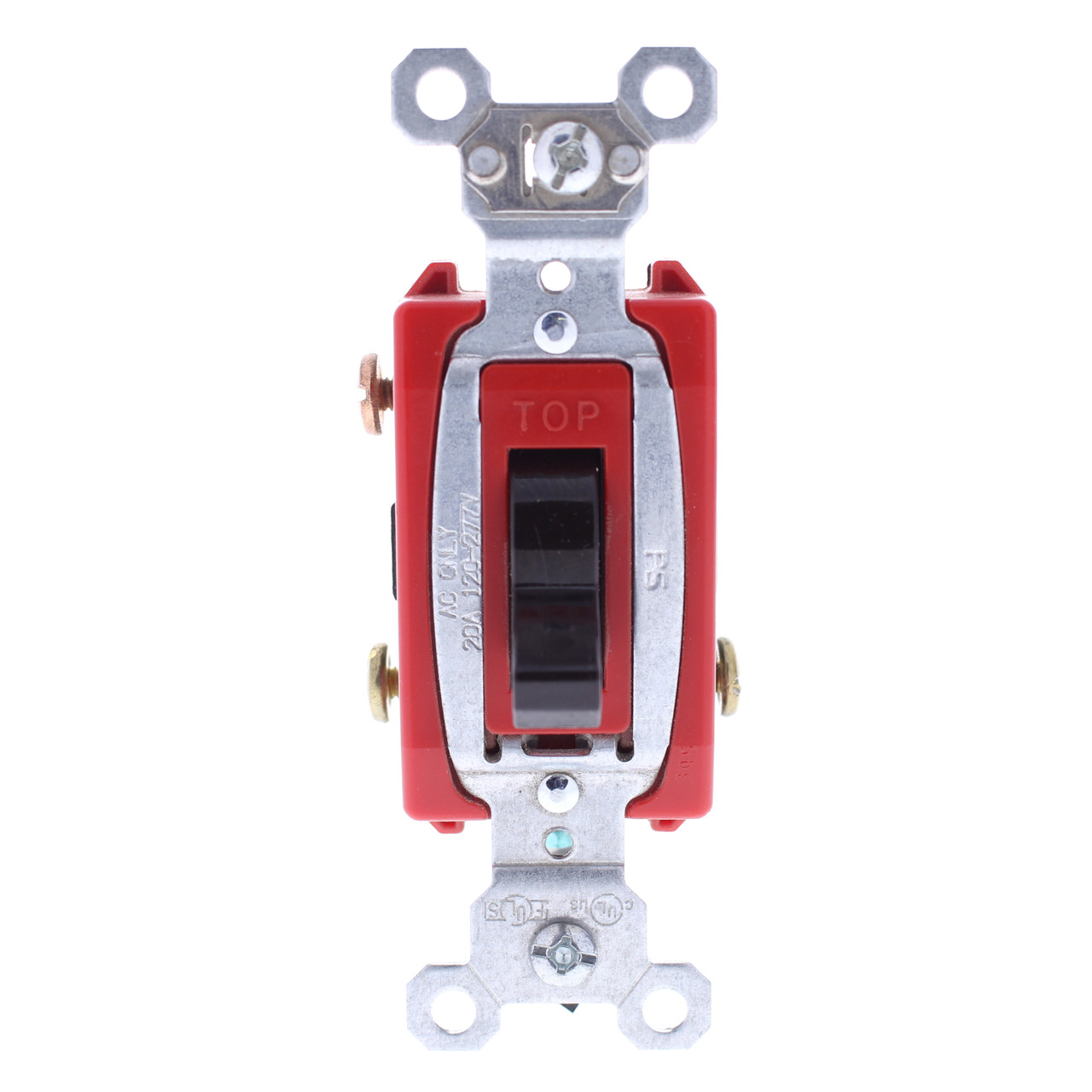

Pass & Seymour CS20AC3 brown toggle switch. Commercial Specification Grade, 3-way, side wired, grounding, rated 20A 120/277VAC. Each is individually packaged; packaging may differ from photos. Features include:
- Oversized silver alloy contacts for longer dependable switch life
- One-piece brass alloy contact arm for reliable electrical performance
- High-strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth operation
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Strap steel with integral ground for corrosion resistance
- Side wire terminals accept #14 - #10 AWG copper or copper-clad wire
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Triple-drive terminal and mounting screws (straight slot, Phillips and Robertson)
MPN:
CS20AC3
Cross Reference:
CS320-2
Color:
Brown
Amperage:
20A
Condition:
New
