Product Description

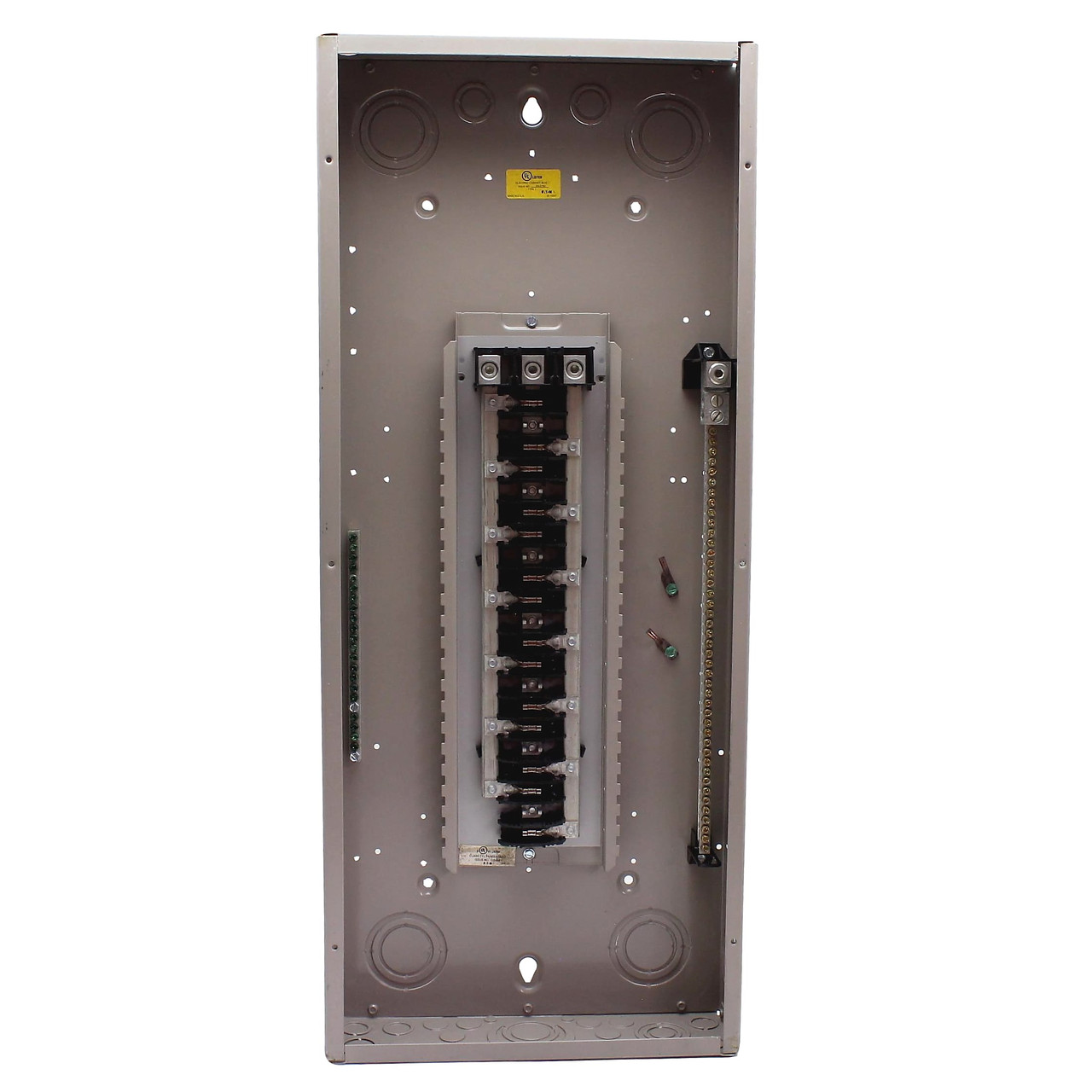

Eaton CH42L3225G 42-space, 3-phase, 4-wire indoor main lug breaker panel with copper bus. Please note this panel does not come with cover and paint is chipped on corners. This would typically be used as a subpanel. Features include:
- 225 Amp indoor main lug breaker panel: three phase, 4-wire, 120/208VAC or 240VAC
- Suitable for use as service equipment when a circuit breaker is used as a main breaker. The main breaker is backfed and requires hold-down bracket kit catalog number CH125RB
- 42 spaces (up to 42 circuits)
- No feed-thru lug; ground bar Type GBK21 is installed
- Cover sold separately: compatible with either Eaton CH8GF combination (flush/surface mount) cover or Eaton CH8GS surface mount cover
- Wire size: #4 AWG-300 kcmil Cu/Al
- Uses CH type breakers
- Dimensions: 34.13 in. high, 14.31 in. wide, 3.88 in. deep
- Bus material: copper
- 1-piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
- "Tangential" center knockout provides easier installation for conduit applications
- Steel back pan provides solid and reliable breaker mounting - single piece design for stability and durability
- Single keyhole mounting - one keyhole at the top and bottom provides easier mounting and leveling
- Drywall marking on enclosure - indicates proper mounting depth for flush applications
MPN:
CH42L3225G
Cross Reference:
Not Available
Color:
N/A
Amperage:
225A
Condition:
New
