Pass & Seymour 3861 Angle Straight Blade Plug NEMA 10-30P 10-50P 30/50A 125/250V

Your Price: $17.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

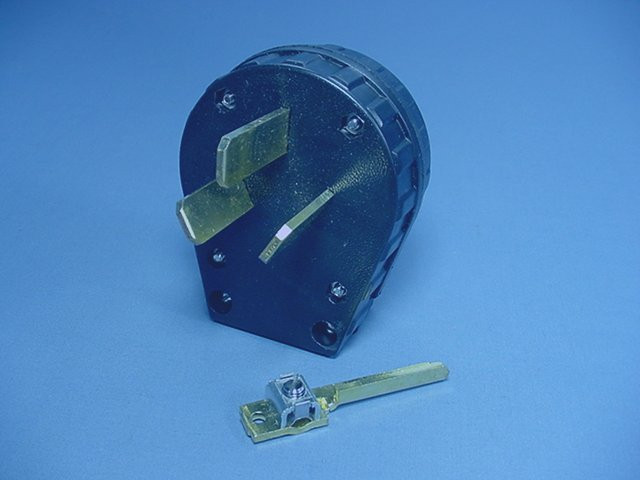

Pass & Seymour 3861 straight blade angle plug. The blades can be installed to match either 30A (NEMA 10-30) or 50A (NEMA 10-50) applications; be sure that the cord that you are using is properly rated for the given plug configuration that you are choosing. Since this is a non-grounding model, it is intended for replacement use only. Commercial Specification Grade, NEMA 10-50P OR 10-30P, 2-pole, 3-wire, grounding, 30/50A 125/250V. The 10-30 configuration is typically used for older dryers that do not have a ground leg and that require dual voltage: 250V for the heating element and 125V for the controls and drum motor. If you have a dryer with a ground leg (that is, has a 4-blade plug) check out our NEMA 14-30 plugs. The 10-50 configuration is typically used for older ranges that are non-grounded and that require dual voltage: 250V for the heating elements and 125V for lighting/clock/controls. If you have a newer range with a grounded plug (that is, a 4-blade plug), check out our NEMA 14-50 plugs. Features include:

0.56-1.10" cord capacity with versatile cord clamp to be used with #10/3 SO to #6/3 SRD, SJ, or SO cords - copper wire only
Solid brass blades
Supplied with 30A and 50A blades
Terminals have pressure plates to protect wiring
Tough thermoplastic shell for impact resistance and long life

MPN:

Color:

Amperage:
