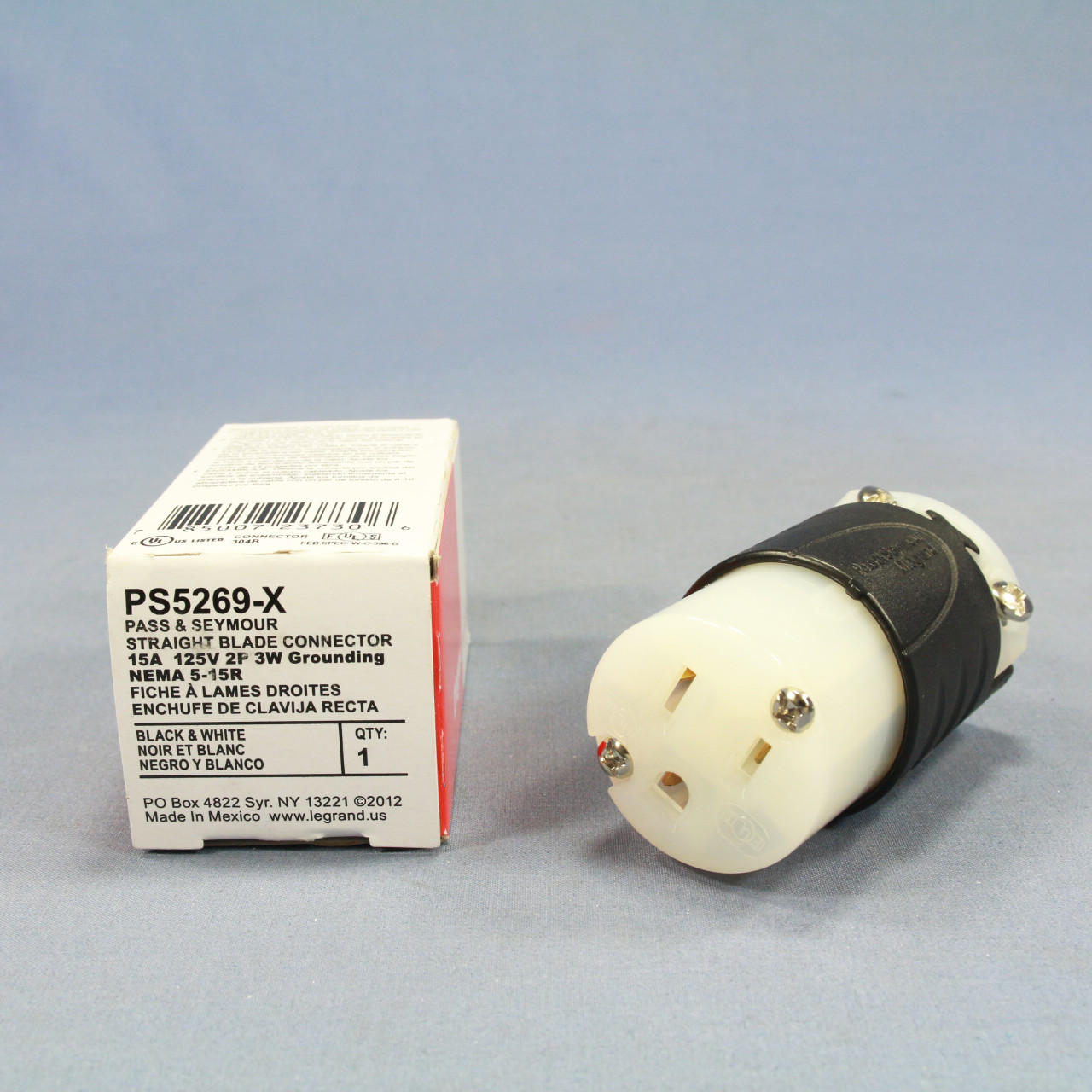

Pass and Seymour 5269-X Extra-Hard-Duty Straight Blade Plug Connector NEMA 5-15R 15A 125V

Your Price: $9.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Pass & Seymour PS5269-X straight blade connector - designated for extra-hard use applications. Specification Grade, NEMA 5-15R, 2-pole, 3-wire, grounding, rated 15A 125V. Accommodates .230-.690" diameter cord. Each is individually packaged; packaging may differ from photos. Features include:

Quick-thread assembly screws and cord grip screws come backed-out, ready-to-wire
Industrial-strength, brass alloy plug connector contacts resist heat rise, provide excellent conductivity. Ground pin is reinforced for added strength and safety
Color-coded terminal screws are positioned on same plane and backed out for fast installation
Double-wipe, firm-grip ground contact and triple-wipe power contacts guarantee a superior connection
Exclusive, rugged integral cord grip accepts a wide range of cord widths. No external parts to snag or break off
Recessed cord grip screw reduces screwdriver slippage, improves safety
Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body
Housing is keyed for fast alignment with terminal section
Tapered wire wells guide conductors into captivated, staked clamping nuts
See-through, thermoplastic terminal chamber for clear view of terminals and wire connections

MPN:

PS5269-X

Cross Reference:

Not Available

Color:

Black & White

Amperage:

15A

Condition:

New

UPC:

785007237306

Weight:

0.15 LBS
