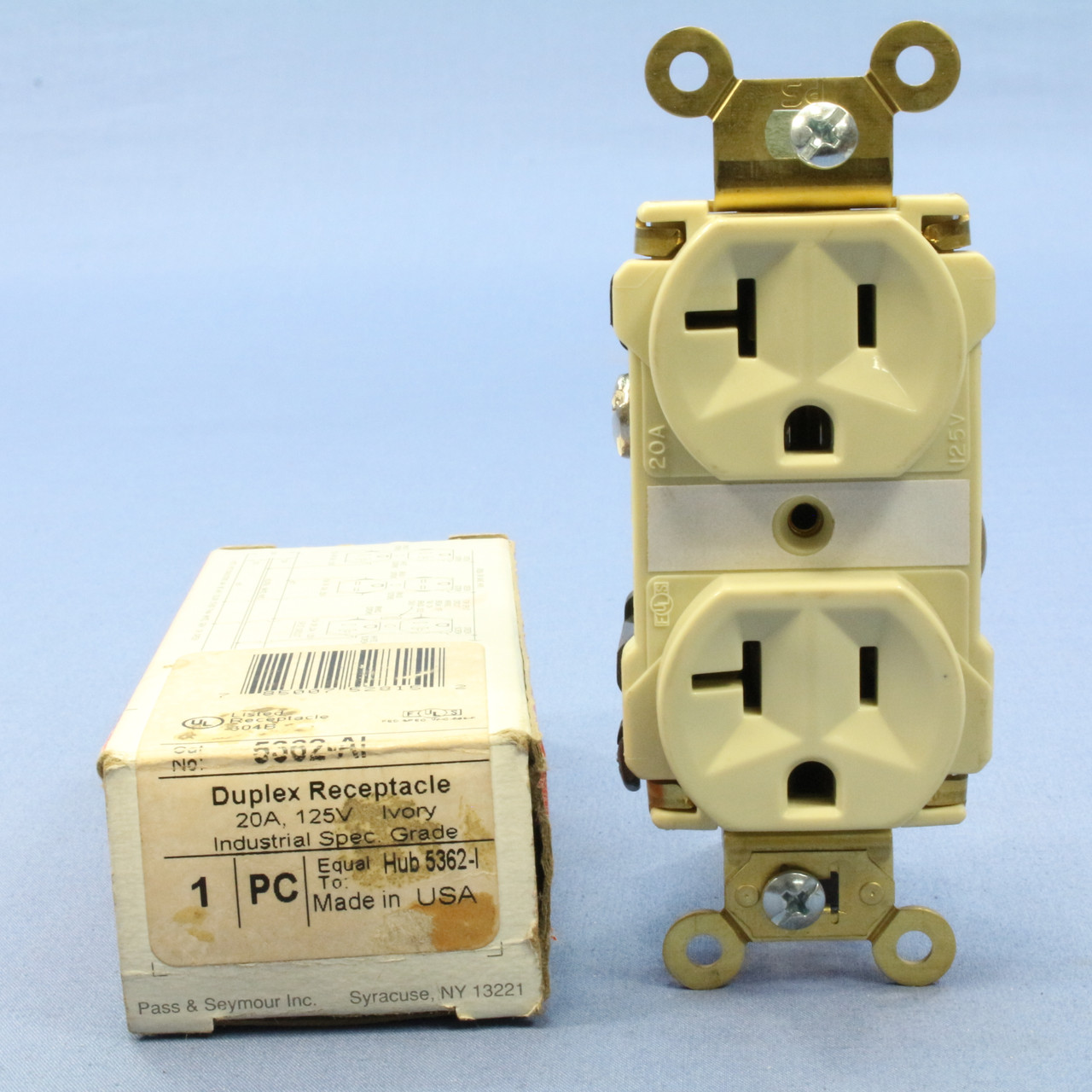

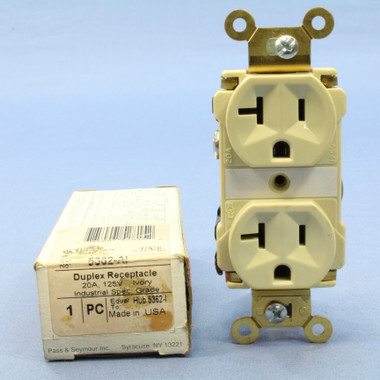

Pass & Seymour 5362-AI Ivory Industrial Grade Straight Blade Auto-Grounding Receptacle Duplex Outlet NEMA 5-20R 20A 125V

Your Price: $8.99

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Pass & Seymour 5362-AI ivory duplex receptacle. They are Industrial Extra Heavy Duty Specification Grade, 2-pole, 3-wire, NEMA 5-20R, back and side wired, 20A 125V. Each is individually packaged; packaging may differ from photos. Features include:

One-piece brass mounting strap with integral ground
Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
Two drive screws anchor strap to back body and face
Exclusive patented feature, circuit label on face allows permanent circuit identification
.036 inch thick, brass, triple-wipe power contacts for lasting retention
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
Impact-resistant nylon face and back body
Oversized #10 deep tri-drive head brass terminal and ground screws
Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
Line terminals accept #14 -- #10 AWG stranded or solid copper clad conductors
Auto-ground clip assures positive ground
Corrosion-resistant models have nickel-plated straps and contacts

MPN:

5362-AI

Cross Reference:

5362-I

Color:

Ivory

Amperage:

20A

Condition:

New

UPC:

785007528152

Weight:

0.25 LBS
