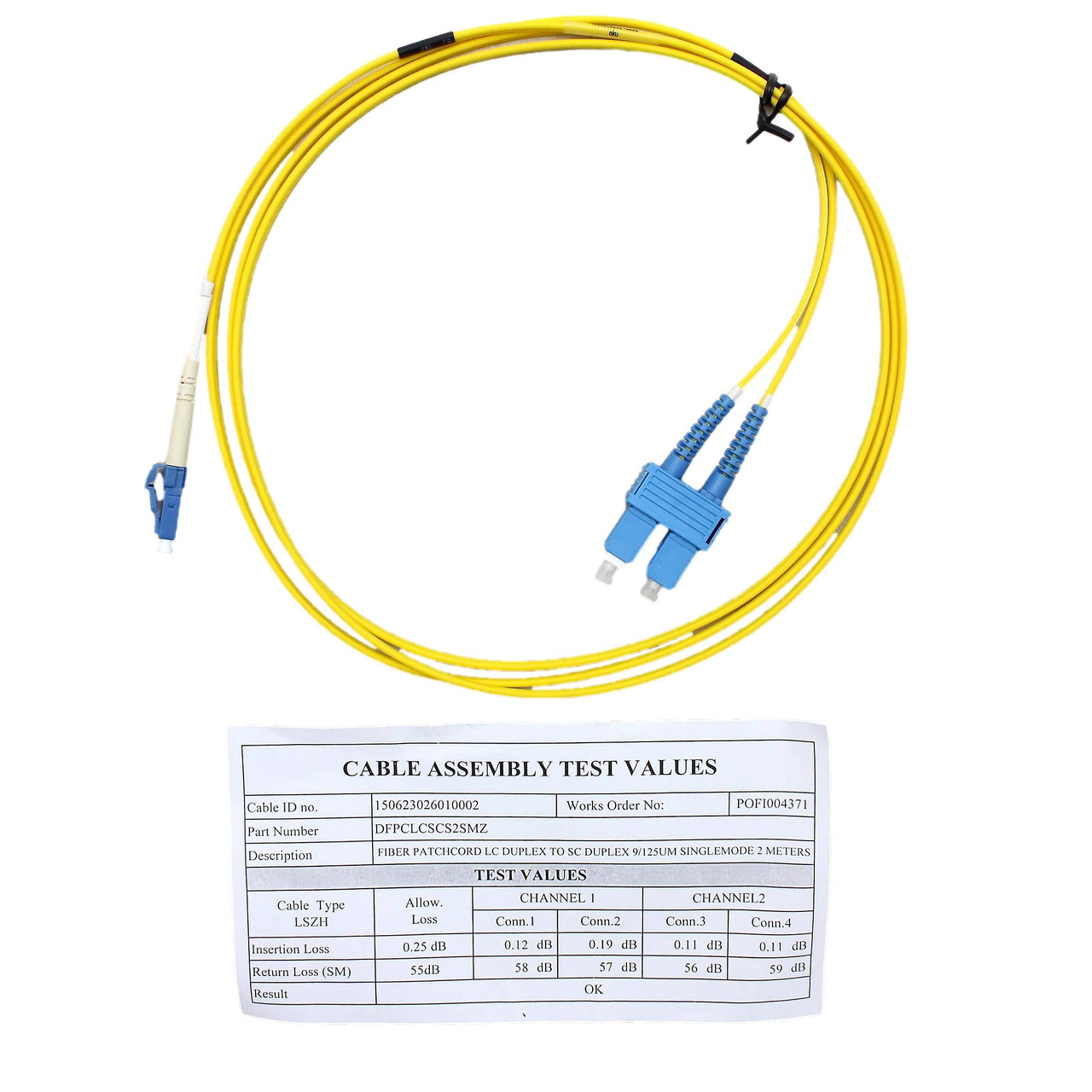

Hubbell Fiber Optic Patch Cord LSZH OS2 Cable Duplex SM LC-SC 2m DFPCLCSCS2SMZ

Your Price: $24.99

*Same Day Shipping

QTY Available to Ship:

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Hubbell DFPCLCSCS2SMZ OptiChannel fiber optic patch cord. Features include:
  • Connectors: LC to SC
  • Fiber grade: OS2
  • Density: Duplex
  • Mode type: Single Mode
  • Tip polish style: UPC (ultra physical contact)
  • Core/cladding: 9/125 micron
  • Length: 2 meters
  • Cable type: LSZH (low smoke, zero halogen)
  • Cable diameter: 1.6 mm to 2.0 mm
  • Mated pair insertion loss: < 0.35 dB (0.15 dB Typical)
  • Mated pair return loss: > 55 dB
  • Factory polished and 100% tested for superior performance
  • 100% tested, heat cured epoxy termination
  • Ferrule material: zirconia ceramic

Cross Reference:
Not Available

0.10 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping

Product Reviews
