Leviton UPS 3000VA Online Pure Sine Wave Rack Mount Hard-Wire 1800W U3000-ORM

Your Price: $450.00

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

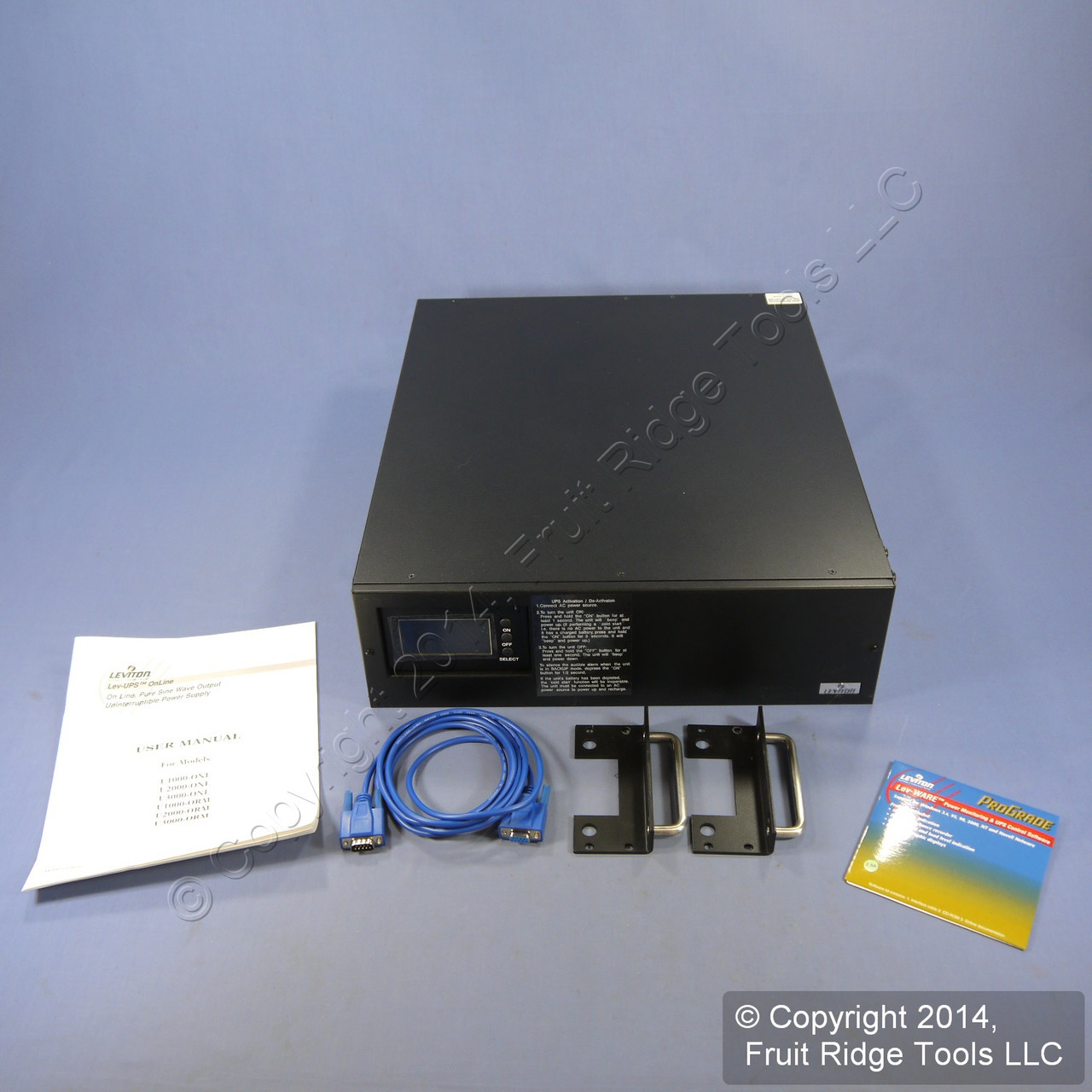

Leviton U3000-ORM rack mount uninterruptible power supply (UPS). Please note that this does not include batteries so you will need to buy a new set. These are old stock that has been in storage. ATTENTION These need to be hardwired in order to charge. Please note that we mark internal components to prevent part switching.

For use in the most critical applications, this model is a true on-line, double conversion design that provides a continuous, true-sine wave output with less than 3% total harmonic distortion (THD). Allows for a wide input voltage range of +/-27% and also features power factor correction and dual microprocessors for control of all functions. Unique features include a "cold start" function that allows the user to power up the loads(s) directly from the UPS without the presence of utility power, a multi-purpose LCD display and cooling fans that vary their speed relative to load size. Independent input and output circuit breakers protect against overloads and short-circuits and advanced battery management extends battery life by up to 50%. Comes with hard-wire terminal blocks for permanent installation. Using the UPS with the included Lev-WARE software and interconnecting cable allows intelligent control of the system when linked to a host computer. (Some operating systems may require the use of other optional software). In addition to the RS-232 function of the communication port, dry contacts are provided for remote control of basic operation of the UPS. When an overload or malfunction occurs, the UPS automatically and seamlessly transfers to bypass mode and continues to supply the load with utility power. Upon removal of the fault condition, the unit automatically transfers back to inverter mode once the unit has been restarted. Features include:

Rack mount design; 3RU height
4 outlets on back
Unit must be hardwired in place because of its power draw (20.3 amps) so there is no power cord; #8 AWG wire is recommended
Must be hardwired in order to charge
True On Line Double Conversion Topology with Input Power Factor Correction
Pure Sine Wave Output w/ less than 3% THD
Lev-WARE power monitoring & UPS control software; supports Windows 3.x, 95, 98, 2000, NT and Novel Netware
Surge protection & noise filtration
RS-232 & dry contact signaling

Specifications:

Capacity (0.7 pF) 3000VA, 1800W
Input Voltage: 120V +/-27% single phase @ 50 or 60Hz (auto sensing)
Output Voltage:120V +/-2% @ 50 or 60Hz (auto sensing)
Output Type: Pure sine wave
Surge Protection and Filtering: Per IEEE C-62.41
Overload Protection: Automatic UPS shutdown if overload protection exceeds 105% of nominal for 60 seconds; 130% for 3 seconds
Battery Type: Sealed maintenance-free lead acid
Battery Recharge Time: 8 hrs. (90% capacity)
Battery Protection: Automatic self-test and discharge protection. Battery replacement indicator.

MPN:

U3000-ORM

Cross Reference:

Not Available

Color:

Black

Condition:

New

UPC:

078477095805

Weight:

76.35 LBS
