- Leviton Black 16 Series Cam-Type Terminal Connector Offset 400A 600V 16M22-2E
QTY Available to Ship:
1
Product Description

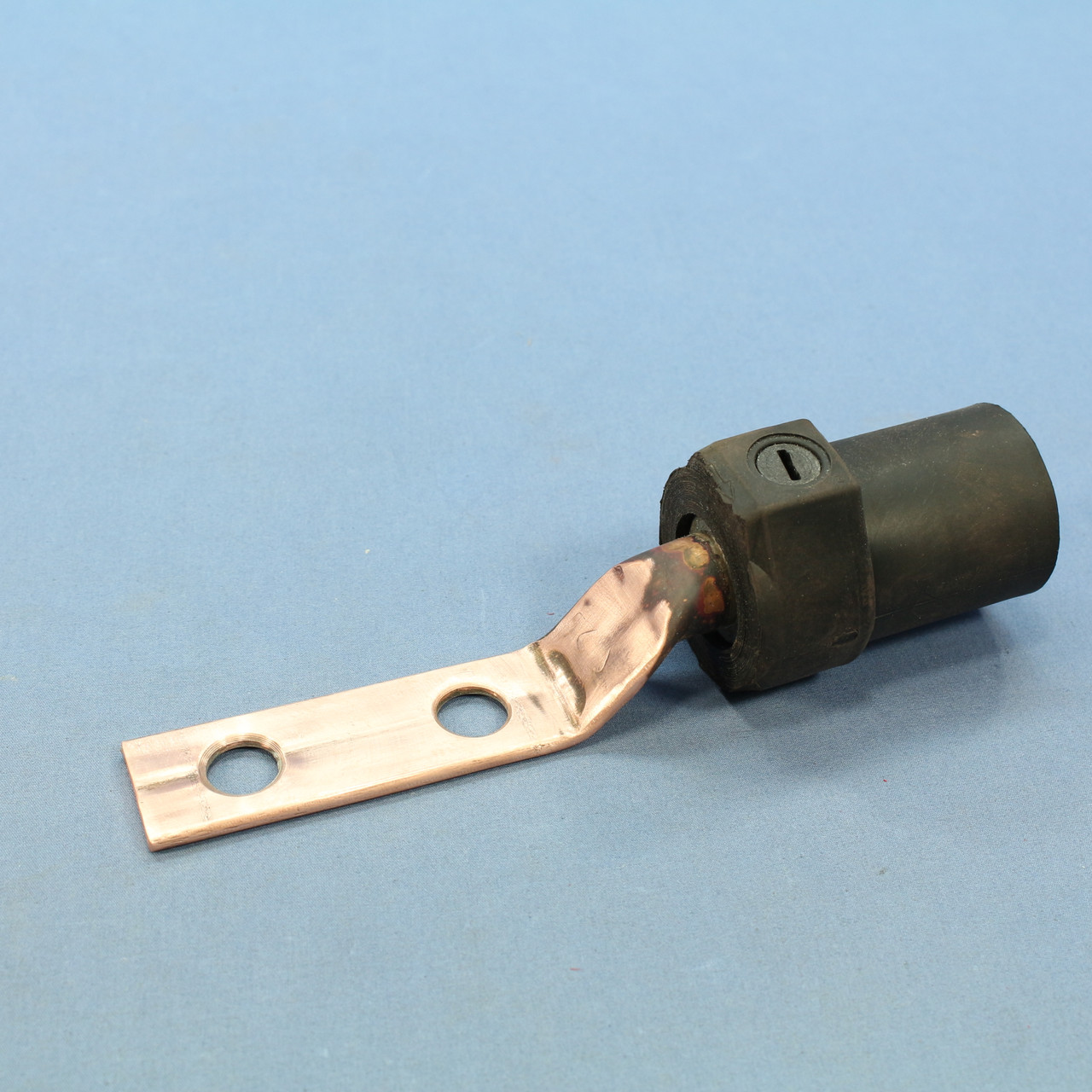

Leviton 16M22-2E black cam-type terminal connector. For use with 16 Series taper nose connectors. Features include:
- Rated up to 400A 600V (with proper cabling)
- Cable capacity: #2 to 4/0 AWG
- Connectors of choice for concerts, sounds stages, movie making, television production, sporting events and conventions
- Intermateable and completely compatible with competitive cam-type products - can be retrofitted to existing locations and power distribution systems
- Locking and reinforcing ring won't melt, break or crack
- Shatter and crack proof - high durometer thermoplastic elastomer(TPE) or neoprene rubber
- Color coded insulating sleeves - fast and easy phase identification
- Prevents arcing or burning - no movement of contact surfaces
- Self compensating for wear - slit and cam in male contact provides spring action for longer usage
- Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
- High conductivity - positive vibration-proof connection provided by double cam design
MPN:
16M22-2E
Cross Reference:
Not Available
Color:
Black
Amperage:
400A
Condition:
New
UPC:
078477216033
Weight:
0.60 LBS
