- Eaton White ASPIRE RF Smart Dimmer Accessory 120V 7-Step Multi-Way RF9542-ZDW
QTY Available to Ship:
24
Product Description

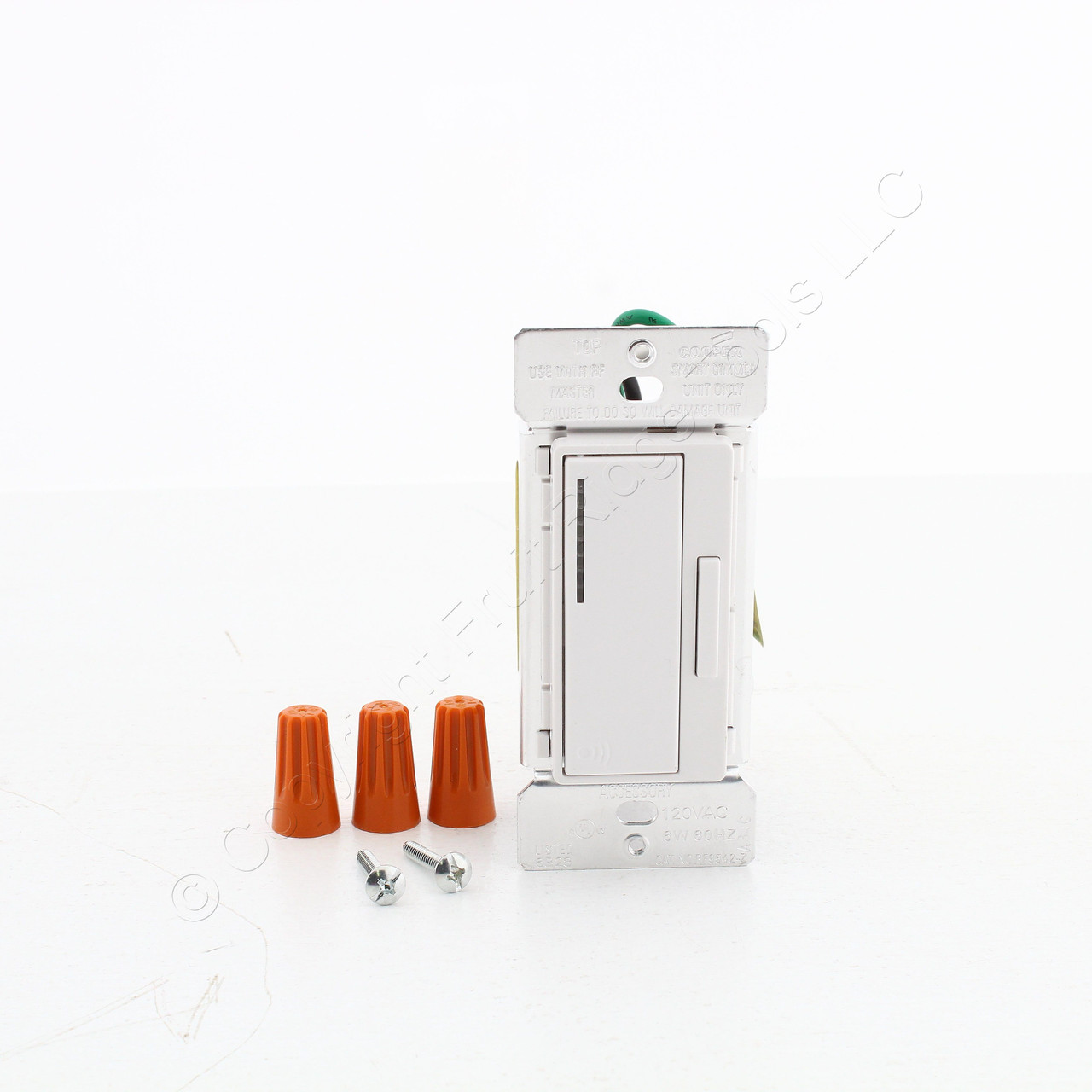

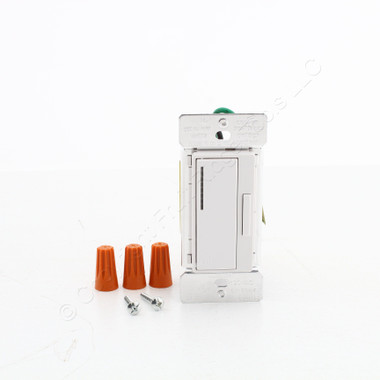

Eaton RF9542-ZDW white RF smart dimmer accessory dimmer. Residential Grade, multi-way, grounding, 3 pre-stripped 6" wire leads for line, ground and neutral, rated 120VAC. Each is individually packaged; packaging may differ from photo. Features include:
- Electro-mechanical push button for ON/OFF operation
- Seven step blue LED display alongside push pad indicates selected light level - even in full daylight (coordinates light level status with associated master dimmer)
- Compatible with Aspire RF master dimmer (RF9540-N, RF9534, RF9536, RF9536-N, RF9537-N) for wireless 3-way control, eliminating the need for traditional 3-way wiring or dedicated traveller wires
- Requires neutral wire for installation
- Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
- LED reduces brightness when in the OFF state (nightlight feature)
- Adjustable ramp rate
- Pressing and holding push pad for 2 seconds brings light to full brightness without affecting preset levels
- Single button programming
- Patented indicator system alerts if switch is not set up in the network
- Can be associated with up to 5 other devices
- Programmable rapid and delayed fading (up to 4 minutes) (default is 10 seconds)
- Child Lockout feature
- All-On/All-Off inclusion
- Panic Mode inclusion
- Three 6" pre-stripped wire leads
- Z-Wave Compliant Certified
- Rating: 120 V/AC 60Hz
- Uses 300 Series Z-Wave chip @ 40Kbs
MPN:
RF9542-ZDW
Cross Reference:
Not Available
Color:
N/A
Amperage:
Not Rated
Condition:
New
UPC:
032664739101
Weight:
1.95 LBS
