10 Leviton White Decora Scene Dimmer Switches MicroDim Preset Fluorescent 17768-W

Your Price: $142.50

QTY Available to Ship:
3

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

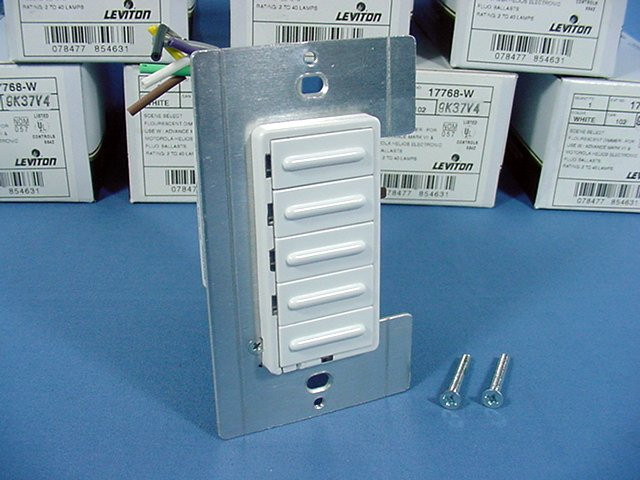

10 Leviton 17768-W white Decora MicroDim Scene Selector dimmers. Four programmable dimming level buttons with LED indicators and separate ON/OFF preset button. Provides full range control of Advance Mark VII and Motorola Helios dimmable electronic fluorescent ballasts. When installed as part of a Scene Select network, provides multi-location scene dimming with the addition of Leviton 17700 Scene Select Masters. Check the additional photos to see wiring diagrams of typical network installations. Can be installed with a wide variety of Leviton MicroDim devices to provide sophisticated lighting schemes. Please note that both single pole and multi-location installations require a Leviton 9900 Series Control Unit to interface with the ballast. Features include:
  • For use with Advance Mark VII and Motorola Helios electronic dimmable ballasts only - rated 3W 120VAC 60Hz for 2 to 40 lamps
  • Requires Leviton 9900 Series Control Unit (or equivalent) to operate
  • May be used in a Scene Selector network or alone with a single fixture for ON/OFF and four preset brightness levels
  • Multi-preset with LED indicators - each of the presets can be programmed to any lighting level in the dimming range, including OFF
  • Up to twenty Scene Dimmers can be used with a Scene Controller, accommodating sophisticated scene lighting designs
  • Locator LED illuminated when lights are OFF to make it easier to find switch in the dark
  • Protected memory and voltage compensation maintain light levels after power outages and during minor power fluctuations
  • Encapsulated, gold-surfaced touch contacts resist humidity and wear
  • Wraparound mounting strap provides efficient heat dissipation and ease of installation
  • Superior RFI filtering coil
  • ON/OFF AC air gap switch completely disconnects power to unit for bulb changing or removal from service
  • Low-end trim adjustment permits setting of minimum brightness level
  • Includes pre-printed button labels
  • Wallplate sold separately

MPN:
17768-W
Cross Reference:
Not Available
Color:
White

Condition:
New
UPC:
078477854631
Weight:
4.42 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping
