Eaton Brown Tamper Resistant GFCI Self-Test Straight Blade Duplex Receptacle 5-15R 15A 125V TRSGF15B

Your Price: $14.99

*Same Day Shipping

QTY Available to Ship:

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

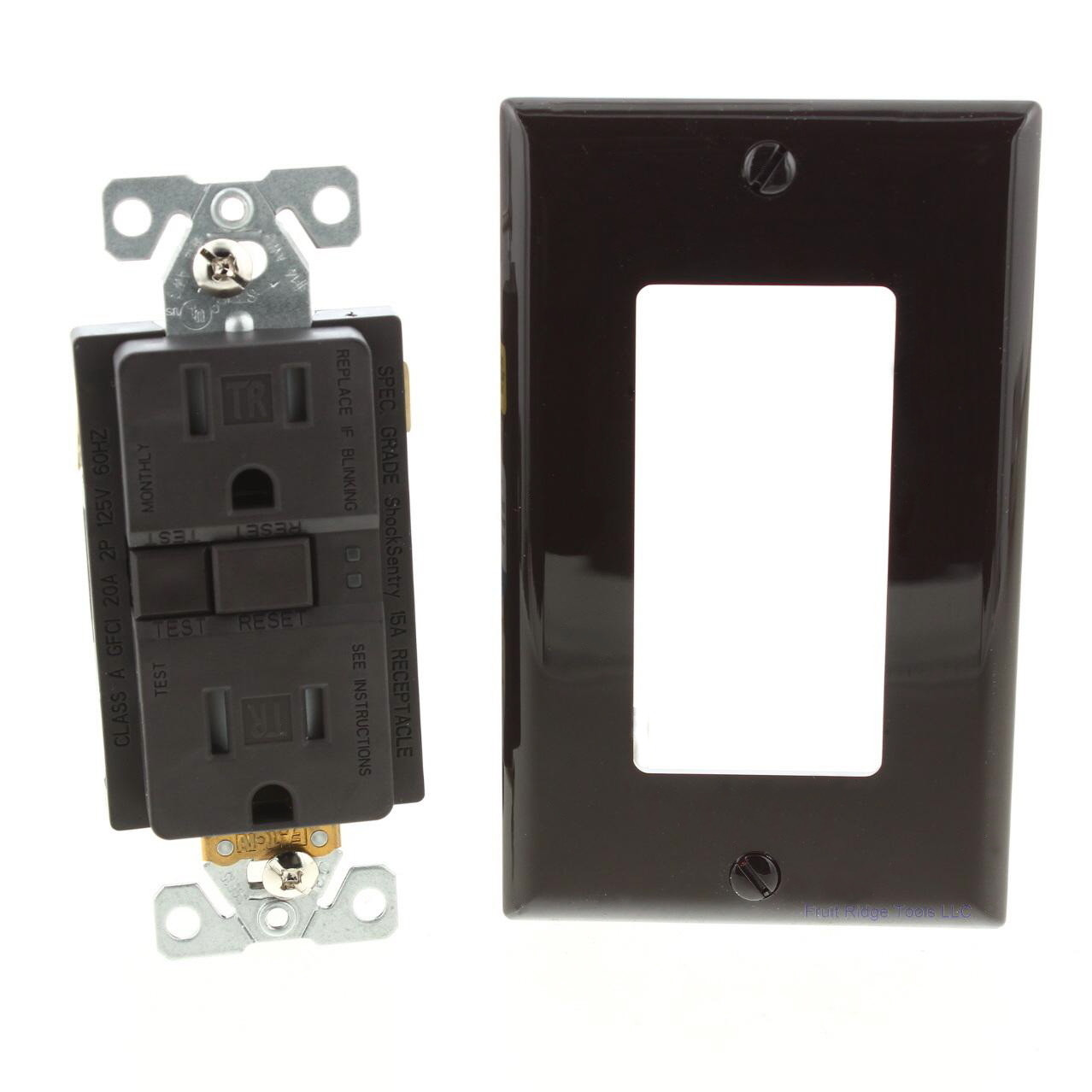

Eaton TRSGF15B brown tamper resistant ground fault circuit interrupter (GFCI) receptacle. The self-testing receptacle is NEMA 5-15R, 2-pole, 3-wire, ground fault, rated 15A 125V at receptacle with a 20A feed thru. Features include:
  • Performs periodic self-tests to ensure integrity of GFCI protection
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
  • Patented correct wiring/trip indicator light visibly signals proper line-to-load connections - to prevent installation errors
  • Longer, wider "bridged" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • 20 amp feed-through allows full protection of downstream receptacles when wired from load side
  • 8 separate backwiring holes accept up to #10AWG stranded wire, for maximum flexibility
  • Durable, impact-resistant thermoplastic construction
  • Line terminal screws are backed out, staked, and ready to wire; load side terminals are torqued down for increased prevention of miswiring
  • Device and wallplate mounting screws are captive, speeding installation time
  • Low overall dimensions makes for more room to wire in "crowded box" situations
  • Color-matched and recessed Test & Reset buttons provide uniform appearance
  • Exclusive built-in wire stripper, provides backup for misplaced tools
  • Includes matching Mid-size wallplate, measuring 3-3/16"x4-15/16". This is an oversize plate for use with larger volume outlet boxes or to hide surface irregularities
  • Trip threshold: 5ma - 1ma
  • Response time: 0.025 sec.

Cross Reference:
Not Available

0.40 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping

Product Reviews
