Eaton Lt Almond Hospital Grade Self-Testing GFCI Outlet Receptacle SGFH20LA

Your Price: $26.99
SKU:
EATSGFH20LA-EA

*Same Day Shipping

QTY Available to Ship:
16

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

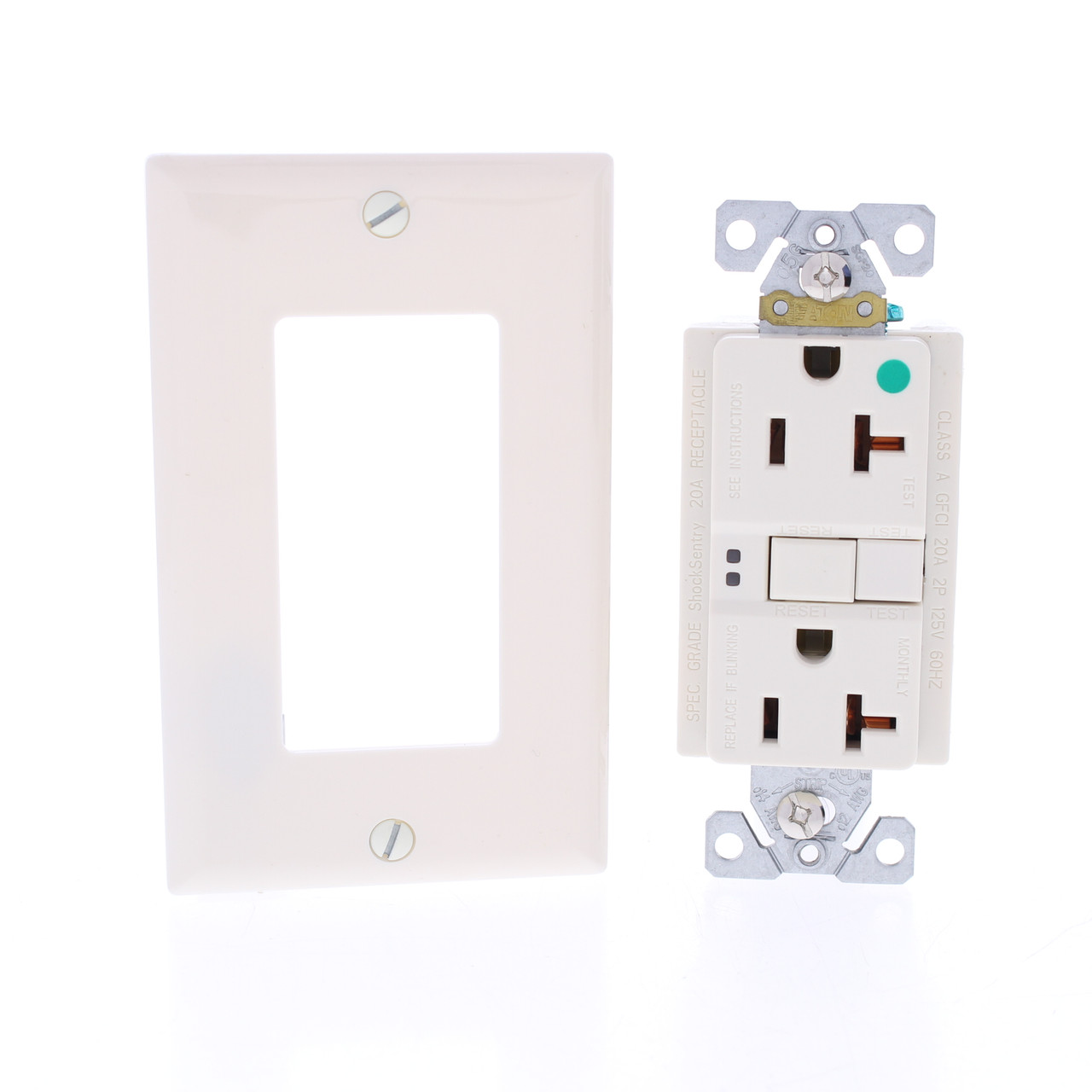

Eaton SGFH20LA light almond self-testing hospital grade GFCI receptacle with color matching standard size wallplate and LED indicators on the face. Hospital Grade, NEMA 5-20R, back and side wired, rated 20A-125V at receptacle and 20A-125V feed-through. Hospital grade devices are top of the line in their category, designed for high-abuse environments such as those found in healthcare facilities. Each is individually packaged; packaging may differ from photo. Features include:
  • Performs periodic self tests to ensure integrity of GFCI protection: if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
  • Two visual indicator LED lights on face give quick notification of a tripped or “end of life” condition
  • Line-load miswiring protection: GFCIs will not provide power downstream when wired incorrectly
  • When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection
  • Test and reset buttons are color matched to provide superior aesthetics; horizontal test/reset button alignment provides larger unobstructed area
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Longer, wider "bridge" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • Exclusive built-in wire stripper provides fast stripping of wire without tools
  • Rugged construction provides unsurpassed chemical and impact resistance
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Line side terminals are backed out and staked for fast installation
  • Tri-combo head terminal and mounting screws
  • Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
  • Meets and exceeds 10 kA short circuit testing and Underwriters Laboratories (UL) 2006 UL943 safety standards
  • Includes color matching standard size wallplate, measuring 2.75"w X 4.50"h

MPN:
SGFH20LA
Cross Reference:
Not Available
Color:
N/A
Amperage:
20A

Condition:
New
UPC:
032664742743
Weight:
0.40 LBS
