- 10 Leviton Fluorescent Lampholders T-8 T-12 Medium Bi-Pin Socket Shunted 23150
QTY Available to Ship:
8
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

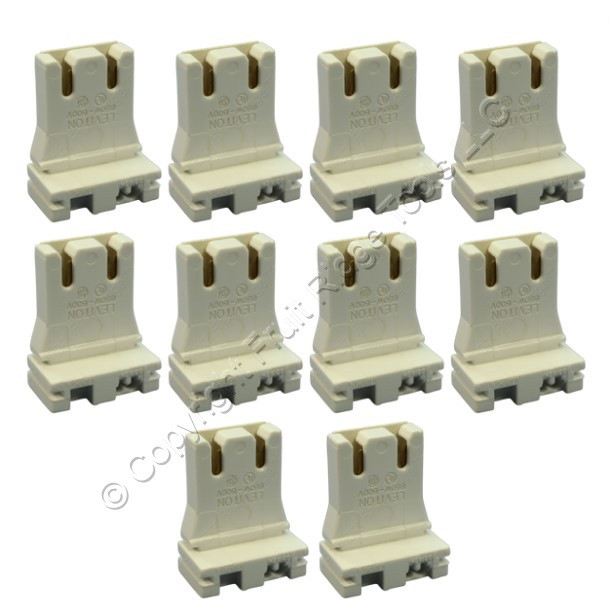

10 Leviton 23150-UR7 white fluorescent lamp holders for T-8 or T-12 lights. Medium bi-pin straight lampholder with internal shunt connection. Bulk packed loose with no individual packaging or instructions. Features include:
- Medium Bi-Pin socket for T-8 or T-12 fluorescent lamps - G13 base
- Recessed wire wells completely enclose conductor, insulating against shorts
- Multiple terminal slots permit double connections at each contact
- Specially designed for use with electronic ballasts
- Provides easier fixture assembly by eliminating need for jumper-wire
- Large �S� identifies shunted version
- Quickwire termination for 18 AWG solid wire or tinned stranded wire
- Rated 660W 600V
- For use with standard 18-20 gauge panel thicknesses - fits standard 1" wide panel openings
- Measure 1.59" high x 1.25" wide
MPN:
23150-UR7
Cross Reference:
Not Available
Color:
White
Condition:
New
UPC:
DOES NOT APPLY
Weight:
0.50 LBS
