Leviton Fluorescent Lamp Holder Light Socket T-12 T-8 Medium Bi-Pin G13 Base T8 T12 Shunted 23653-NP
Your Price: $0.99
QTY Available to Ship:
12805
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

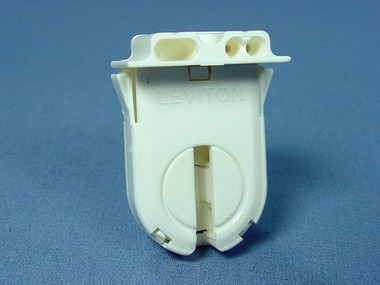

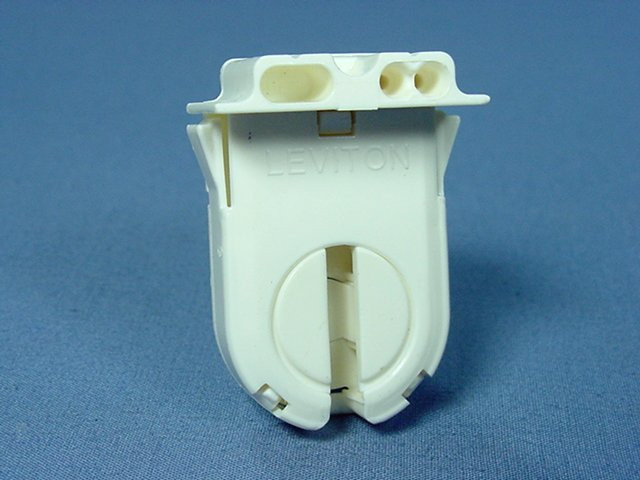

Leviton 23653-NP fluorescent lampholder for medium bi-pin T-8 or T-12 lamps. Extra low profile design with 0.63" lamp center height and no locator post. Thermoplastic lampholder with front push-in wiring ports for easier access, snap-in or slide-on mounting options, knife-edge contacts and a 4-position, positive-stop lamp-lock that makes it simple for end-users to relamp in service. Fits thin 22 to 25 gauge panels that facilitate smaller, more cost-effective fixtures. Bulk packed loose with no individual packaging or instructions. Features include:
- Medium Bi-Pin socket for T-8 fluorescent lamps - G13 base
- Extra low profile design - 0.63" lamp center height
- Easy snap-in or slide-on installation - no panel locator post
- Shunted design for instant start ballasts
- 4-position, positive-stop lamp-lock socket for easy lamp changing
- Quickwire termination for 18 AWG solid wire
- Rated 660W 600V
- Narrow fin design for use in 0.375" x 1.004" panel openings
- For standard 22-25 gauge panel thickness
MPN:
23653-NP
Cross Reference:
Not Available
Color:
White
Condition:
New
UPC:
078477155417
Weight:
0.05 LBS
