10 Cooper Hart-Lock ML-1 Midget Type Locking Connector Plugs Twist Lock NEMA ML1R 15A 125V 7464N

Your Price: $49.99

QTY Available to Ship:
37

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

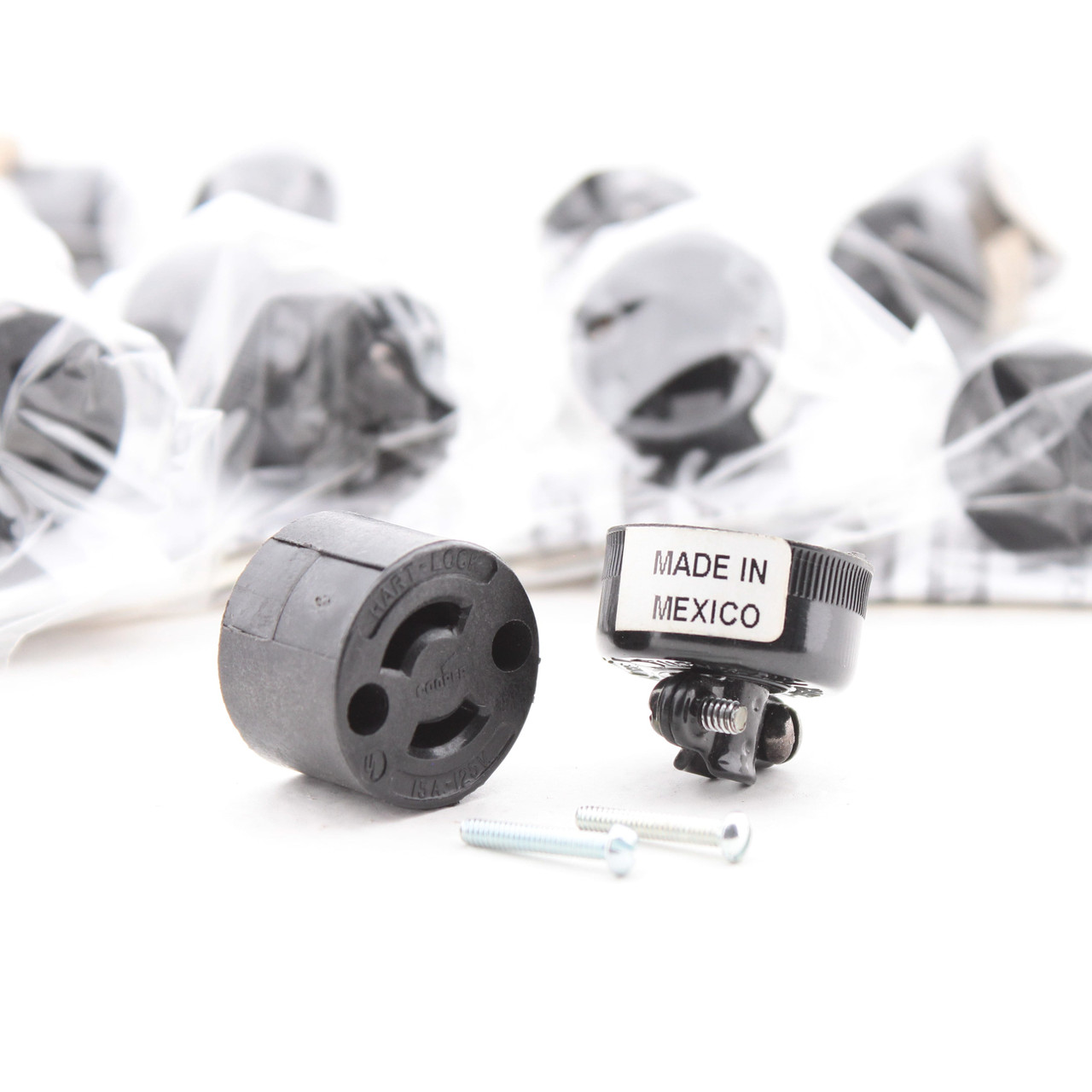

10 Cooper Hart-Lock 7464N midget locking connectors. Midget size offers a smaller form factor for limited-space applications; approximately 1" in diameter. Industrial Specification Grade, NEMA ML1R, 2-pole, 2-wire, non-grounding, rated 15A 125V. Cord grip range: .22"-.31". Terminals accommodate #18-#14 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include:
  • One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life
  • Cleat on contacts cuts oxidation when plug blade enter contact surface
  • Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
  • Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
  • Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
  • Color-coded terminal screws
  • Molded-in strip gage provides correct measurement for proper strip length of conductor
  • Captive terminal screws eliminate nuisance dropping and searching for missing screws
  • Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
  • Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
  • Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
  • Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module (12-14 in.-lbs.) to body
  • Ergonomically designed fluted body with radial gripping ridge creates an ideal surface for gripping, turning, and pulling
  • NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
  • External cord clamp utilizes deep slotted/Phillips steel screws that are backed out and positioned inside shrouded pockets to prevent slippage of screwdriver blade when tightening cord clamp screws

MPN:
7464N
Cross Reference:
Not Available
Color:
Black
Amperage:
15A

Condition:
New
UPC:
10040893031764
Weight:
0.70 LBS
