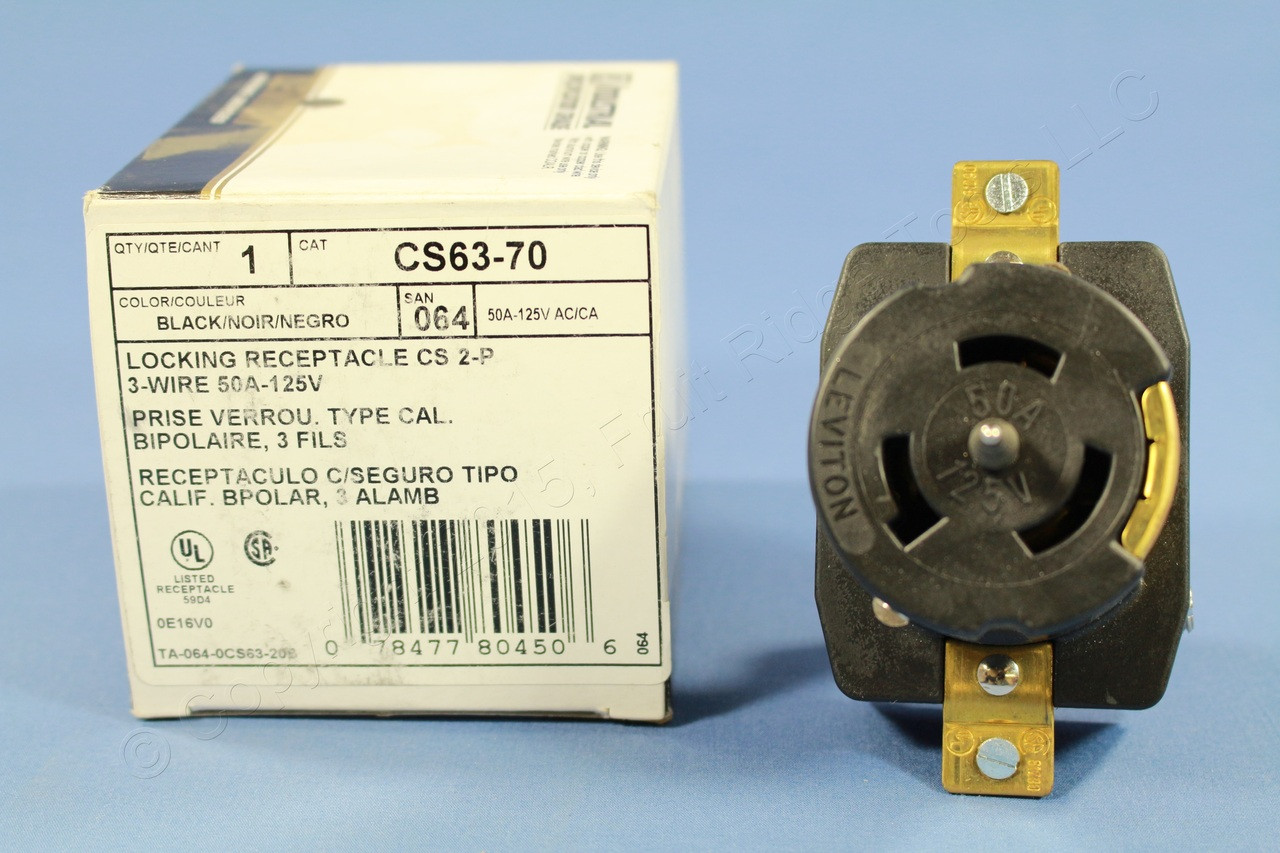

Leviton California Style Locking Receptacle Twist Lock CS Outlet 50A 125V CS63-70

Your Price: $30.00

QTY Available to Ship:

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Leviton CS63-70 locking California Style ("CS") receptacle. Industrial Specification Grade, non-NEMA (California Style), 2-pole, 3-wire, grounding, rated 50A 125V. Each is individually packaged. Features include:

Extra-thick .050" brass mounting strap
Contacts deeply seated in thick-walled face
One-piece .040" thick brass, high copper content contacts
Saddle clamp type terminals bundle stranded wire, maximizing wire/clamp surface contact
Mechanically-secured all-brass ground path
Accepts #4-#10 AWG solid or stranded conductors
Molded-in terminal identification letters
Seam between front cover and back cover far from contact arcing
Deep straight slot terminal screws

MPN:

CS63-70

Cross Reference:

Not Available

Color:

Black

Amperage:

50A

Condition:

New

UPC:

078477804506

Weight:

0.60 LBS
