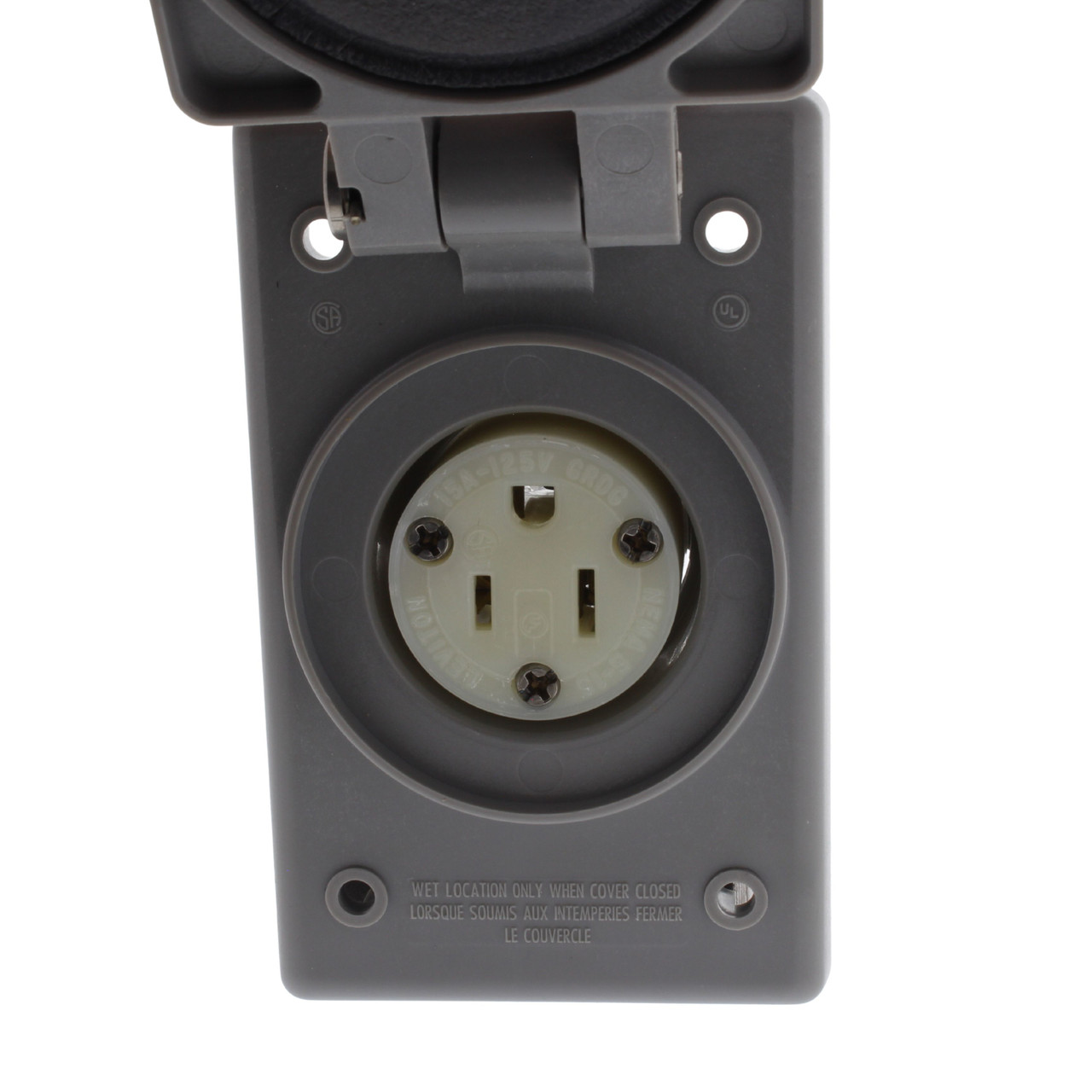

Leviton INDUSTRIAL NEMA 5-15R 5-15 Flanged Outlet Weather Resistant Cover 15A 125V 5279-FWP

Your Price: $17.99
QTY Available to Ship:
139



Product Description

Leviton 5279-CWP straight blade flanged outlet with integrated wallplate and weather-resistant cover. Industrial Specification Grade, NEMA 5-15P, 2-pole, 3-wire, grounding, rated 15A 125V. Each is individually packaged with mounting screws. Features include:
  • Glass-filled thermoplastic cover and wallplate provides outstanding impact resistance and durability
  • IP 64 Suitability rating protects against dust particles and splashing water
  • NEMA Type-3R enclosure Rating (when properly installed) ensures protection against rain, sleet and damage from external ice formations
  • Dual gaskets, one under plate and one under lid, for weather-resistant fit
  • Stainless steel external hardware resists corrosive effects of moisture
  • Large thumb-tab makes it easy to open cover with gloved hand
  • Mounts to panels or FS/FD boxes
  • Triple-wipe, heavy-duty power contacts set in deep pockets to resist damage
  • Contacts are manufactured in solid one-piece brass for superior conductivity
  • Individual wire wells accept wire or fork terminals. Clear housing allows inspection of wire termination and provides molded-in wire strip gage
  • Wire clamps move in individual chamber ? provide positive crimp lock without cutting wire strand
  • Captive, color-coded brass #8 terminal screws
  • NEMA configuration and rating molded on front

MPN:
5279-FWP
Cross Reference:
Not Available
Color:
Gray
Amperage:
15A

Condition:
New
UPC:
078477005781
Weight:
0.45 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping
