10 Leviton L20-20 Turn Locking Receptacles Turn Twist Lock Outlets NEMA L20-20R 20A 347/600V 3ØY 2460-061
Your Price: $71.25
QTY Available to Ship:
1
)
Product Description

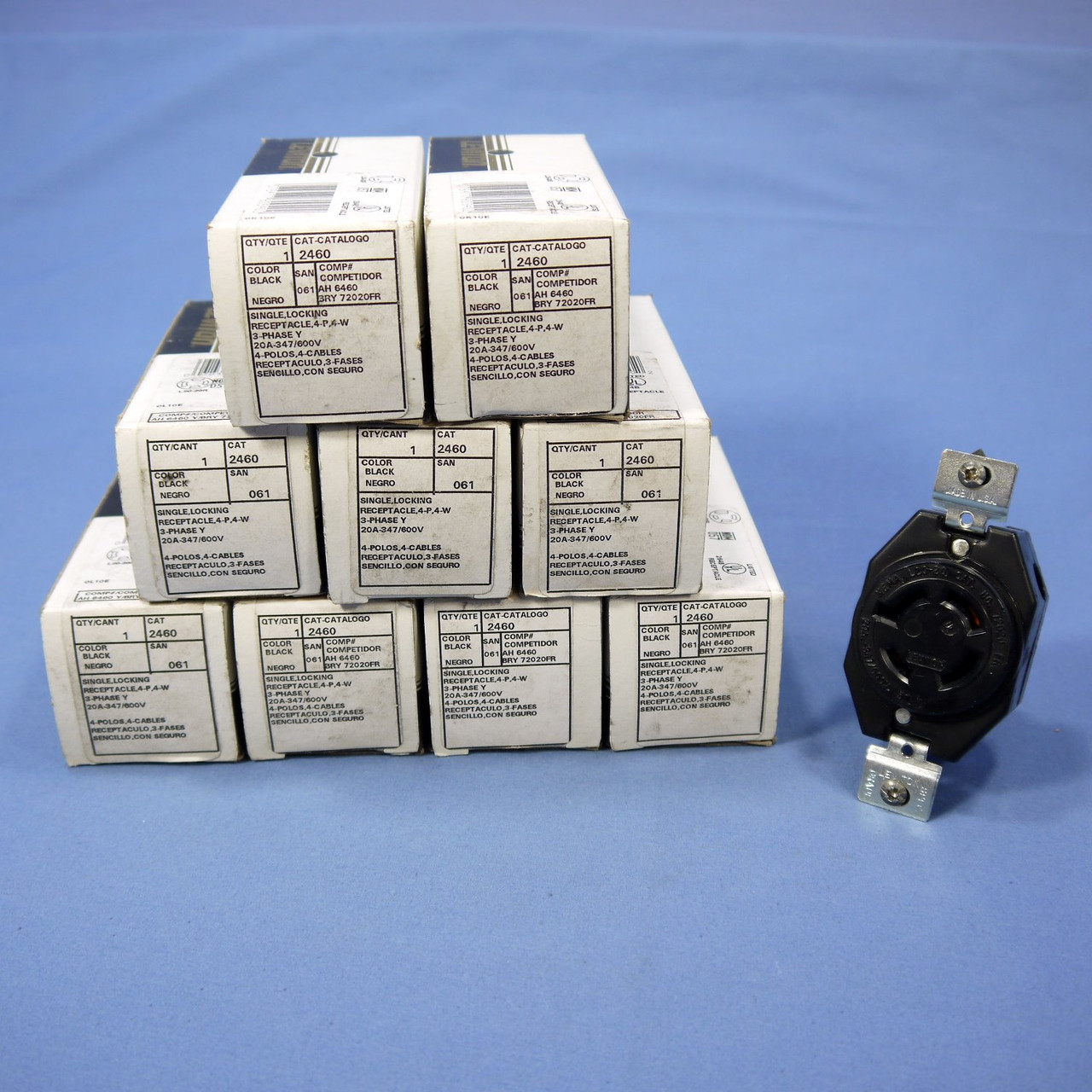

10 Leviton 2460 locking receptacles. Industrial Specification Grade, NEMA L20-20R, 4-pole, 4-wire, non-grounding, rated 20A 347/600V, 3 Phase Y. Each is individually packaged; packaging made differ from photo. Features include:
- Uncompromising industrial-grade quality for superior performance and long service life
- Terminals clearly identified to speed and simplify wiring
- Heavy-duty, impact resistant construction for top performance in the environmental extremes of grueling industrial settings
- One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
- Contacts deeply seated in thick walled face
- Extra-thick .050" mounting strap
- Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
- Molded-in terminal identification letters
- Accepts #8-#14 AWG solid or stranded conductors
- Mechanically-secured all-brass ground path
MPN:
2460
Cross Reference:
Not Available
Color:
Black
Amperage:
20A
Condition:
New
UPC:
N/A
Weight:
3.00 LBS
