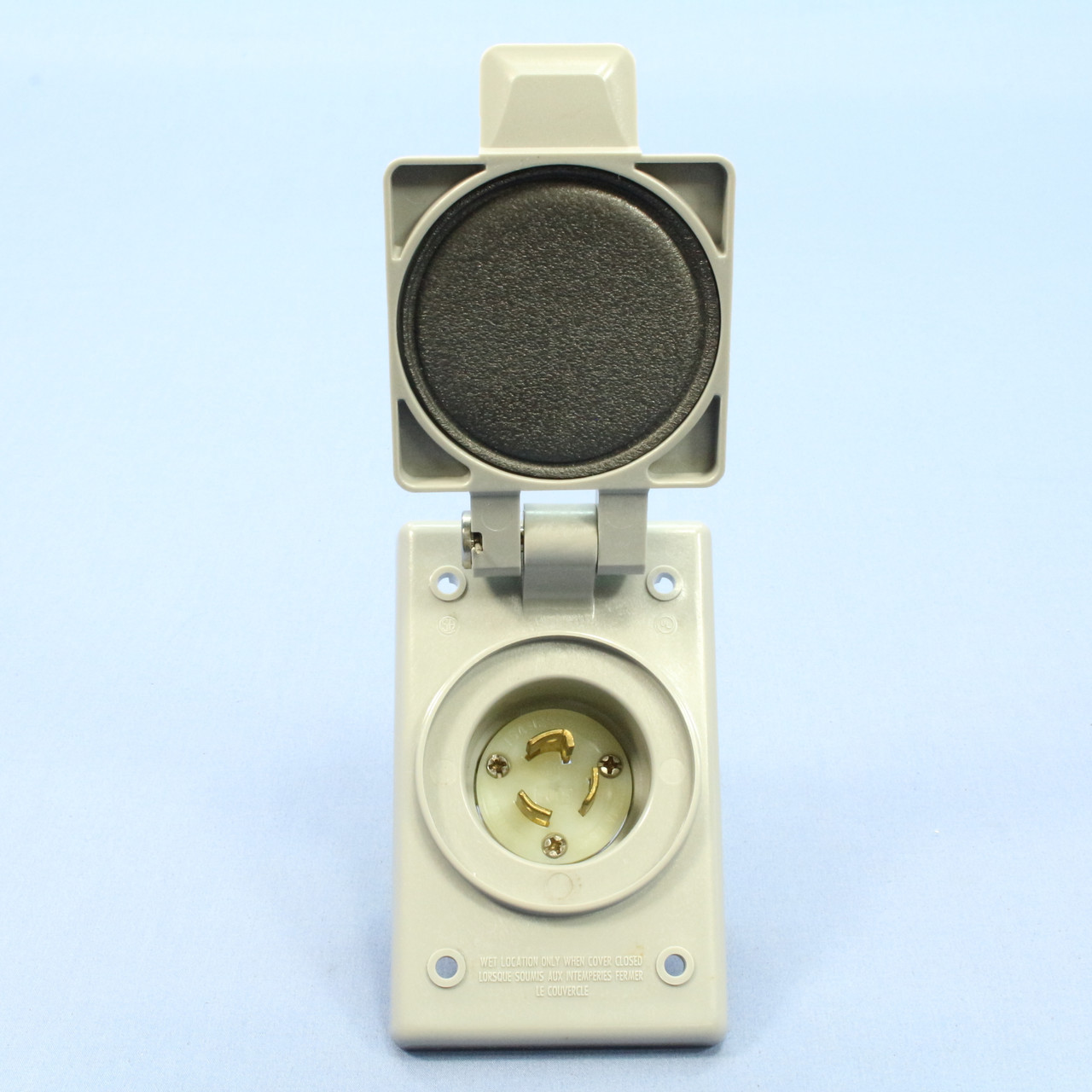

Leviton L5-15 Weather Resistant Cover Locking Flanged Inlet Plug NEMA L5-15P L5-15 4716-FWP

Your Price: $15.99
QTY Available to Ship:
132

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Leviton 4716-FWP locking flanged inlet with integrated wallplate and weather-resistant cover. Suitable for indoor and outdoor use. Industrial Grade, NEMA L5-15P, 2-pole, 3-wire, grounding, rated 15A 125V. Each is individually packaged with mounting screws. Features include:
  • Glass-filled thermoplastic cover and wallplate provides outstanding impact resistance and durability
  • IP 64 Suitability rating protects against dust particles and splashing water
  • NEMA Type-3R enclosure Rating (when properly installed) ensures protection against rain, sleet and damage from external ice formations
  • Dual gaskets, one under plate and one under lid, for weather-resistant fit
  • Stainless steel external hardware resists corrosive effects of moisture
  • Large thumb-tab makes it easy to open cover with gloved hand
  • Mounts to panels or FS/FD boxes
  • Solid brass blades are fitted and held tightly and securely in place
  • Individual wire wells accept wire or fork terminals. Clear housing allows inspection of wire termination and provides molded-in wire strip gage
  • Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
  • Transparent wiring chambers provide a means of visual inspection of conductors and terminals
  • Wire clamps move in individual chamber ? provide positive crimp lock without cutting wire strand
  • Captive, color-coded brass #8 terminal screws
  • Captive terminal screws eliminate nuisance dropping and searching for missing screws
  • Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
  • Molded-in strip gage provides correct measurement for proper strip length of conductor
  • NEMA configuration and rating molded on front

MPN:
4716-FWP
Cross Reference:
Not Available
Color:
Gray
Amperage:
15A

Condition:
New
UPC:
078477024645
Weight:
0.40 LBS
