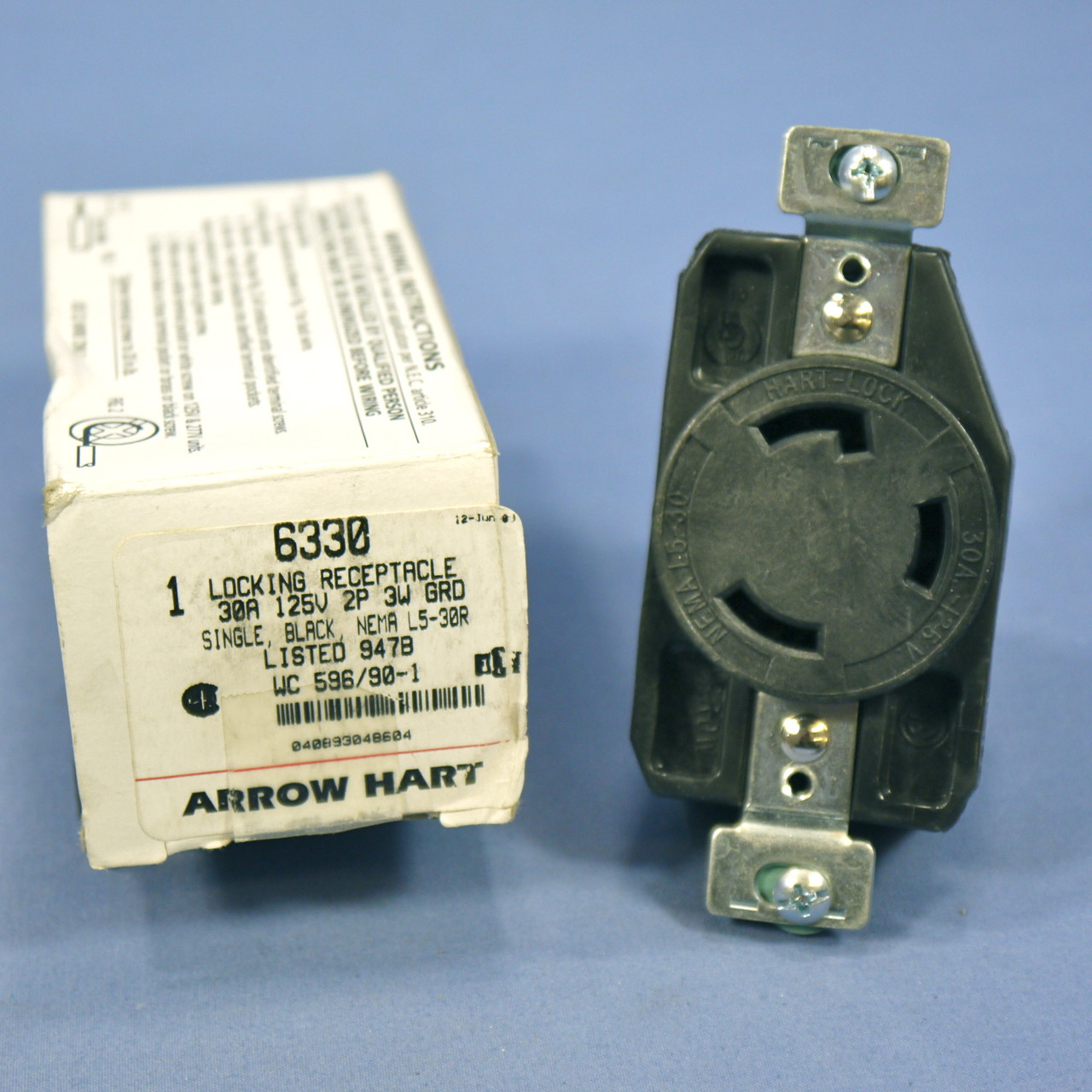

Arrow Hart L5-30 Locking Receptacle Twist Turn Lock Outlet NEMA L5-30R 30A 125V 6330

Your Price: $12.00
QTY Available to Ship:
1



Product Description

Arrow Hart 6330 locking receptacle. Industrial Specification Grade, NEMA L5-30R, 2-pole, 3-wire, grounding, rated 30A 125V. Each is individually packaged; packaging may differ from photo. Features include:
  • Uncompromising industrial-grade quality for superior performance and long service life
  • Terminals clearly identified to speed and simplify wiring
  • Heavy-duty, impact resistant construction for top performance in the environmental extremes of grueling industrial settings
  • One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
  • Contacts deeply seated in thick walled face
  • Extra-thick .050" mounting strap
  • Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
  • Molded-in terminal identification letters
  • Accepts #8-#14 AWG solid or stranded conductors
  • Mechanically-secured all-brass ground path

MPN:
6330
Cross Reference:
Not Available
Color:
Black
Amperage:
30A

Condition:
New
UPC:
040893048604
Weight:
0.35 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping
