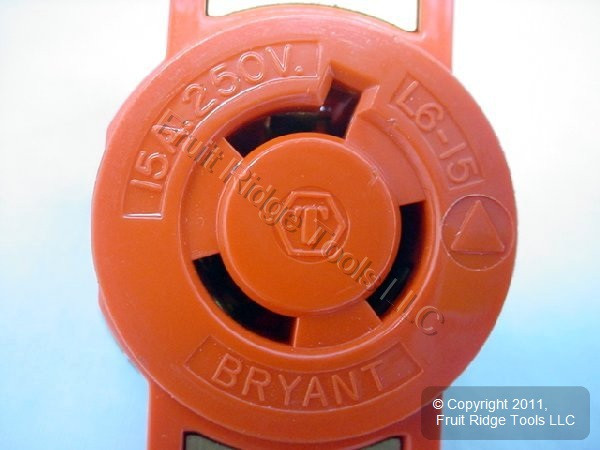

- Hubbell Byant ISOLATED GROUND L6-15 Locking Receptacle Outlet 15A 250V 70615IG
QTY Available to Ship:
1
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
Product Description
Hubbell/Bryant 70615FR locking receptacle. It is Tech-Spec Industrial Grade, NEMA L6-15R, 2-pole, 3-wire, isolated ground, 15A 250V. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems modern electronics. Each is individually packaged with instructions. Packaging may differ from photo. Features include:
- One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
- Thick wall construction provides terminal isolation and strong support for current-carrying parts
- Base is molded of rugged reinforced thermoplastic polyester to minimize heat buildup and resist breakage
- Heavy-duty mounting straps. Wide width design assures secure assembly
- NEMA line number and rating are molded into face for easy identification
- Face is molded of high-impact nylon to resist breakage
- Space-saving design allows more room in box for wiring
- Both mounting straps are grounded for safe installation
- Captive, combination Phillips/slotted mounting screws
- High strength #10 bronze terminal screws resist corrosion and provide secure terminations
- Captive terminal screws are deep slotted for easy installations
- Combination back and side wiring terminals accept #14 thru #8 AWG solid or stranded copper conductors
MPN:
70615-IG
Cross Reference:
4560-IG
Color:
Orange
Amperage:
15A
Condition:
New
UPC:
DOES NOT APPLY
Weight:
0.40 LBS
