Leviton L7-30 ISO GROUND Locking Receptacle Twist Lock Outlet 30A 277V 2630-IG

Your Price: $8.99

QTY Available to Ship:

101

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

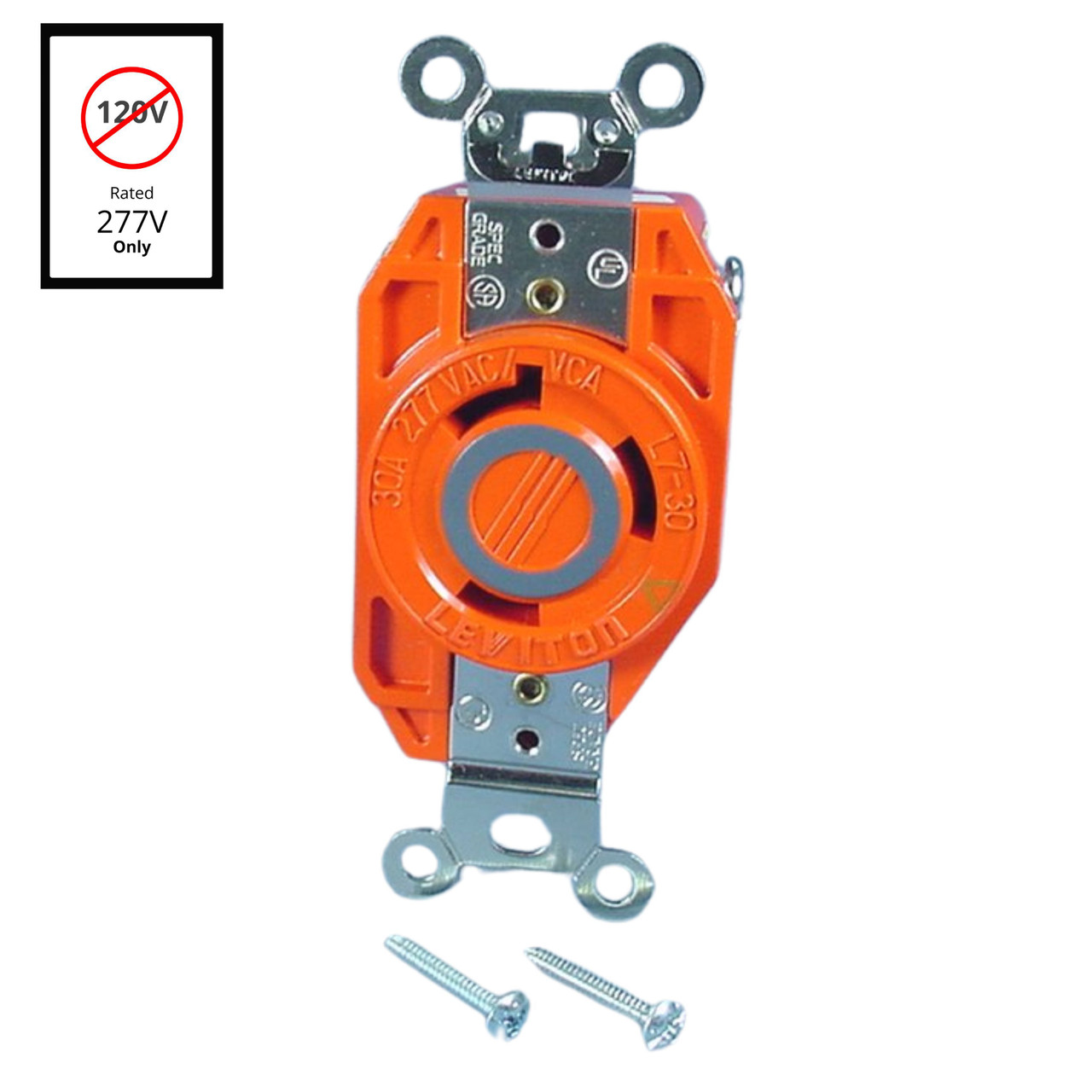

Leviton 2630-IG locking receptacle. Industrial Specification Grade, Isolated Ground, NEMA L7-30R, 2-pole, 3-wire, grounding, rated 30A 277VAC receptacles. Each is individually packaged. Isolated ground devices have a grounding terminal that is electronically isolated from the strap to eliminate electrical interference (noise) in grounding networks that can cause problems in modern electronics. Features include:

Heavy-duty construction for top performance in the environmental extremes of grueling industrial settings
Impact-resistant construction
One-piece .040" thick brass, high-copper content contacts with nickel-plated contact clamp type terminals
Contacts deeply seated in thick walled face
Terminals clearly identified to speed and simplify wiring
Extra-thick .050" mounting strap
Triple combo mounting and terminal screws (straight slot, Phillips, and Robertson)
Molded-in terminal identification letters
Accepts #8-#14 AWG solid or stranded conductors
Mechanically-secured all-brass ground path

MPN:

2630-IG

Cross Reference:

Not Available

Color:

Orange

Amperage:

30A

Condition:

New

UPC:

078477809525

Weight:

0.30 LBS
