10 Leviton Industrial Grade White Flanged Twist Turn Locking Inlet Plugs Grounding Non-NEMA 30A 250V 3334-GC

Your Price: $85.49

QTY Available to Ship:
7

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

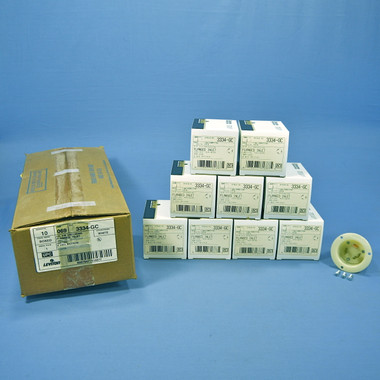

10 Leviton 3334-GC locking flanged inlets. Industrial Specification Grade, Non-NEMA, 2-pole, 3-wire, grounding, rated 30A 250V. No longer UL Listed - for replacement use only. Each is individually packaged with instructions. Packaging may differ from photo. Terminals accommodate #16-#8 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include:
  • Solid brass blades are fitted and held tightly and securely in place
  • Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
  • Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
  • Transparent wiring chambers provide a means of visual inspection of conductors and terminals
  • Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
  • Color-coded terminal screws
  • Molded-in strip gage provides correct measurement for proper strip length of conductor
  • Terminal identification letters on back cover ensure quick and accurate termination
  • Captive terminal screws eliminate nuisance dropping and searching for missing screws
  • Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
  • Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
  • Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
  • NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification

MPN:
3334-GC
Cross Reference:
Not Available
Color:
White
Amperage:
30A

Condition:
New
UPC:
078477816875
Weight:
3.10 LBS
