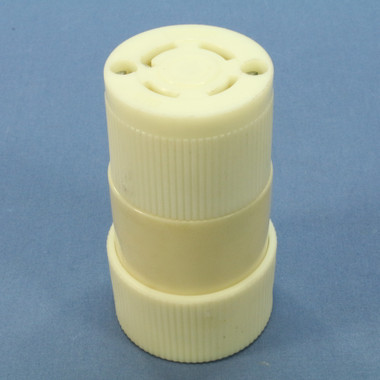

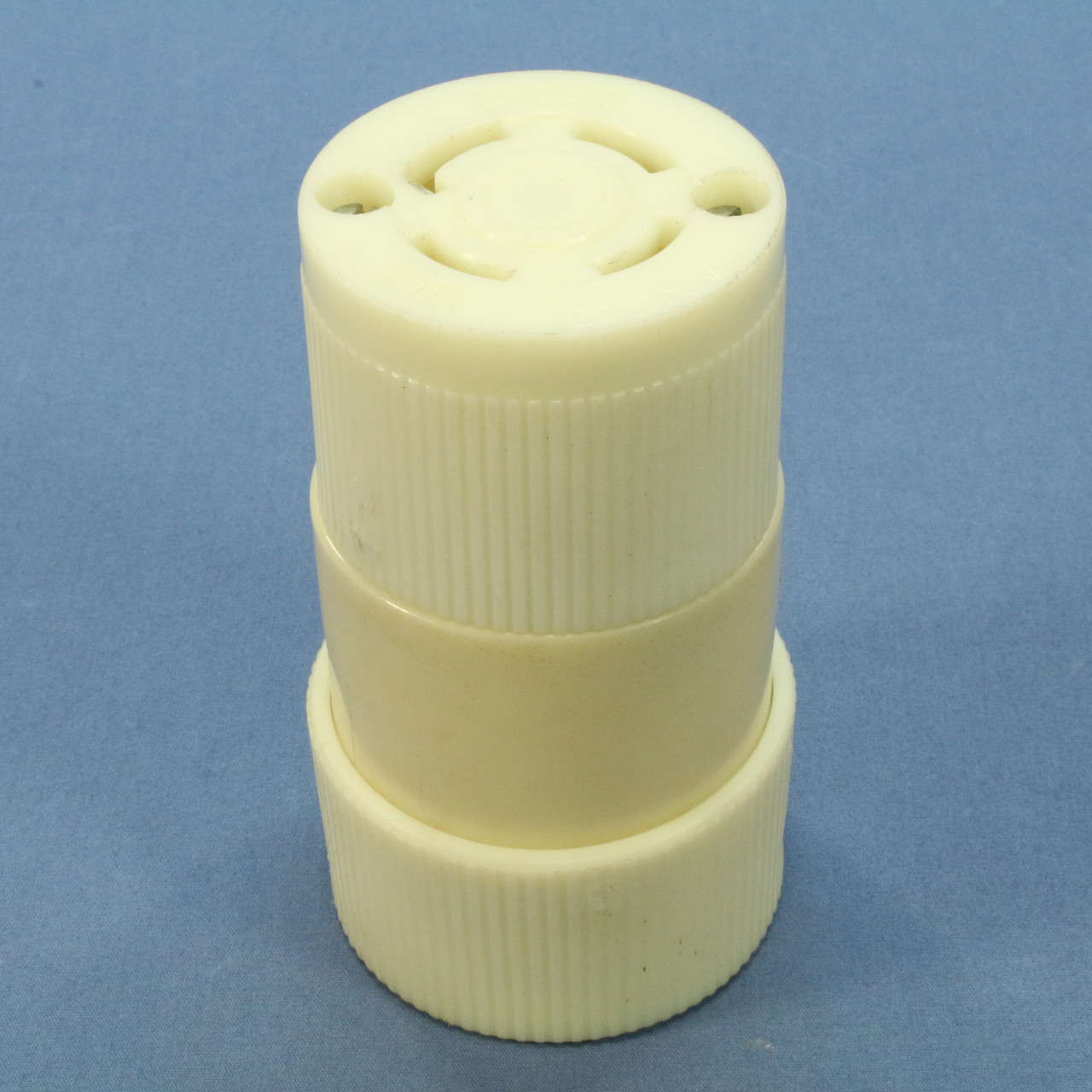

Bryant 3433 locking connector. Industrial Grade, Non-NEMA, 4-pole, 4-wire, non-grounding, rated 30A 120/280V 3-phase Y. Cord grip range: .590"-1.150". Terminals accommodate #18-#10 AWG. Bulk packed loose with no individual packaging. Features include:
- One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life
- Cleat on contacts cuts oxidation when plug blade enter contact surface
- Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
- Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
- Transparent wiring chambers provide a means of visual inspection of conductors and terminals
- Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
- Color-coded terminal screws
- Molded-in strip gage provides correct measurement for proper strip length of conductor
- Captive terminal screws eliminate nuisance dropping and searching for missing screws
- Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
- Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
- Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
- Wiring module keyed to body for easy assembly. Deep slotted/Phillips steel screws secure wiring module (12-14 in.-lbs.) to body
- Ergonomically designed fluted body with radial gripping ridge creates an ideal surface for gripping, turning, and pulling
- NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification
- External cord clamp utilizes deep slotted/Phillips steel screws that are backed out and positioned inside shrouded pockets to prevent slippage of screwdriver blade when tightening cord clamp screws
- External clamp accepts wire mesh grips. Strain relief insert is easily removed without removing cord clamp to accommodate larger cords. Cable gage identifies maximum cord size allowed with strain relief insert
