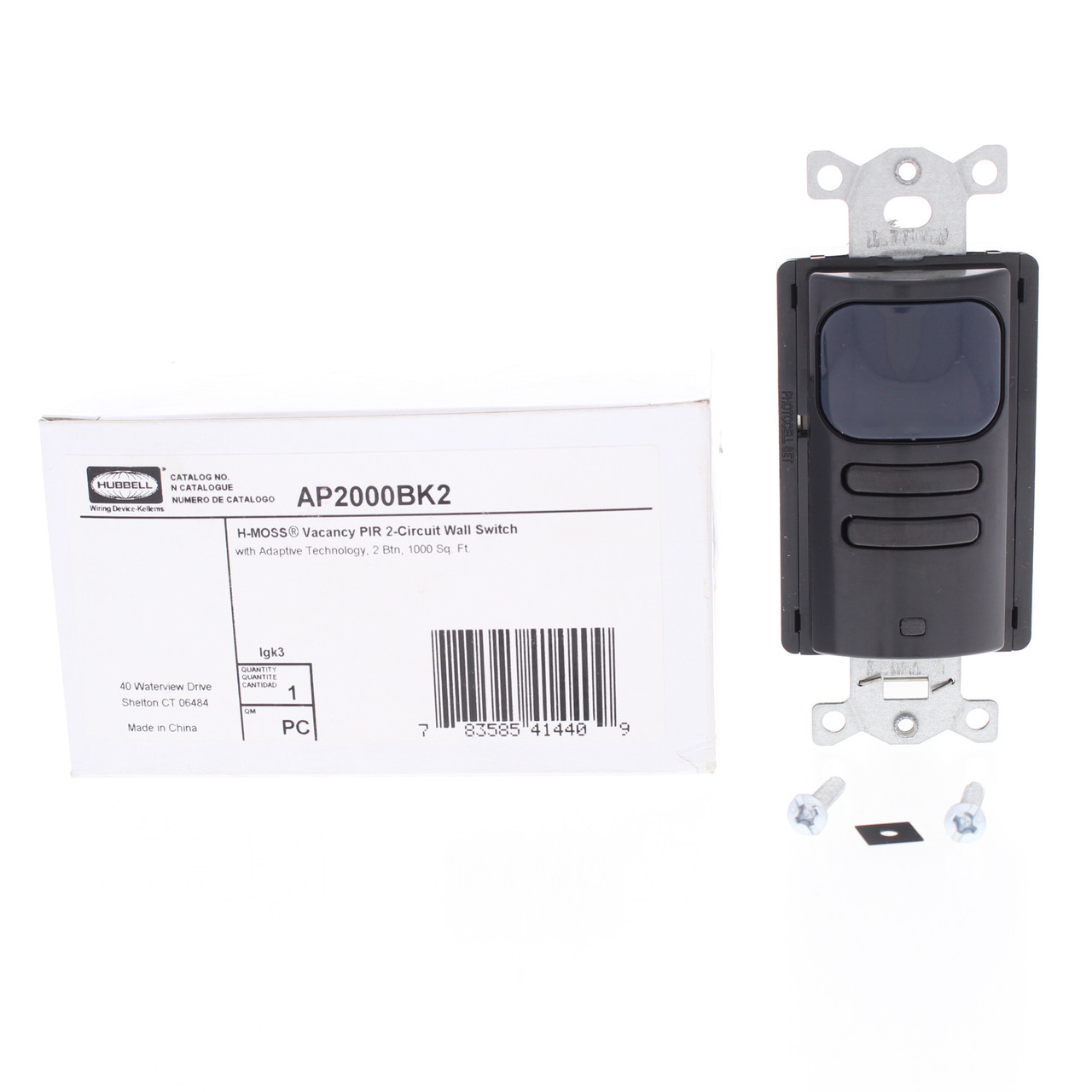

Hubbell AP2000BK2 black 2-circuit occupancy sensor switch. Dual relay sensor allows control of 2 load circuits. Typical uses include: controlling lights and a fan with different time off delay settings; or controlling a room with two banks of lighting (border/mood and center/task lighting) that require different time off delay settings. Equipped with Hubbell patented self-adaptive Intelli-DAPT technology which automatically adjusts the sensor’s sensitivity and timer settings to optimize performance based on occupancy patterns. The sensor constantly learns and adjusts appropriately. Features include:
- No neutral required
- Single pole
- Vacancy mode option - can be set to turn on automatically when motion is detected or to turn on only when the manual ON/OFF switch is pressed
- Equipped with Hubbell patented self-adaptive Intelli-DAPT technology which automatically adjusts the sensor's sensitivity and timer settings to optimize performance based on occupancy patterns.
- Manual or adaptive time delay - the amount of time that the switch will keep the lights on after motion is no longer detected can be set manually (4-30 minutes) or automatically using the built-in Intelli-DAPT technology
- Coverage: 1,000 square feet
- Load ratings: 5A LED; 800W incandescent @ 120V; 1000W fluorescent @ 120V; 1800W fluorescent @ 277V; 1/6 HP @ 120/277V
- Passive infrared sensor - excellent for small room control - requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy
- Built in photocell with manual super saver mode for daylight harvesting - assures that lights are only on while ambient light levels require it; range can be set to 10-500 foot candles
- Impact resistant hard lens is standard and color matched to the switch
- Fits standard decorator/GFCI style wallplates (purchased separately)
