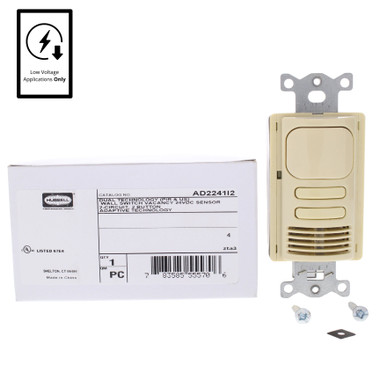

Hubbell Ivory Vacancy Sensor Switch Low Voltage PIR/US 2-Circuit 24VDC AD2241I2

Your Price: $59.99
SKU:
HUBAD2241I2-EA

*Same Day Shipping

QTY Available to Ship:
49

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Hubbell AD2241I2 ivory 2-circuit low voltage 24VDC vacancy sensor switch; requires Hubbell CU300xx series control units (purchased separately). A vacancy switch is designed to be turned ON manually and then turns OFF automatically a preset time after motion has ceased. Vacancy switches have greater savings over occupancy sensors because lights are only turned on when the user needs them. Dual relay sensor allows control of 2 load circuits. Offers an energy savings solution for use with lighting, HVAC and to comply with Automatic Receptacle Control. The sensor operates with a control unit (purchased separately) enabling line voltage and low voltage wiring to be easily separated. This makes for an ideal cost effective solution when used in smaller spaces such as private offices, conference rooms and restrooms. Equipped with Hubbell patented self-adaptive Intelli-DAPT technology which automatically adjusts the sensor’s sensitivity and timer settings to optimize performance based on occupancy patterns. The sensor constantly learns and adjusts appropriately. Features include:
  • 24VDC low voltage sensor; requires Hubbell CU300xx series control units to operate
  • Single pole
  • Vacancy sensor - lights must be turned ON manually using the switch on the face and will turn OFF automatically a preset time (4-30 minutes) after motion ceases
  • Equipped with Hubbell patented self-adaptive Intelli-DAPT technology which automatically adjusts the sensor's sensitivity and timer settings to optimize performance based on occupancy patterns.
  • Manual or adaptive time delay - the amount of time that the switch will keep the lights on after motion is no longer detected can be set manually (4/8/15/30 minutes) or automatically using the built-in Intelli-DAPT technology
  • Coverage: 1,000 square feet
  • Sensor has no load rating; circuit load rating is determined by the control units that you are using
  • Dual tech sensor - combines the individual advantages of passive infrared and ultrasonic detection. Once occupancy is detected by both technologies within the space lights are turned ON, only one technology is necessary to keep the lights ON
  • Built in photocell with manual super saver mode for daylight harvesting - assures that lights are only on while ambient light levels require it; range can be set to 10-500 foot candles
  • Impact resistant hard lens is standard and color matched to the switch
  • Fits standard decorator/GFCI style wallplates (purchased separately)

MPN:
AD2241I2
Cross Reference:
Not Available
Color:
N/A

Condition:
New
UPC:
30783585555707
Weight:
0.35 LBS
