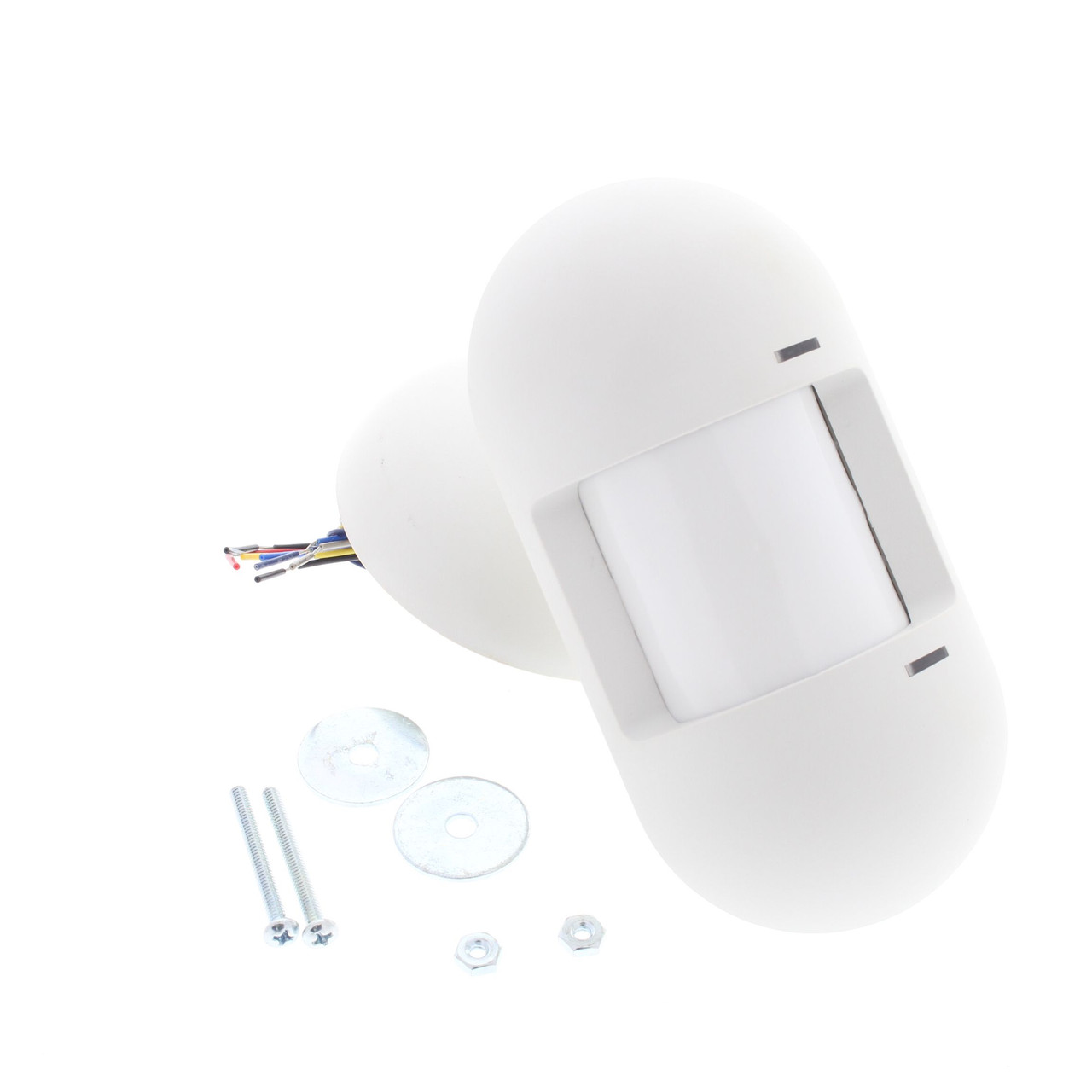

Leviton DUAL RELAY 110° Wideview Occupancy Motion Sensor ODWHB-IRW

Your Price: $60.00

QTY Available to Ship:
1



Product Description

Leviton ODWHB-IRW white, infared wide view wall mount occupancy sensor. Intended for use in parking garages, corner locations, rooms with pendant mount fixtures, and other high-ceiling or large open area rooms. The ability of this unit to observe, analyze and adjust is nothing short of astounding. Secondary relay can be used to send control signals to HVAC systems. Advanced Passive Infrared technology for highly accurate monitoring in a variety of commercial applications. All-digital self-adjusting technology provides "Install and Forget" solution for automatic lighting control. Used in conjunction with a Leviton ODP 13 power pack. Features include:
  • Ideal for conference rooms, stair-wells, high-ceiling rooms, large open areas, parking garages, storage rooms and rooms with pendant fixtures. Also ideal for corner mounting in a variety of applications
  • Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and air current compensation for reliable, long-term performance
  • Adjustable swivel neck rotates 80° vertically and 60° horizontally - can be used for ceiling or wall mounting
  • Automatic dual-mode operation adjusts to either economy or high-sensitivity mode based on actual occupancy patterns for maximum energy savings
  • Built-in circadian calendar - provides 4-week learning period where the sensor monitors occupancy to establish trends that serve as the basis for automatic operation. During peak occupancy periods the sensor remains in high-sensitivity mode and during low occupancy periods it switches to economy mode
  • 110° field of view
  • 2,500 square foot coverage with an 8-foot ceiling; 40 ft. range
  • Ambient light override option prevents lights from turning ON when there is ample natural light
  • Secondary relay can be used to send control signals to HVAC systems based on occupancy detection
  • Secondary relay: single-pole double-throw (SPDT), rated 500 mA @ 24V AC/DC, three-wire isolated relay
  • Manual Delayed-OFF time settings of 4, 8, 16, and 32 minutes, with 8-second test mode
  • Self-Adjusting Delayed-OFF time interval settings for 4 to 100 minutes - compensates for real-time occupancy patterns, preventing unnecessary ON/OFF switching
  • Non-volatile memory preserves all automatic and manual settings during power outages
  • Fast, simple installation using 3 color-coded low-voltage wires and a single mounting post
  • PLEASE NOTE: This requires 24VDC 33mA from a Leviton ODP series power pack or compatible equivalent (sold separately) - will not operate without a power pack. Power packs may be used with one or more motion sensors depending on the circuit design

MPN:
ODWWV-IRW
Cross Reference:
Not Available
Color:
White

Condition:
New
UPC:
078477036808
Weight:
0.67 LBS
