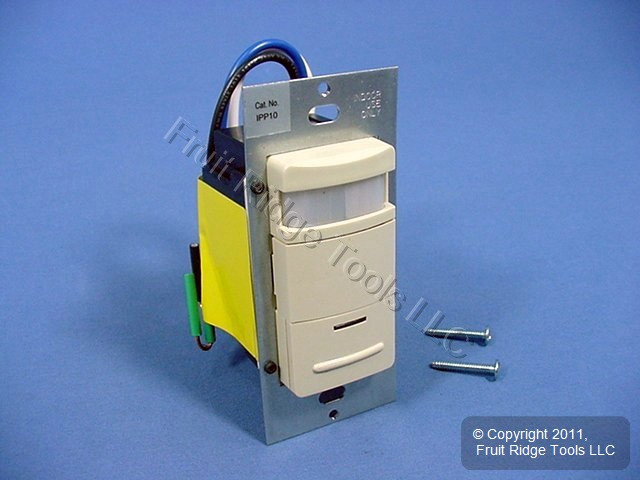

Leviton Ivory Manual-ON Motion Sensor Occupancy Switch 800W 1200VA 900 sq ft IPP10-1LI

Your Price: $26.25

QTY Available to Ship:
79

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Leviton IPP10-1LI ivory manual-ON occupancy sensor switch. Designed to act as a regular ON/OFF wall switch; however, if you forget to turn the lights off, it will do it automatically a preselected period of time after motion has ceased. Great for locations where tenants, guests, kids and anyone else who does not pay the electric bill tends to leave lights on: utility rooms, basements, kitchens, bathrooms, laundry rooms, garages, etc. Passive infrared sensor with all of the features that you need in a Manual-ON occupancy sensor: aiming ability, manual override, minor motion detection, and adjustable time delay. Features include:
  • Compatible with incandescent lamps, electronic and magnetic low-voltage ballasts, electronic and magnetic ballasts, and fans
  • Single pole - controls one light circuit from one location
  • Residential grade - rated 800W-6.67A @120V incandescent, 1200VA-10A @120V fluorescent, 1/4hp-5.8A@120V fan
  • Manual-ON/Automatic OFF operation in accordance with California Title 24 2005 requirements
  • Low-Profile design eliminates an obtrusive "scanning device" look and blends in with existing decor
  • 180 degree field-of-view provides approximately 900 square feet of coverage
  • Convenient push-button provides Manual ON/OFF light switching at any time
  • Segmented fresnel lens provides optimum sensitivity and performance. It is designed with an extensive "minor motion" area where even slight body movements will be detected
  • Horizontal field of view may be adjusted between 180 and 32 degrees of arc by using internal blinders located on either side of the lens
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds (for walking test), 10 minutes, 20 minutes and 30 minutes
  • LED Indicator Light flashes when sensor detects motion to verify detection is active
  • Unit can be used for 120V lighting. Compatibile with both electronic and magnetic ballasts or 1/2HP loads
  • Relay switches at zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
  • Fits in standard wallbox and replaces single-pole wall switch
  • Requires a neutral (white) wire connection
  • Wallplate sold separately
  • Please note that this unit is turned ON manually like a regular switch - it is not designed to turn lights ON automatically, only to turn them OFF automatically

MPN:
IPP10-1LI
Cross Reference:
Not Available
Color:
Ivory

Condition:
New
UPC:
078477239841
Weight:
0.34 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping
