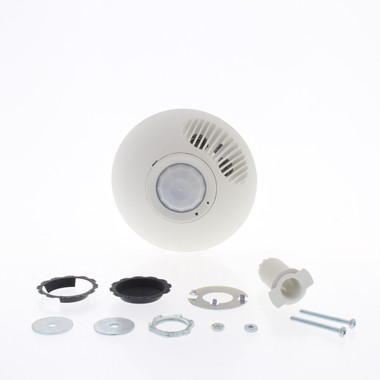

Leviton White DUAL RELAY Multi-Tech 180° Ceiling Occupancy Motion Sensor 1000 ft° ODC10-MRW

Your Price: $67.50

QTY Available to Ship:
2



Product Description

Leviton ODC10-MRW white multi-technology ceiling-mount occupancy sensor. Please note that this type of sensor must be powered by a Leviton ODP series power pack. This is a high-end sensor with the ultimate in built-in self-learning technologies - install it and forget it - the sensor does the rest. The ability of this unit to observe, analyze and adjust is nothing short of astounding. Secondary relay can be used to send control signals to HVAC systems. Advanced motion sensor combines infrared and ultrasonic technology for highly accurate monitoring without false triggering. All-digital self-adjusting technology provides "Install and Forget" solution for automatic lighting control. Features include:
  • Ideal for office areas with cubicles, general work space, warehouse and storage facilities, cafeterias and public areas in commercial facilities
  • Composite sensing - combination of IR and ultrasonic sensors greatly reduces false triggers from items such as air conditiong and corridor activity
  • Self-adjusting settings continuously analyze and adjust IR sensitivity, timer operation, and air current compensations for reliable, long-term performance
  • Automatic dual-mode operation adjusts to either economy of high sensitivity mode based on actual occupancy patterns for maximum energy savings
  • Built-in circadian calendar - provides 4-week learning period where the sensor monitors occupancy to establish trends that serve as the basis for automatic operation. During peak occupancy periods the sensor remains in high-sensitivity mode mode and during low occupancy periods it switches to economy mode
  • Ambient light override option prevents lights from turning ON when there is ample natural light
  • Manual Delayed-OFF time settings of 8, 16, and 32 minutes, with 8-second test mode
  • Secondary relay can be used to send control signals to HVAC systems based on occupancy detection
  • Secondary relay: single-pole double-throw (SPDT), rated 500 mA @ 24V AC/DC, three-wire isolated relay
  • Manual delayed-OFF time settings of 8, 16, and 32 minutes with 8 second test mode
  • Self-adjusting delayed-OFF time interval settings for 8 to 100 minutes - compensates for real-time occupancy patterns, preventing unnecessary ON/OFF switching
  • Non-volatile memory preserves all automatic and manual settings during power outages
  • 1000 square foot coverage, 180 degree field of view
  • Customizable masks provide a choice of coverage patterns, allowing you to block areas you don't want monitored
  • Operating frequency: 32kHz
  • Small unobtrusive profile: 4-1/2" diameter, 1.4" height
  • PLEASE NOTE: This requires 24VDC 33mA from a Leviton ODP series power pack or compatible equivalent (sold separately)
PLEASE NOTE: This requires 24VDC 33mA from a Leviton ODP Series Power Pack.

MPN:
ODC10-MRW
Cross Reference:
Not Available
Color:
White

Condition:
New
UPC:
078477036860
Weight:
0.65 LBS
