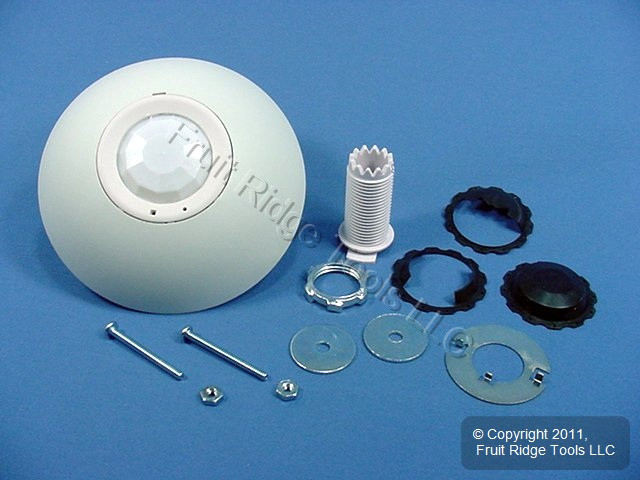

Leviton White PIR 360� DUAL RELAY Ceiling Occupancy Motion Sensor 450 ft� ODC04-IRW

Your Price: $67.50

QTY Available to Ship:

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Leviton ODC04-IRW white ceiling-mount passive infrared occupancy sensor for use with a Leviton ODP series power pack. The ability of this unit to observe, analyze and adjust is nothing short of astounding. Secondary relay can be used to send control signals to HVAC systems. Advanced Passive Infrared technology for highly accurate monitoring in a variety of commercial applications. All-digital self-adjusting technology provides "Install and Forget" solution for automatic lighting control. Features include:
  • Ideal for use in small offices, general work areas, closets, restrooms, and other small areas in commercial facilities
  • Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and air current compensation for reliable, long-term performance
  • Automatic dual-mode operation adjusts to either economy or high sensitivity mode based on actual occupancy patterns for maximum energy savings
  • Built-in circadian calendar ° provides 4-week learning period where the sensor monitors occupancy to establish trends that serve as the basis for automatic operation. During peak occupancy periods the sensor remains in high-sensitivity mode and during low occupancy periods it switches to economy mode
  • Ambient light override option prevents lights from turning ON when there is ample natural light
  • Secondary relay can be used to send control signals to HVAC systems based on occupancy detection
  • Secondary relay ° single-pole double-throw (SPDT), rated 500 mA @ 24V AC/DC, three-wire isolated relay
  • 450 square foot coverage area
  • 360 degree field of view
  • Customizable masks provide a choice of coverage patterns, allowing you to block areas you don't want monitored
  • Manual Delayed-OFF time settings of 8, 16, and 32 minutes, with 8-second test mode
  • Self-Adjusting Delayed-OFF time interval settings for 8 to 100 minutes - compensates for real-time occupancy patterns, preventing unnecessary ON/OFF switching
  • Non-volatile memory preserves all automatic and manual settings during power outages
  • Small, unobtrusive size blends in with any decor: 4.5" diameter, 1.4" height
  • Requires 24VDC 33mA from a Leviton ODP series power pack or compatible equivalent (sold separately) - will not operate without a power pack. Power packs may be used with one or more motion sensors depending on the circuit design
  • Fast, simple installation using 3 color-coded low-voltage wires and a single mounting post

Cross Reference:
Not Available

0.60 LBS
