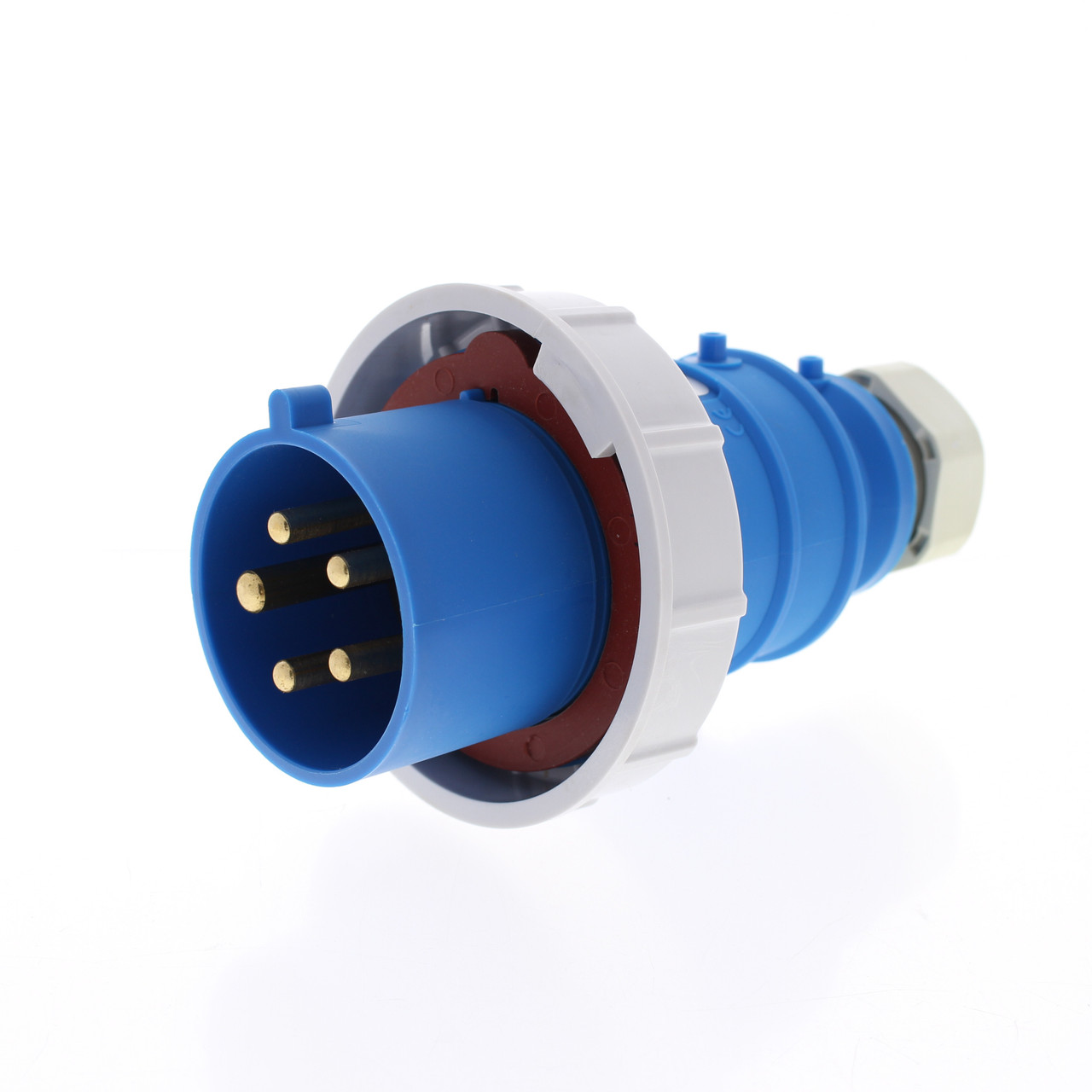

Bryant Blue Watertight IEC Pin & Sleeve Male Plug 30A 120/208V 3�Y 4P5W 530P9W

Your Price: $74.99
QTY Available to Ship:
31

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Bryant 530P9W watertight pin and sleeve plug (Bryant is a division of Hubbell). Industrial Grade, IEC 309, 4-pole, 5-wire, grounding, rated 30A 120/208V 3 Phase Y. Each is individually packaged; packaging may differ from photo. Features include:
  • External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o’clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
  • No exposed metal screws or clamps promotes safe handling and prevents snagging
  • Toughened nylon housing protects against cracking, warping, corrosion, and chemical abrasion
  • Neoprene sealing glands provide a watertight seal
  • Solid brass pins provide contact reliability, and superior conductivity. Shrouded housing helps protect pins from contaminants and abuse
  • Cord clamp screws fasten into threaded steel nuts to prevent strip-out
  • Wiring is simplified with swing-away cord clamp. Strain relief clamp assembly swings out for greater access when terminating individual conductors and securing cord clamp

MPN:
530P9W
Cross Reference:
Not Available
Color:
N/A
Amperage:
30A

Condition:
New
UPC:
781786251861
Weight:
0.95 LBS
