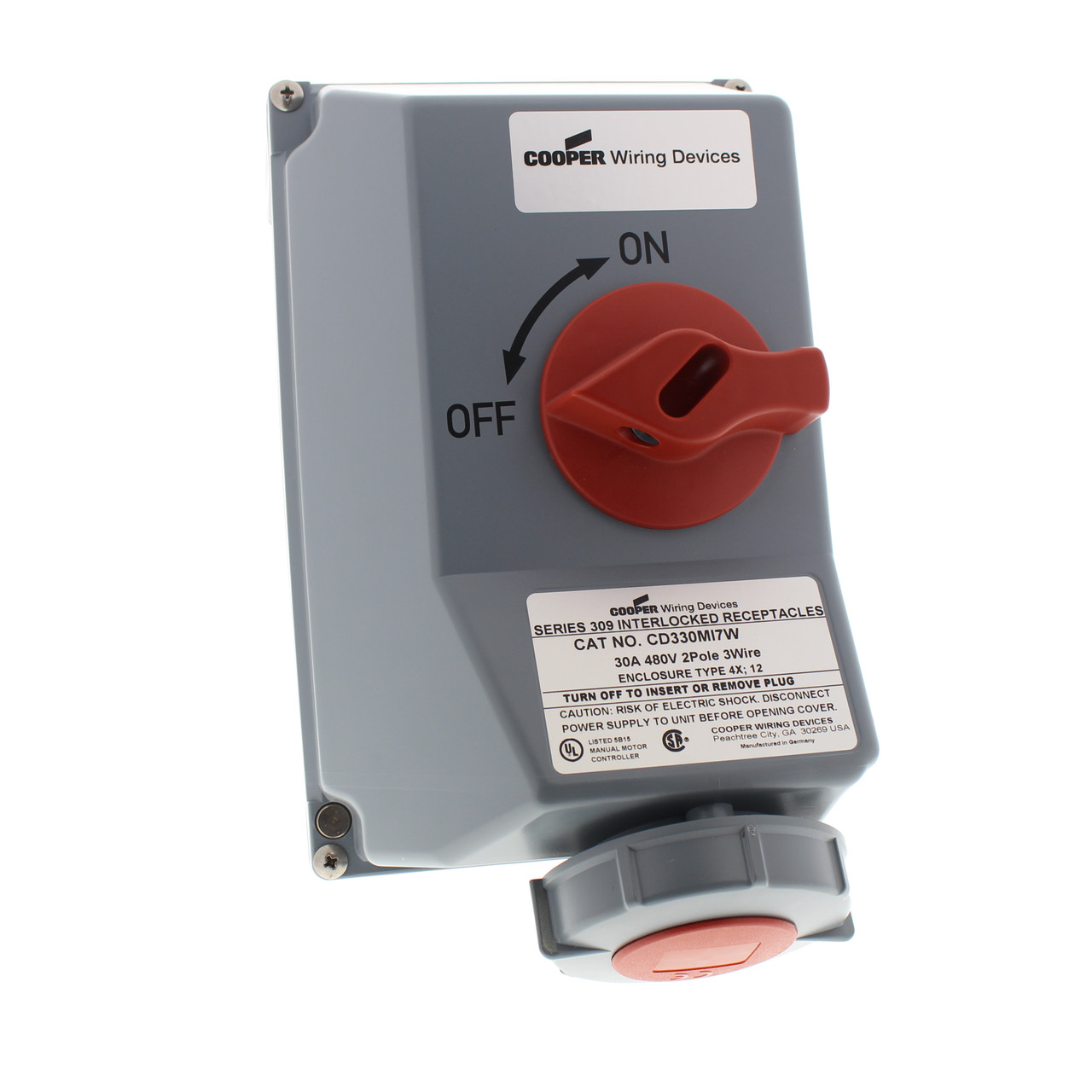

Cooper Gray Grounding Watertight Mechanical Pin & Sleeve Interlock 30A 480V 2-Pole 3-Wire 10HP CD330MI7W
Your Price: $142.50
QTY Available to Ship:
1
Product Description
Copper #CD330MI7W watertight mechanical pin and sleeve interlock. Provides an interlocked switch and overload protection within an enclosure that prevents plugs from being engaged or disengaged under load. It has a voltage rating of 480 volts and a current rating of 30 amps. The Cooper interlock has a 2-pole 3-wire configuration and a watertight design making it ideal for outdoor and industrial use. Factory-wired in a single unit for easy installation. Each is individually packaged; packaging may differ from photos. Features include:
- Compact design fits in the web of an I-beam, the smallest footprint in the industry
- Switch handles are designed to comply with OSHA lockout/tagout requirements
- Unique locking mechanism ensures that switch can only be energized when plug is fully mated
- Rugged Valox housing provides superior corrosion and impact resistance
- Hidden hinge system allows full access to internal switch terminations and provides a clean solution in 4x environments
- Poured-in seamless gasket and tongue and groove design yields the ultimate seal against moisture and contamination
- Dual mounting capability using corner mounting holes or supplied mounting feet
- Voltage Rating: 480V
- Current Rating: 30A
- Congiuration: 2-pole 3-wire
MPN:
CD330MI7W
Cross Reference:
Not Available
Color:
Gray
Amperage:
30A
Condition:
New
UPC:
012539310628
Weight:
4.95 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
