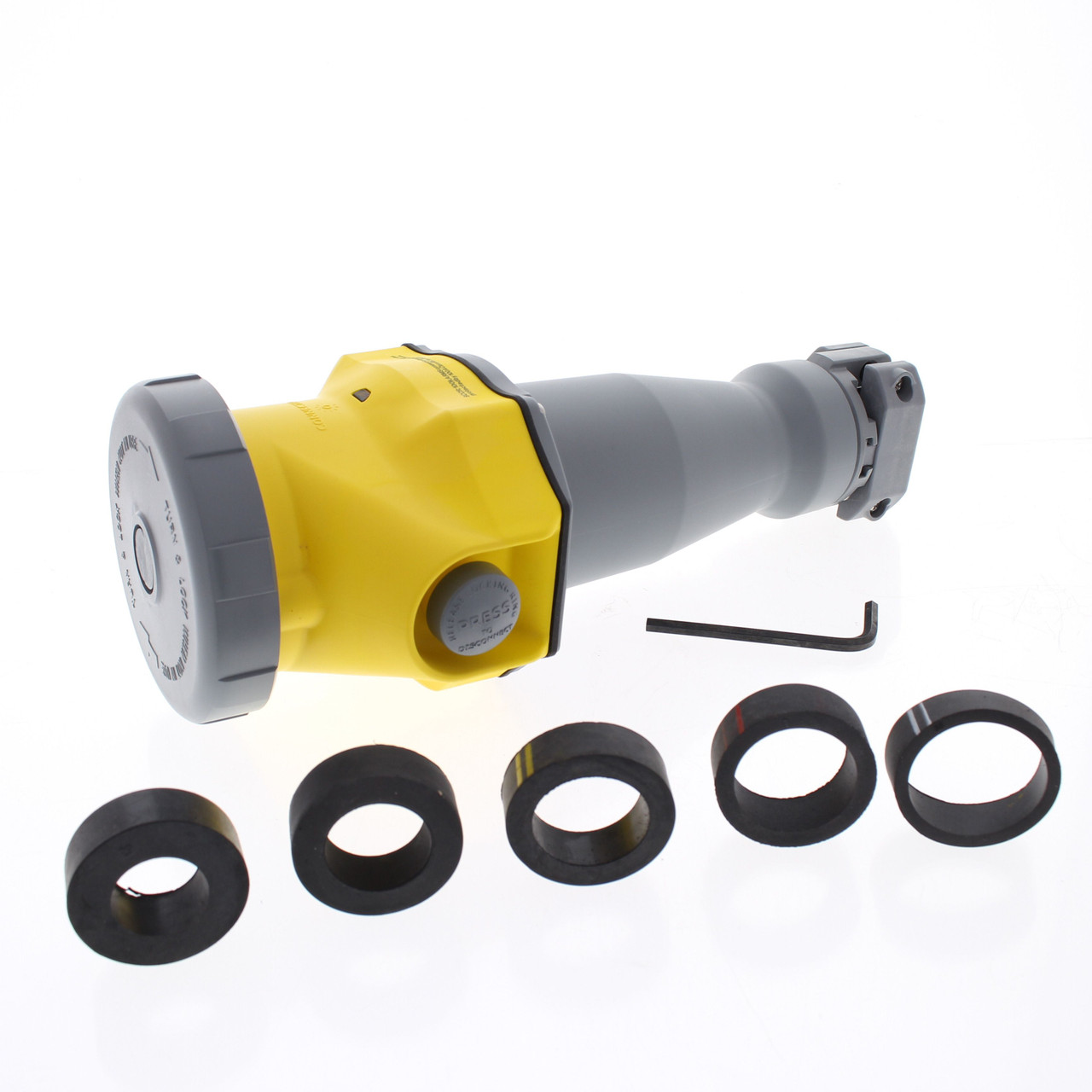

Hubbell Watertight IEC Pin & Sleeve Connector Female Plug 60A 125VAC HBLS360C4W

Your Price: $229.99
SKU:
HUBHBLS360C4W-EA

*Same Day Shipping

QTY Available to Ship:
4

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Hubbell HBLS360C4W Advantage Series watertight pin and sleeve connector. Industrial Grade, IEC 60309, 2-pole, 3-wire, grounding, rated 60A 125VAC. Each is individually packaged; packaging may differ from photo. Features of the Advantage Series include:
  • Hubbell Advantage Series devices are approved as disconnecting means for both motor circuitry and branch circuits
  • External housing key on male devices mates with keyway on female devices to provide proper alignment and simplify the connection of devices. Keyway is always located at the 6 o’clock position and is clearly visible to the user, helping to prevent the mismating of devices with different ratings
  • Rugged one-piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
  • Heavy duty external cord grips provides maximum cord retention to maintain unstressed terminations
  • Pocketed recess for screws deters slippage of the screwdriver and are conveniently located on the same side for easy installation
  • Spring loaded cover is spring-loaded to the open position, reminding users that the cover must be secured to ensure maximum ingress protection. Impact resistant cover arm compact and durable internal swing arm is fully shrouded protecting it from damage
  • Spring loaded disconnect button: oversized for easy actuation with gloved hands
  • Continuous ground engagement: unswitched feed-through ground pin is first-to-make and last-to-break followed by switched neutral and phase contact(s)
  • Highly visible and long lasting green LED lights on both sides of the device provide visual verification of power when connected

MPN:
HBLS360C4W
Cross Reference:
Not Available
Color:
N/A
Amperage:
60A

Condition:
New
UPC:
783585478500
Weight:
3.40 LBS
Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
$4.95 Flat Rate Shipping
