- Leviton Pin & Sleeve Splashproof Plug 16A 250V SP316P6
QTY Available to Ship:
8
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

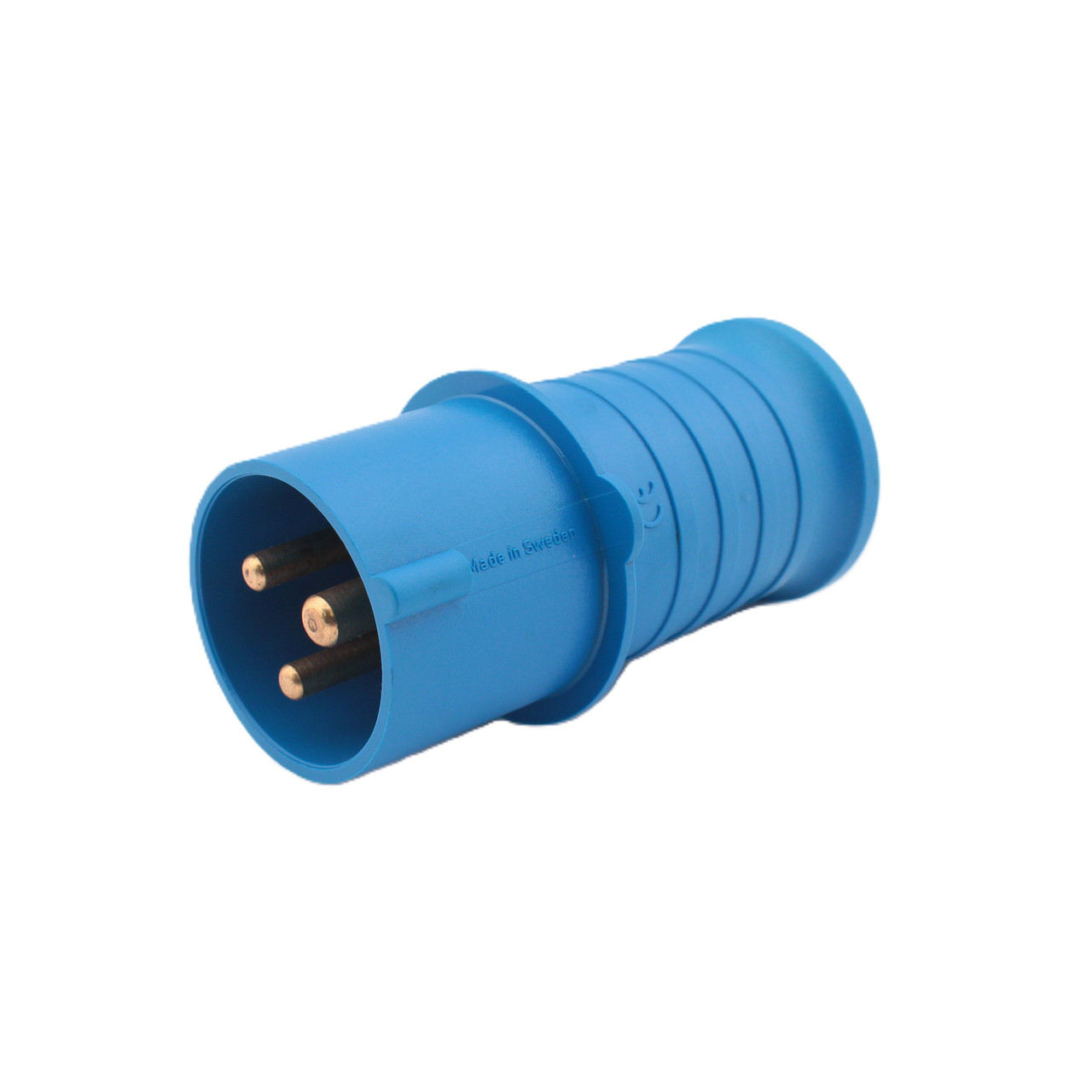

Leviton SP316P6 splashproof pin and sleeve plug. Industrial Grade, IEC 309, 2-pole, 3-wire, grounding, rated 16A 250VAC. Bulk packed loose with no individual packaging; as a result some may have minor dings. ITEM PICTURED IS FOR REFERENCE ONLY: SCRATCHES, SCUFFS, DINGS, and BLEMISHES WILL VARY FOR EACH INDIVIDUAL ITEM. Features include:
- Rugged nylon housing
- Contact carrier resists arcing and internal heat build-up
- Multiple contact points assure a continuously reliable electrical connection
- Clean brass pin construction resists corrosion, provides superior contact and low electrical resistance
- Pins are designed for manageable insertion/withdrawal force
- Rounded pin tips reduce insertion force and decrease wear on the contact surface area
- Solid brass terminal screws provide maximum clamping pressure
- Locking ring secures plug to connector or receptacle
- EPDM rubber grommet provides a precise, reliable seal at the cable entry point
- Large diameter combination head terminal screws are aligned on a single plane for easier access
- Internal hinged cord clamp adds strain relief and swings aside when wiring terminals
- Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front & back side
- Rated for both 50 and 60 Hz applications
MPN:
SP316P6
Cross Reference:
Not Available
Color:
Blue
Amperage:
16A
Condition:
New
UPC:
DOES NOT APPLY
Weight:
0.22 LBS
