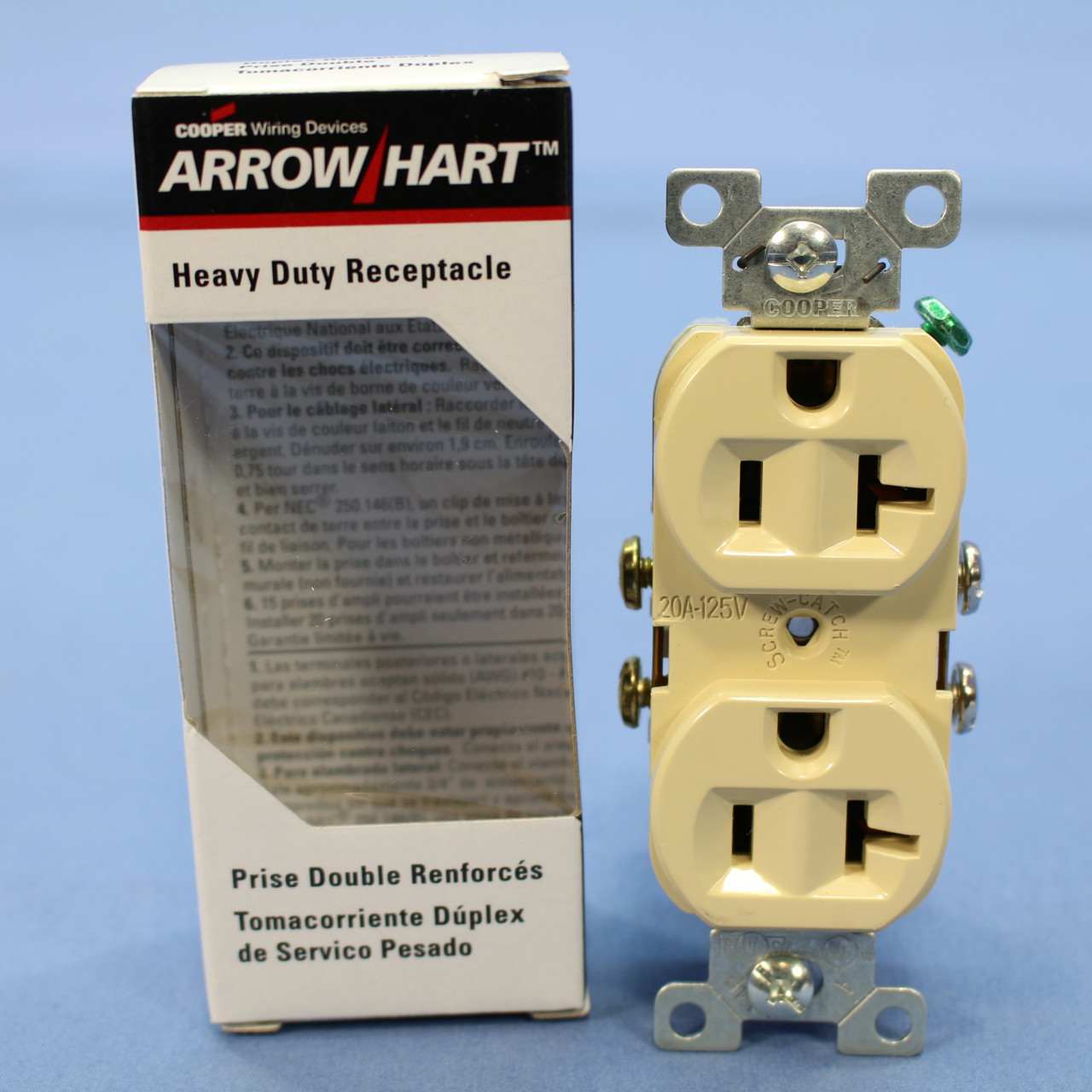

Cooper Ivory COMMERCIAL Outlet Duplex Receptacle NEMA 5-20R 20A 125V 877V Boxed

Your Price: $1.99
QTY Available to Ship:
47



Product Description

Cooper 877V ivory duplex receptacle. Commercial Specification Grade, NEMA 5-20R, 2-pole, 3-wire, self-grounding, side wired, rated 20A 125V. Each is individually packaged; packaging may differ from photo. Features include:
  • Excellent plug blade retention provided by 0.032" triple-wipe brass line contacts and 0.050" brass ground
  • Sturdy compact design meets the demands of commercial specification grade performance
  • 0.035" galvanized steel, wrap-around yoke mounting strap for superior assembly security
  • Larger mounting strap increases wall board contact area, virtually eliminating "floating" installations
  • Large-head terminal screw, backed out and staked, accept No. 10 copper or copper-clad wire
  • High impact and chemical resistant nylon face
  • Mounting screws use square head tip for fast installation
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosures; it provides redundant measure of ground continuity when a jumper is used

MPN:
877V
Cross Reference:
Not Available
Color:
Ivory
Amperage:
20A

Condition:
New
UPC:
032664183508
Weight:
0.15 LBS
