Hubbell Lt Almond SnapConnect Hospital Grd Receptacle Outlet LED 15A SNAP8200LAL

Your Price: $12.99
SKU:
HUBSNAP8200LAL-EA

*Same Day Shipping

QTY Available to Ship:
4

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

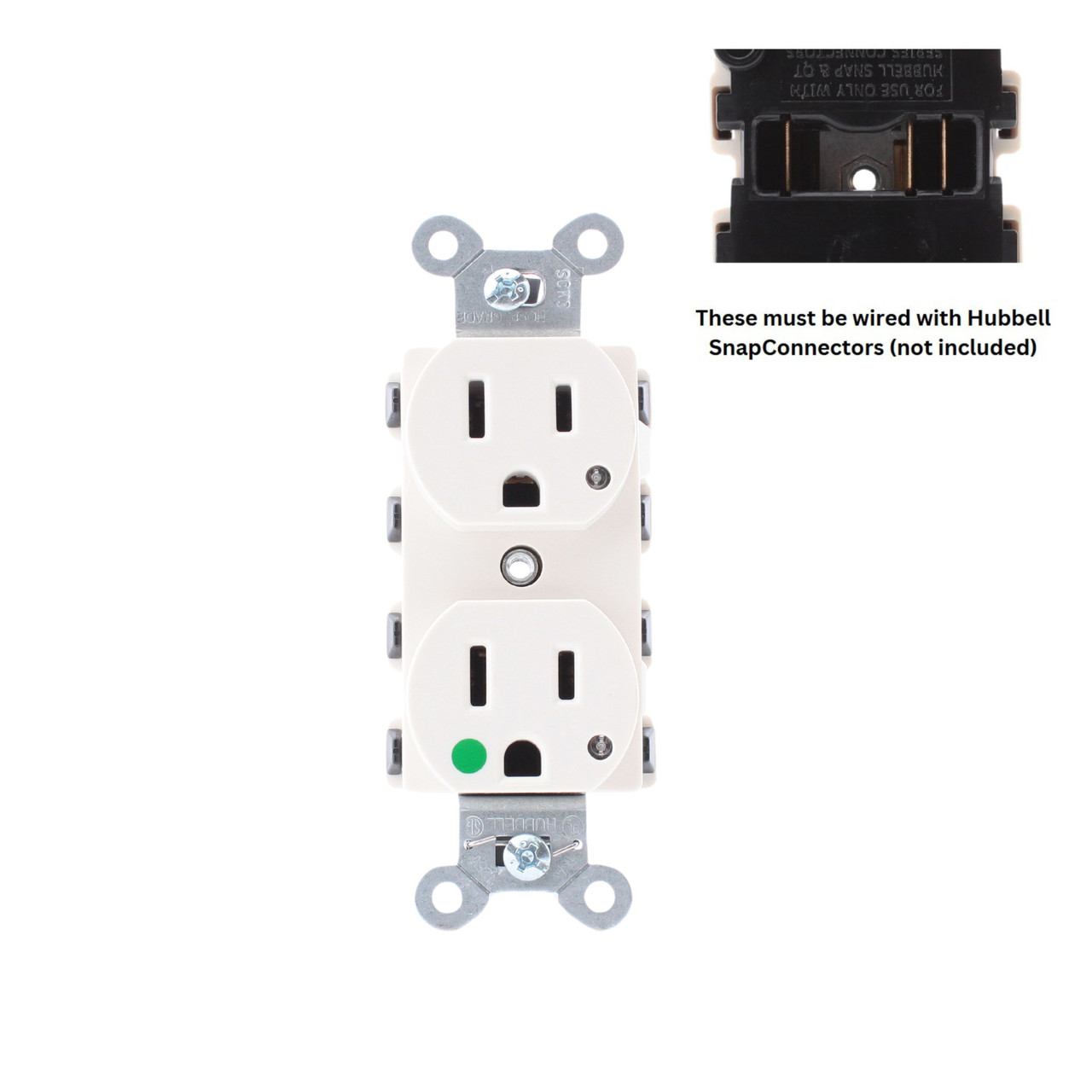

Hubbell SNAP8200LAL almond SnapConnector Hospital Grade duplex receptacle with twin LED power indicators on the face. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Hospital grade, SnapConnect wired, NEMA 5-15R, 2-pole, 3-wire, grounding, rated 15A 125V. Hospital grade devices are top of the line in their category, designed for high-abuse environments such as those found in healthcare facilities. Each is individually packaged; packaging may differ from photo. Features include:
  • Twin LED indicators on the face to provide positive indication of power state
  • Abuse resistant nylon for extra heavy use applications
  • SNAPConnect eliminates exposed live parts
  • Stainless steel autoground clip
  • 2-pole, 3-wire, NEMA 5-15R, rated 15A 125V

      As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

      • SNAP1RA: Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
      • SNAP2RA: Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
      • SNAP1RNA (Assembled in USA): Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
      • SNAP2RNA (Assembled in USA): Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material

      MPN:
      SNAP8200LAL
      Cross Reference:
      M8200-PLT
      Color:
      N/A
      Amperage:
      15A

      Condition:
      New
      UPC:
      783585193236
      Weight:
      0.20 LBS
      Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
      $4.95 Flat Rate Shipping
