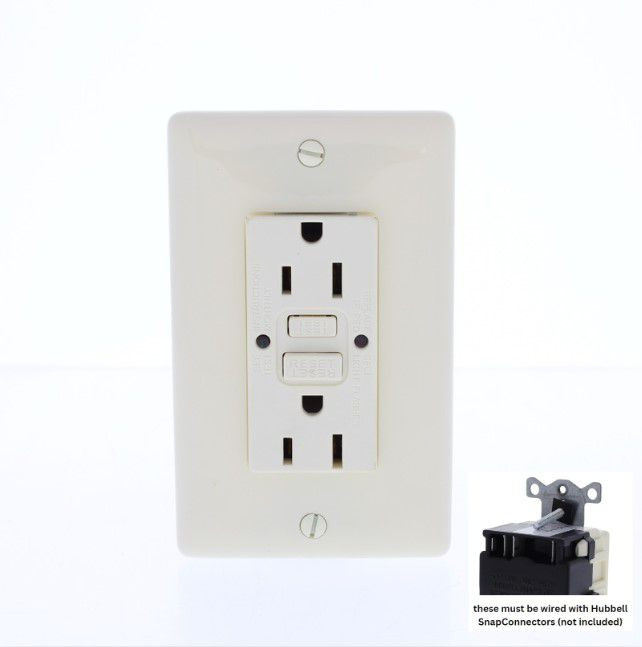

Hubbell 5-15R 15A SNAP-Connect Self-Test GFI Receptacle Outlet Almond GFRST15SNAPAL

Your Price: $12.99
SKU:
HUBGFRST15SNAPAL-EA

*Same Day Shipping

QTY Available to Ship:
6

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.


Product Description

Hubbell GFRST15SNAPAL SNAP-Connect almond Autoguard Self-Test GFCI receptacle. Please note that these do not have screw terminals; they must be wired with Hubbell Snap & QT Series connectors (purchased separately). We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. This is a specialty item intended for the professional installer, so if you are not already familiar with the SnapConnect system, you should not buy this. Commercial Grade, NEMA 5-15R, 2-Pole 3-Wire Grounding, SnapConnect right angle pigtailed terminal (purchased separately), rated 15A-125V at receptacle and 20A-125V feed-through. Hubbell AUTOGUARD GFCI receptacles continually test and monitor for "people protection capability" automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Each is individually packaged; packaging may differ from photo. Features include:
  • Outlet requires SnapConnect right angle pigtailed terminal (purchased separately) to be installed
  • Hubbell AUTOGUARD GFCI receptacles continually test and monitor for "people protection capability" automatically
  • Clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status
  • For added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur
  • TEST and RESET functions work together so that a tripped GFCI cannot be reset if GFCI circuit no longer provides ground fault protection
  • RESET button is blocked if GFCI protection has been compromised, eliminating the possibility of end-users incorrectly assuming that a reset GFCI is providing ground fault protection when it actually is not
  • Protection against line and load reversal - no power to the face or downstream receptacles if device is miswired
  • Thermoplastic nylon housing - this high impact and ultraviolet resistant construction provides resilience in harsh environments
  • Clear visual indication of GFR Status - LED indicating lights: green LED (power to the device); red LED (trip condition/ground fault condition); flashing red LED (end of life)
  • Matching standard size thermoplastic wallplate included

As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

  • SNAP1RA: Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
  • SNAP2RA: Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
  • SNAP1RNA (Assembled in USA): Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
  • SNAP2RNA (Assembled in USA): Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
  • SNAP1RAM2: Solid wire; Clear right angle terminal with 6" leads #12 AWG THHN/ THWN-2; Polycarbonate housing material with WAGO terminals
  • SNAP2RAM2: Stranded wire; Clear right angle terminal with 6" leads #12 AWG THHN/ THWN-2; Polycarbonate housing material with WAGO terminals
  • SNAP1RNAM2 (Assembled in USA): Solid wire; Clear right angle terminal with 6" leads #12 AWG THHN/ THWN-2; Polycarbonate housing material with WAGO terminals
  • SNAP2RNAM2 (Assembled in USA): Stranded wire; Clear right angle terminal with 6" leads #12 AWG THHN/ THWN-2; Polycarbonate housing material with WAGO terminals


MPN:
GFRST15SNAPAL
Cross Reference:
Not Available
Color:
N/A
Amperage:
15A

Condition:
New
UPC:
883778123528
Weight:
0.35 LBS
