New Leviton Straight Blade Almond Duplex Receptacle Outlet NEMA 5-15R 15A 125V Plus 1-Gang Unbreakable Wallplate Cover

Your Price: $1.49

QTY Available to Ship:

1910

Quantity:

Ask a question

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

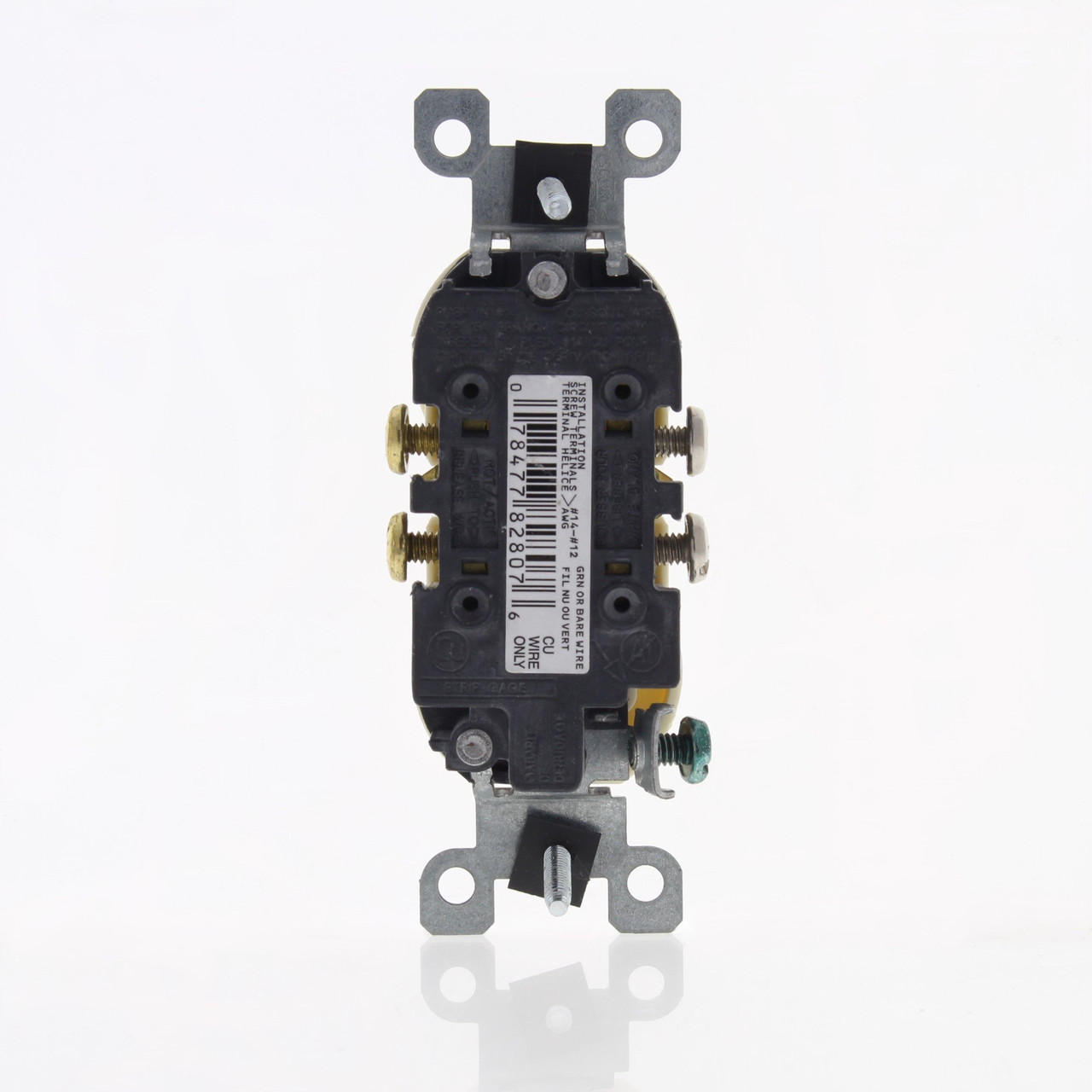

Product Description

Leviton 5320-A almond duplex receptacles with matching wallplates. Receptacles are Residential Grade, NEMA 5-15R, 2-pole, 3-wire, grounding, side wired and Quickwire, rated 15A 125V. Wallplates are Commercial Grade, Midway size, made of a high-performance unbreakable thermoplastic for high abuse environments; do not confuse it with regular residential grade wallplates which can chip and crack. Midway size measures 3.125"w X 4.875"h, 3/8" larger in both dimensions than standard size plates and is intended for use with larger volume outlet boxes or to hide irregularities in the surrounding wall. Receptacles are bulk packed loose in carton, and wallplates are packaged individually.

Receptacle Features include:

Terminal screws accept up to No. 10 copper or copper-clad wire
Terminal screws come backed out for quick and easy installation
Quickwire push-in terminals accept No. 14 solid copper wire only
Double-wipe power contacts for maximum conductivity and plug retention
Heavy-gauge, rust-resistant steel mounting strap
Shallow design for maximum wiring room
Break-off plaster ears for best flush alignment
Captive mounting screws
Break-off tabs allow easy two-circuit conversion

Wallplate Features include:

Smooth face and rounded edges resist dust accumulation
Molded thermoplastic for maximum resistance to impact, abrasion, fading and discoloration
Resistant to mechanical stress associated with high abuse applications
Individually packaged with matching mounting screws

MPN:

5320-A, PJ8-A

Cross Reference:

Not Available

Color:

N/A

Amperage:

15A

Condition:

New

UPC:

N/A

Weight:

0.15 LBS

Most orders ship same day if received by 2:00 pm EST Mon-Fri and 12:00 pm EST Sat. Some larger orders or items that require special handling may be shipped next business day.
