- Cooper Ultra Grip HOSPITAL Straight Blade Plug NEMA 5-20P 20A 125V AH8315HG
QTY Available to Ship:
126
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

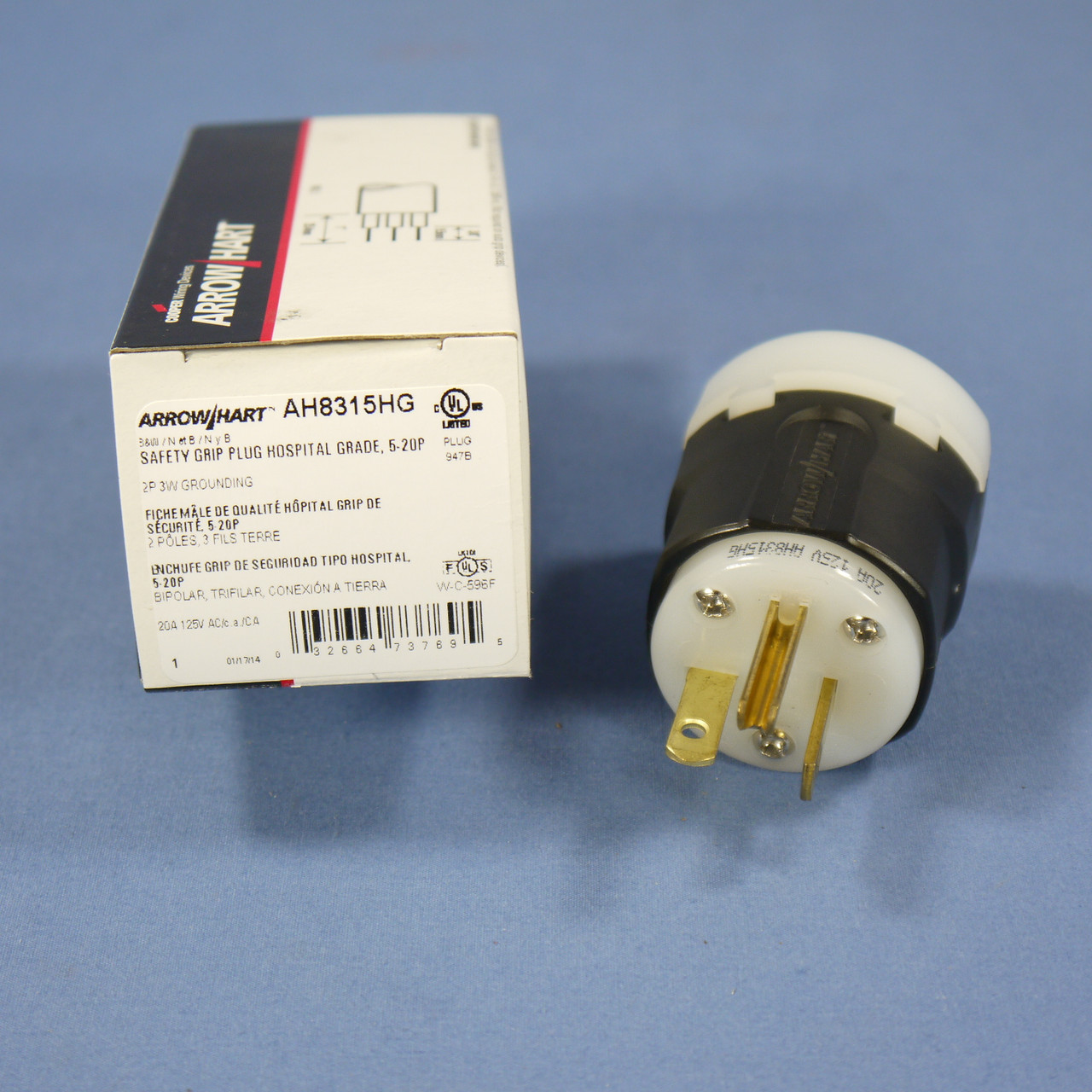

Cooper Arrow Hart AH8315HG Ultra Grip straight blade plug. Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plug and connectors offer excellent reliability and durability. A dual dovetail design provides superior cord grip retention, and the grommet allows usage across a wide range of cord diameters. Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords. Hospital Grade, NEMA 5-20P, 2-pole, 3-wire, grounding, rated 20A 125V. Hospital Grade devices are top of the line in their category, designed for the high-abuse environments typically found in healthcare, commercial and industrial facilities. Each is individually packaged; packaging may differ from photo. Features include:
- Rated and marked "Hospital Grade" and identified with a green dot symbol
- Back-wired Dead-Front construction
- EPDM gasket seals cord hole on straight plugs and connectors
- Rugged nylon body resists impact and exposure to chemicals
- High impact-resistant thermoplastic housings with easy-grip grooves
- Assembly screws are speed-threaded and captive, reducing installation time
- Solid brass plug blades are firmly embedded in body
- Terminals in individual chambers to positively insulate conductors
- Terminal screws backed out - ready for wiring
- Neoprene gasket seals around cord for added terminal protection from external elements
- Dual range cord grip provides positive cord gripping while limiting strain on conductors
- Clear terminal cover allows for easy inspection of conductors and terminations
- Terminals accommodate #16-#12 AWG
MPN:
AH8315HG
Cross Reference:
Not Available
Color:
Black & White
Amperage:
20A
Condition:
New
UPC:
032664737695
Weight:
0.25 LBS
