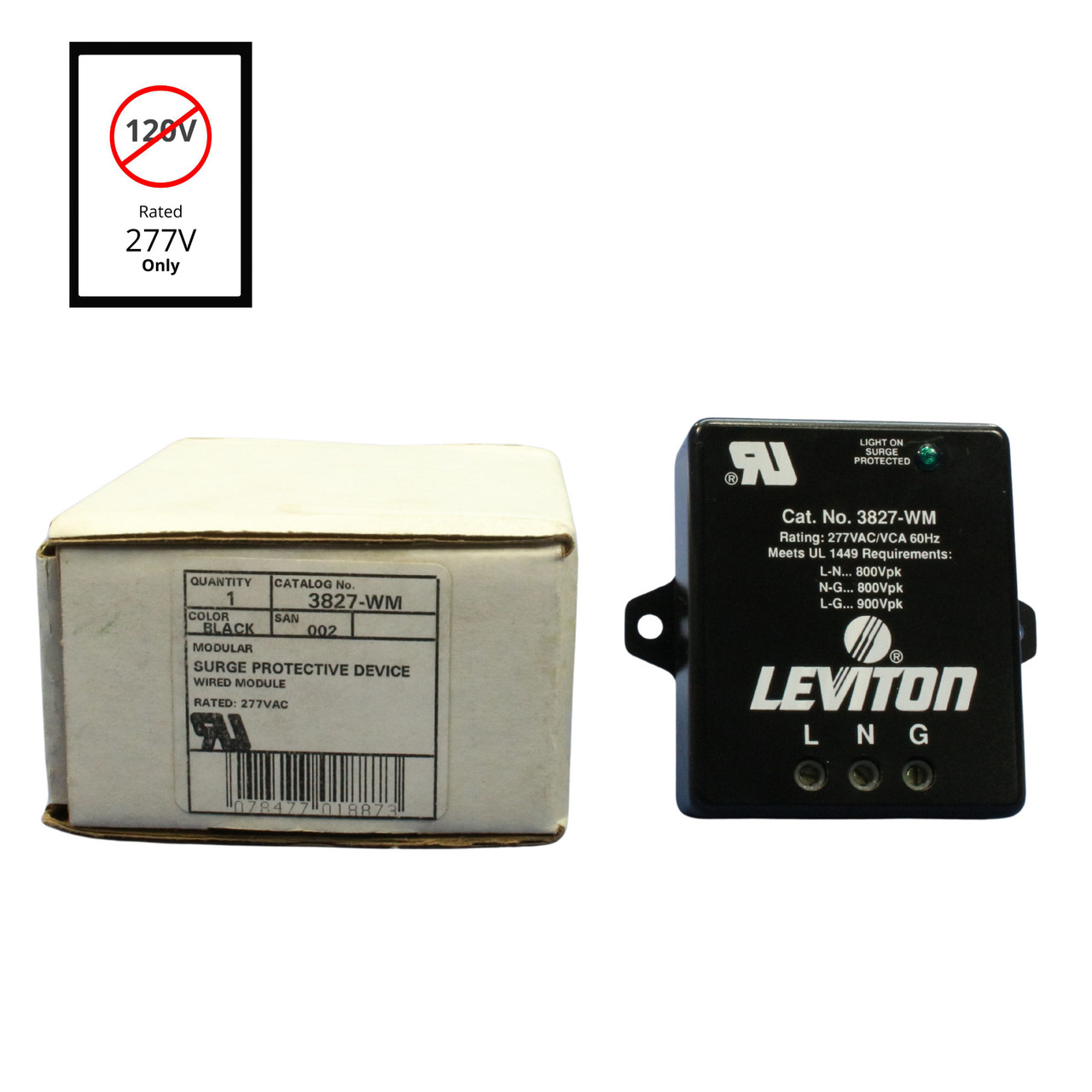

Leviton Equipment Cabinet MOV Surge Protector w/ Terminal Block 277VAC 3827-WM

Your Price: $21.00
QTY Available to Ship:
7



Product Description

Leviton 3827-WM equipment cabinet surge suppressor with terminal block wiring hookup. Allows you to build surge suppression into your next project. Intended for use with sensitive electronic equipment and appliances with solid state circuitry that would benefit from protection against damage caused by transient surges. LED is ON when surge protection is operational. Features include:
  • Mounts on standard equipment cabinets; compact "black box" styling coordinates with other mounted equipment
  • MOV-based suppression circuitry provides optimum clamping
  • Provides normal mode protection for line-to-neutral & common mode; line-to-ground & neutral-to-ground
Specifications:
  • Rated line voltage: 277V (VRMS)
  • Clamping performance per UL Standard 1449 : 800V Peak (L-N); 800V Peak (L-G); 900V Peak (N-G)
  • Rated single-pulse transient energy (10x1000's, impulse): 280 Joules
  • Noise rejection @5kHz-5MHz: -35dB

MPN:
3827-WM
Cross Reference:
Not Available
Color:
Black

Condition:
New
UPC:
078477018873
Weight:
0.30 LBS
