- Leviton Pink MODULAR Surge Protector Power Strip With Phone Module 15A 5950-STS
QTY Available to Ship:
141
Product Description

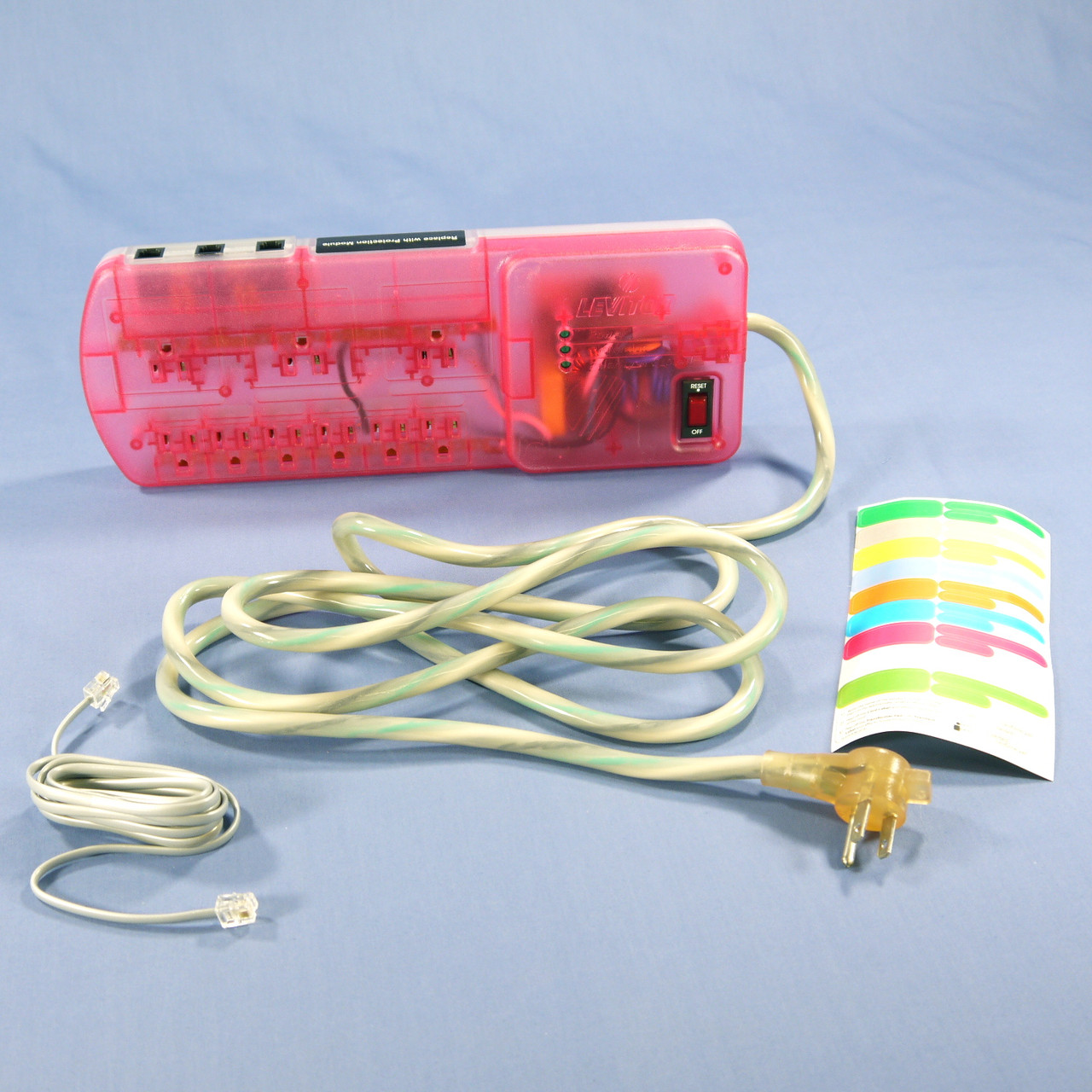

Leviton 5950-STS Pink surge suppressor power strip. This is a configurable power strip with two data/media expansion ports in it. One expansion port comes prefilled with a telephone module: 1-line in, 2-line out for your phone/fax/modem needs. The other expansion port is left empty for your future needs; just plug in the type of module you need to customize it for your particular installation. See the list of compatible expansion modules below (sold separately). Features include:
- Six standard and three transformer-pad surge protected outlets, rated 15A 125V AC
- Expandable modular design accepts a variety of plug-in modules to meet surge protection requirements as equipment changes
- Easy-to-use with six standard and three transformer-pad surge protected AC outlets
- Diagnostic indicators for Power, Protection, Polarity & Ground
- Audible alarm sounds when surge suppressor needs to be replaced
- Recessed ON/OFF switch avoids accidental turn-off
- Overload circuit breaker
- 7-1/2 ft cord with convenient right angle plug
- Line voltage: 120VAC
- Operating frequency: 60HZ
- Max. continuous operating voltage: 150V (RMS)
- Max. single-pulse transient current (8 x 20?sec, Amps peak): 92kA
- Rated single-pulse transient energy (10 x 1000?sec,Joules): 1520 Joules
- EMI/RFI Noise Rejection @50 Ohms 5kHz?100MHz: -60dB
- UL 1449 2nd Edition Clamping Rating (8 x 20?sec @ 3kA): 330V L-N, L-G, N-G
- Response time: instantaneous (<5 nanoseconds)
- 5951 - Coax and Satellite Module (2 pairs of In/Out F-connectors for satellite and cable TV systems)
- 5952 - Category 3 Ethernet/Networking Module (2 RJ45 connectors with ground pin for ethernet)
- 5953 - Coax Module (1 pair of In/Out F-connectors for cable TV systems)
- 5954 - Telephone Module (1 input, 2 ouput connectors for phone/fax/modem, also acts as splitter)
- 5955 - DSL/ADSL Module(1 input, 2 ouput connectors for DSL/ADSL line, also acts as splitter)
- 5957 - Category 5 Ethernet/Networking Module (2 RJ45 connectors with ground pin for ethernet)
- 5958 - 2-Line Telephone Module (1 input, 1 output RJ45 connector for 4-wire telephone)
- 5959 - 4-Line Telephone Module (1 input, 1 output RJ45 connector for 8-wire telephone)
MPN:
5950-STS
Cross Reference:
Not Available
Color:
Pink
Condition:
New
UPC:
078477093160
Weight:
2.70 LBS
