- New Leviton Surge Suppressor Protector Modular Panel Unit 3�Y 277/480V 52277-B3
QTY Available to Ship:
5
Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
)
Product Description

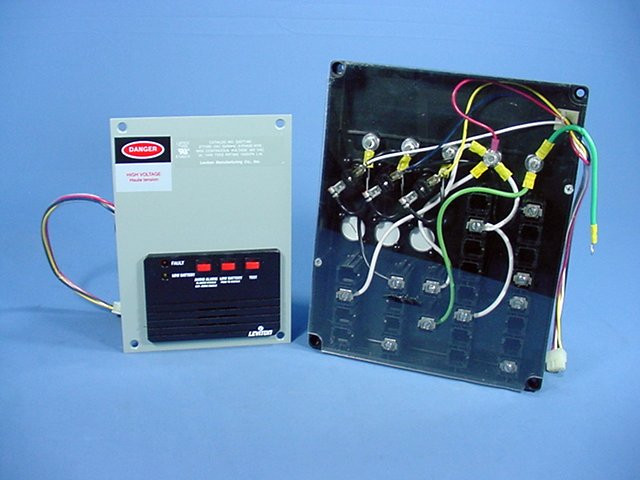

Leviton 52277-B3 surge protection unit. Special modular enclosure-less design for installation in a custom panel. Rated 277/480VAC, 3-phase WYE. Features include:
- For installation at branch panels for protection of industrial & commercial facilities
- Hybrid suppression circuitry
- Clamping envelope tracks contour of the AC sine wave
- Modular design allows easy replacement of modules without use of tools or the need to shut down the AC system
- Real-time diagnostics monitor power & suppression status for each phase & allow use of optional Remote Supervisor (52000-RS)
- Dry contacts for remote monitoring
- Provides Normal Mode (phase to neutral) and Common Mode (neutral to ground) protection for WYE-configured 3-phase AC systems
- "Series Connection" (Kelvin/feed-through) rated for 100 Amps maximum continuous line current using #3 AWC conductors
- Fuse protection for each module
- Max surge current (test w/8x20?s wave): 100KA (L-N)
- Noise rejection: -20 to -40 dB (@5K-10MHz)
- MCOV (maximum continuous operating voltage): 320VAC
- UL 1449 (2nd Ed) Impulse(6kV/500A): 800 (L-N); 1800 (L-G); 800 (N-G); 1800 (L-L)
- Click here to see additional specifications
MPN:
52277-B3
Cross Reference:
Not Available
Color:
Gray
Condition:
New
UPC:
60078477853391
Weight:
8.64 LBS
