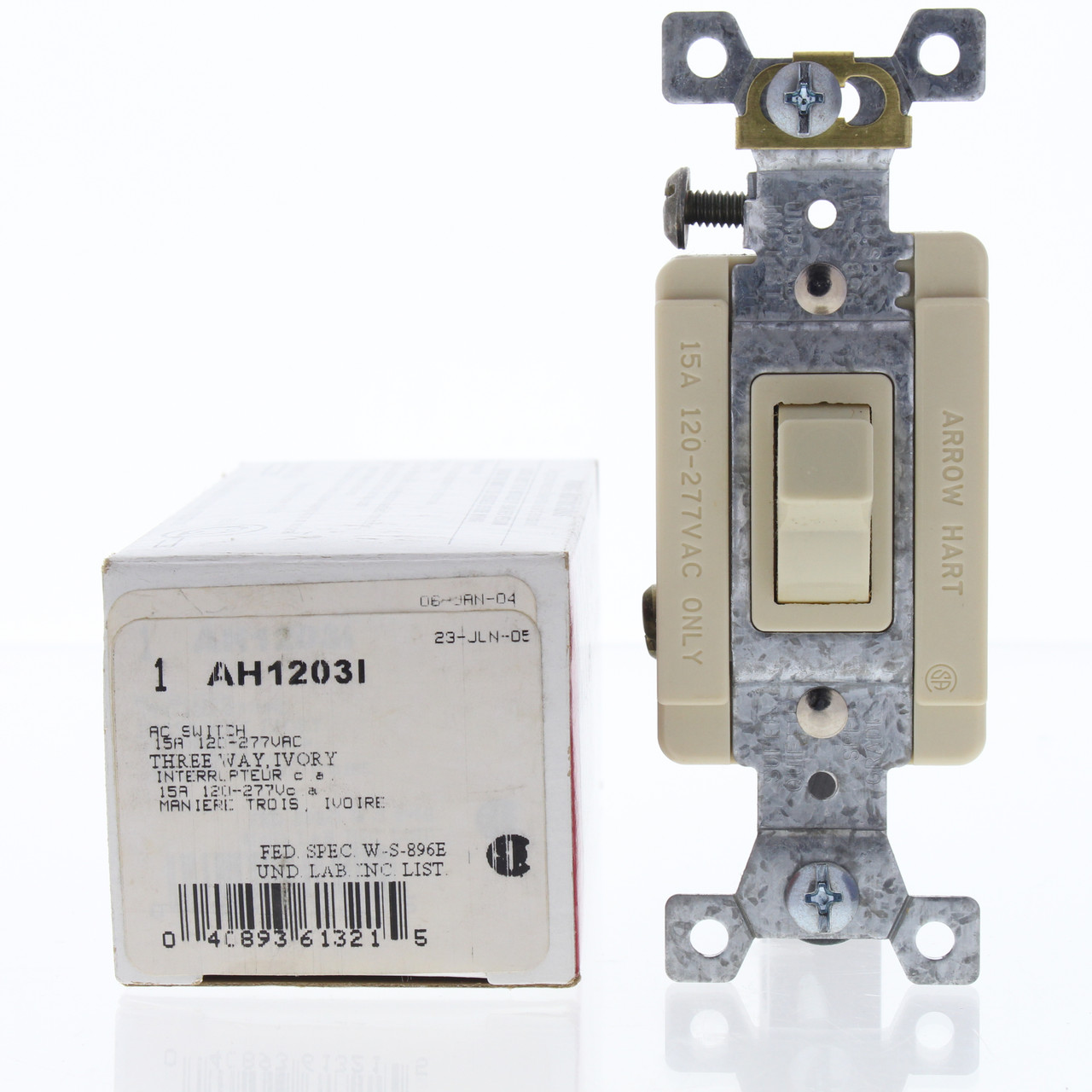

Cooper Ivory Industrial Grade Toggle Wall Light Switch 15A 120/277V 3-Way Back & Side Wired Automatic Grounding AH1203I

Your Price: $6.75

QTY Available to Ship:

Fruit Ridge Tools is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Product Description

Cooper #1203I ivory toggle wall light switch. The Cooper switch is rated at 15 amps and 120/277 volts. Industrial grade switch incorporates the most durable design elements in the industry and the horsepower rating to handle motor loads. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Ground screw terminal is standard. Measures 0.050" (1.27mm) thick steel mounting strap zinc-plated for corrosion resistance. 120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers (slot/Robertson screws in Canada where available). Each is individually packaged; packaging may differ from photos. Features include:
  • Rugged thermoplastic top and bottom housing provides durability and strength
  • Back and side wire terminals accept up to #10 solid or stranded wire
  • Dual back-wire holes for maximum feed-through wiring flexibility
  • One-piece brass contact arm assures proper contact for low-resistance switching
  • Automatic grounding eliminates need for bonding jumper in metal enclosures
  • Tri-combo terminal and mounting screws for flexibility in installation
  • Rated at 15 amps and 120/277 volts

Cross Reference:
Not Available

0.25 LBS
