Cooper Brown Momentary Contact Grounding Heavy Duty Double Pole Toggle Switch 30A 120/277V B&S 2-Pole 1262-1B

Your Price: $21.00

QTY Available to Ship:
15



Product Description

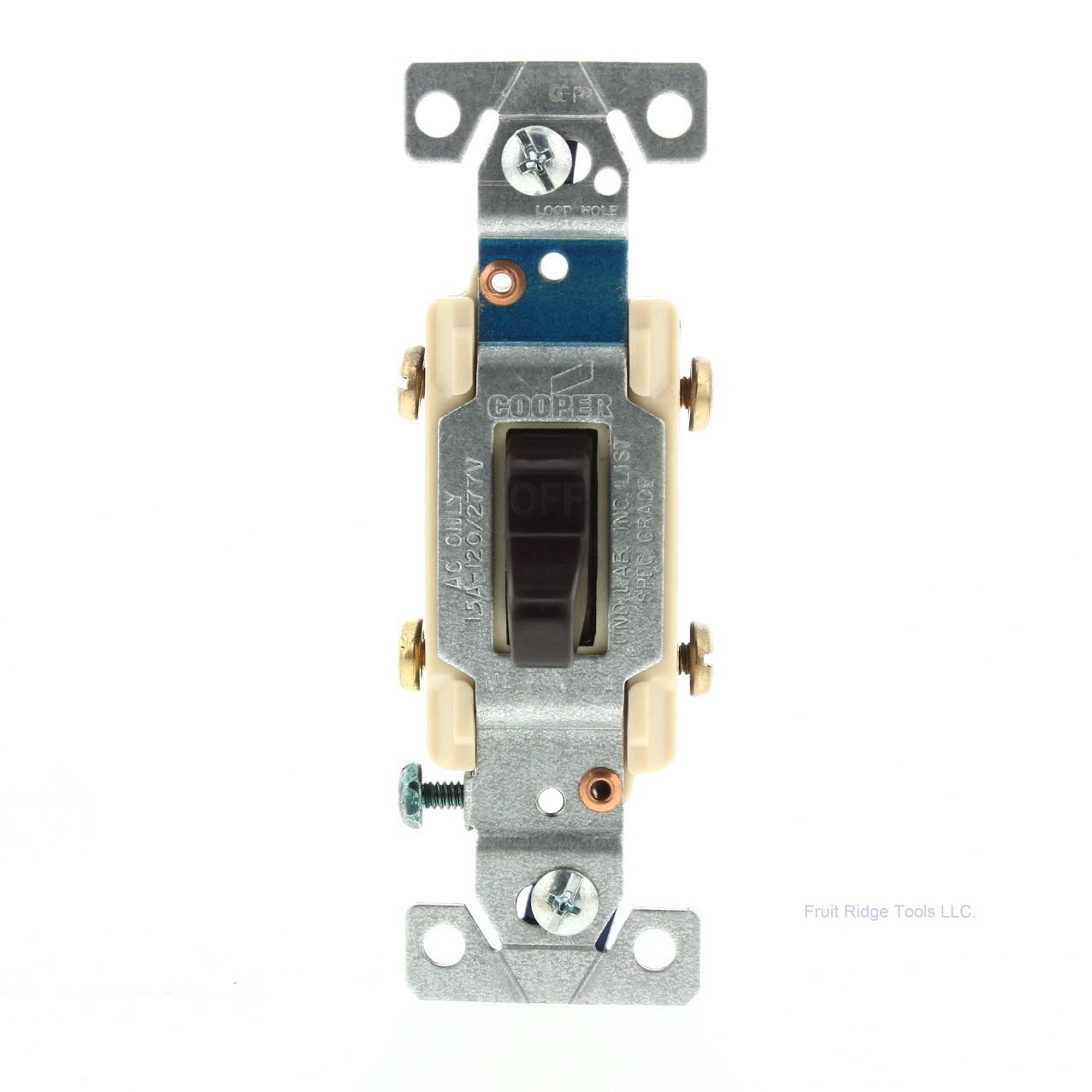

Cooper #1262-1B brown heavy duty toggle switch. The Cooper switch has a voltage rating of 120/277 volts and a current rating of 30 amps. Features a power rating of 1 hp at 240 volts and 2 hp at 240/277 volts. It operates in a range from -40 to 65 deg C and can withstand up to 30 deg C temperature rise. Industrial grade switch has a sturdy thermoplastic body and base for dimensional stability. Its provided with a convenient polycarbonate actuator. The switch is used in heavy-duty specification grade applications. It offers 14 - 12 AWG side-wiring and 14 - 10 AWG back wiring connection for convenient installation. It comes with 0.048-Inch thick rustproof, heavy gauge galvanized steel mounting strap. Each is individually packaged; packaging may differ from photos. Features include:
  • Positive switching action with center-OFF position
  • Large silver-cadmium oxide contacts for long life, prevent sticking, welding and excessive pitting
  • Clamp type terminals accept up to 10 AWG copper wire
  • Full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating
  • 12-14 Inch lb Torque, brass-hot, black-hot, white-neutral green-grounding terminals
  • Rated at 120/277 volts and 30 amps
  • Made of durable thermoplastic
  • Back and side wire terminal
  • Box mounting
  • Grounding configuration

MPN:
1262-1B
Cross Reference:
Not Available
Color:
Brown
Amperage:
30A

Condition:
New
UPC:
032664176005
Weight:
0.15 LBS
